911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above)

21 " Self-Propelled Walk-Behind Mower, CARB

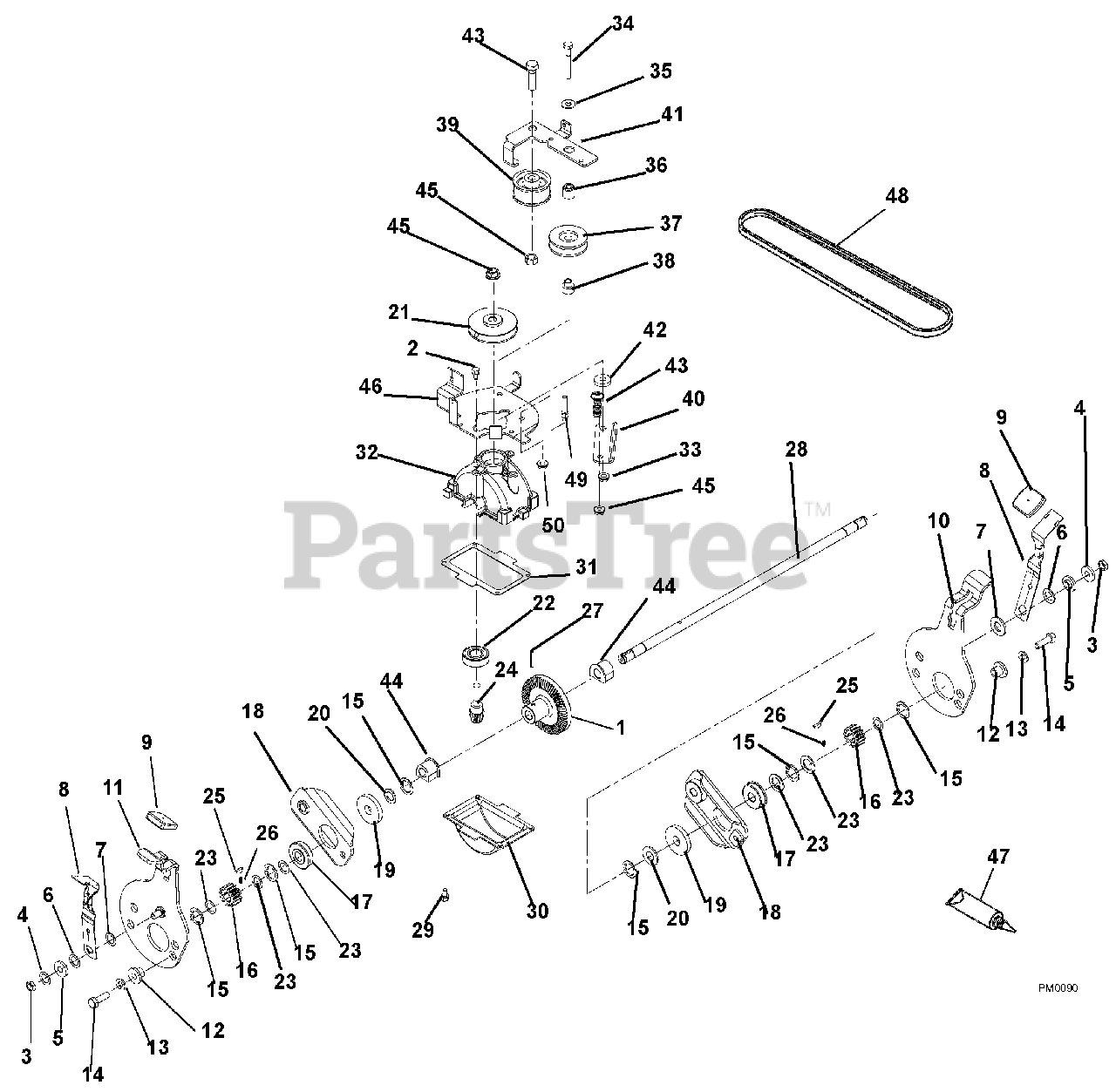

911214 (PRO 21 XD) - Ariens 21 " Self-Propelled Walk-Behind Mower, CARB (SN: 000101 & Above) > Parts Diagrams (6) > Transmission And Height Of Cut

  • Title
01255400

1

GEAR, REDUCTION

Part# 01255400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.66

07412100

2

@SCR-TAP 10-24X.375 HWH YZ TR

Part# 07412100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06529800

3

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06435700

4

@WSHR-FL-STL.38X.875X.083 YWZC

Part# 06435700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05513400

5

BSHG-FLG .265X.437X.250X.750

Part# 05513400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

06441100

6

WSHR-FL-STL .52X.827X.062 YWZC

Part# 06441100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06436100

7

WSHR-FL-STL .630X1.005X.062 YZ

Part# 06436100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01242000

8

LEVER, HEIGHT ADJUSTMENT

Part# 01242000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

07513600

9

KNOB

Part# 07513600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

00675400

10

WELDMT-DETENT SUPPORT RIGHT

Part# 00675400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

00675500

11

WELDMT-DETENT SUPPORT LEFT

Part# 00675500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

05514900

12

BSHG-FLG .325X.500X.513X.875

Part# 05514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

06308600

13

@WSHR-LK .31X.078 REG YWZC

Part# 06308600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05946900

14

@BLT-HEX .31-18X1.00 GR5 YWZC

Part# 05946900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05715600

15

RG-RTNG-EXT.50 X .034

Part# 05715600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00670700

16

PINION-WBLM DRIVE

Part# 00670700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05480000

17

BRG-BALL .50X1.38X.438 SEALED

Part# 05480000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

00661600

18

ARM,WHEEL MOUNT

Part# 00661600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06445000

19

WSHR-FL-STL .515X1.625X.250 YZ

Part# 06445000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06441900

20

@WSHR-FL-STL.531X1.06X.095YWZC

Part# 06441900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01255100

21

PULLEY, TRANS INPUT

Part# 01255100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.99

05435100

22

BRG-BALL .625X1.375X.43

Part# 05435100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

06400015

23

WASHER, .500X.750X.020 THRUST

Part# 06400015

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01255500

24

PINION, GEARBOX INPUT

Part# 01255500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06600004

25

KEY-WDRF .125X.50X.20 (HRDEND)

Part# 06600004

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

08300016

26

SPRING, .134X.180X.144 COMP.

Part# 08300016

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05802900

27*

PIN-ROLL .156X1.00

Part# 05802900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

00619700

28

SHAFT - TRANSMISSION OUTPUT

Part# 00619700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.08

07412100

29

@SCR-TAP 10-24X.375 HWH YZ TR

Part# 07412100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01255251

30

SUMP, GEARBOX

Part# 01255251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.83

01256400

31

GASKET, TRANSMISSION

Part# 01256400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.21

01255000

32

HOUSING, WBLM GEAR BOX

Part# 01255000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.08

06543500

33

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05952700

34

BLT-HEX .25-20X2.25 GR8 YWZC

Part# 05952700

OEM Warranty Repair Part for Ariens

Not available

06435800

35

@WSHR-FL-STL.312X.734X.065 YWZ

Part# 06435800

OEM Warranty Repair Part for Ariens

Not available

01259000

36

SPACER, IDLER ARM

Part# 01259000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

00444400

37

IDLER, 3L FRONT SIDE .38X1.875

Part# 00444400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.54

01258900

38

SPACER, V-IDLER PULLEY

Part# 01258900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.47

07326500

39

IDLER - FLAT 1.875OD X .75WIDE

Part# 07326500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $24.13

00613551

40

STRAP,TRANSMISSION

Part# 00613551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.11

01280500

41

ARM-TRANS IDLER

Part# 01280500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.58

06436200

42

@WSHR-FL-STL.406X.812X.065 YWZ

Part# 06436200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05958000

43

@BLT-HEX .38-16X1.25 GR5 YWZC

Part# 05958000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01255300

44

BUSHING, TRANS OUTPUT SHAFT

Part# 01255300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

06542000

45

@NUT-LK-TOP-FLG .38-16 YWZC

Part# 06542000 (Superseded to 06500822)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01257600

46

BRACKET, TRANSMISSION CONTROL

Part# 01257600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

00902700

47

LUBRICATE

Part# 00902700

OEM Warranty Repair Part for Ariens

Not available

07200114

48

V-BELT, 3L-WRAPPED

Part# 07200114

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $32.81

01265600

49

FINGER, BELT

Part# 01265600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

06530100

50

@NUT-SPNLK-FLG .25-20 YWZC

Part# 06530100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40
