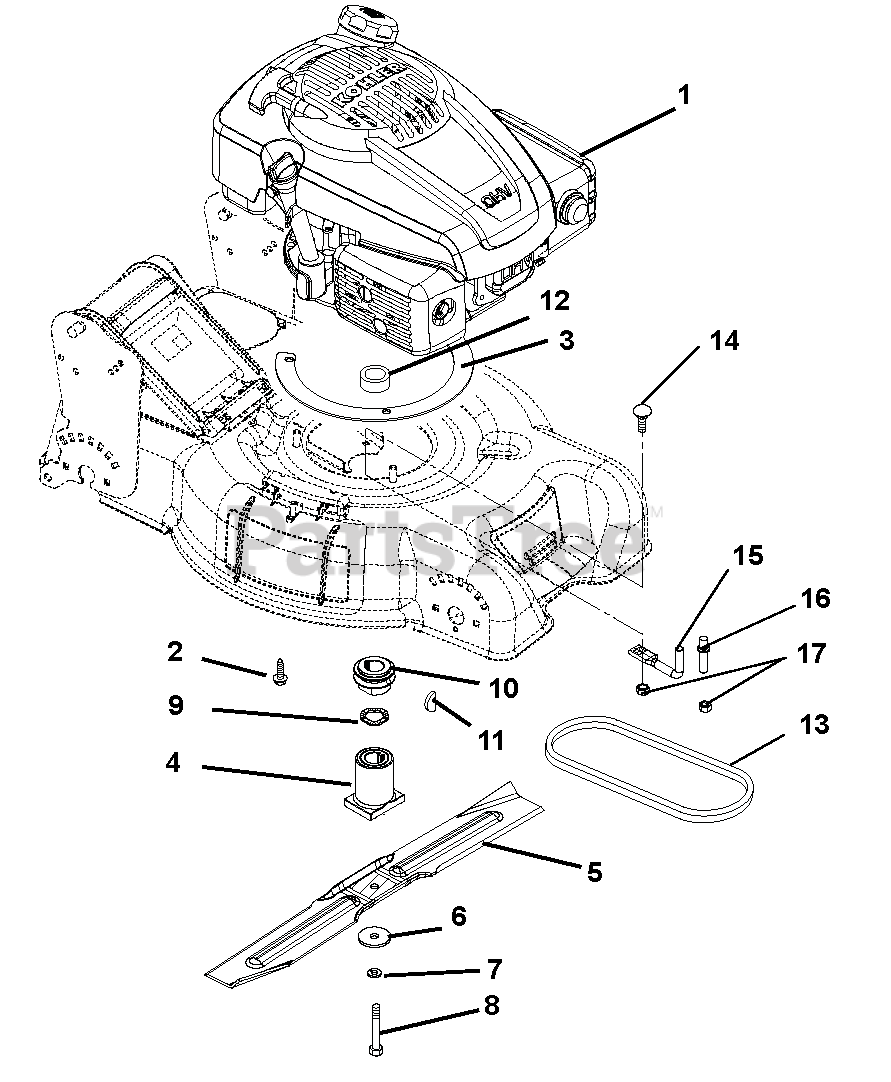

911220 (BRP 21) - Gravely Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7 (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 08200312

ENGINE, KOHLER XT-7 BASE

Note: (911220, 222)

$

$

Not available

Gravely 08200436

ENGINE, KOHLER XT-7 ELS

Note: (911226)

$

$

Not available

2

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 19

0

3

Gravely 01268100

RING, ENGINE BOLT

$

$

Not available

4

Gravely 09734700

ADAPTER, BLADE HUB

$

$

Not available

5

Gravely 01252100

21" MOWER BLADE

$

$

Not available

6

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

7

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05900029

BOLT, 3/8-24X2.5 G8

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 01192900

WASHER-WAVE .885X1.311X.125

$5.49

$

In Stock, only 2 left!

0

10

Gravely 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (911222, 226)

$17.99

$

Usually ships in 4-12 days

0

11

Gravely 06600900

KEY-WDRF .156X.625X.25 SAE 6

$2.49

$

In Stock, Qty 6

0

12

Gravely 05500002

SPACER, .875X1.125X.551

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 07200505

V-BELT, 3L-WRAPPED

$35.99

$

Usually ships in 4-12 days

0

14

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

15

Gravely 01265700

FINGER, BELT

$

$

Not available

16

Gravely 01265600

FINGER, BELT

$7.99

$

Usually ships in 4-12 days

0

17

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0
