911220 (BRP 21) - Gravely Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7 (SN: 000101 & Above) Wheels And Height Of Cut Parts Diagram

Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7

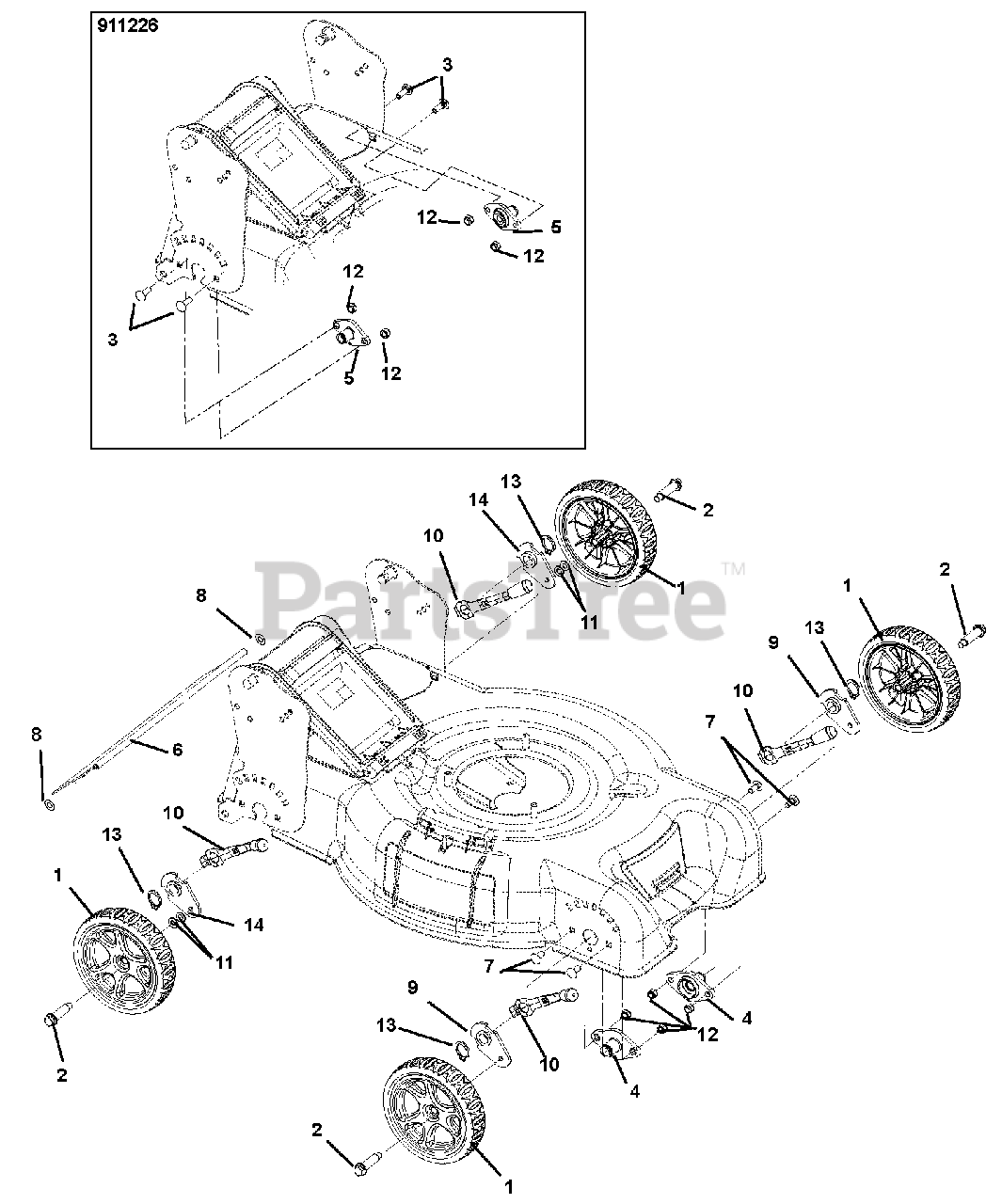

Wheels And Height Of Cut Parts Diagram

  • Title

1

Gravely 01266600

Wheel, 8.5" WBLM Assembly

$

$

Not available

2

Gravely 01265100

Bolt, Wheel Shoulder

$

$

Not available

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 01263000

Wheel Mount Hub (911220, 221)

Note: (911220, 221)

$46.99

$

Usually ships in 4-12 days

0

Gravely 01263000

Wheel Mount Hub (911222, 226)

Note: (911222, 226)

$46.99

$

Usually ships in 4-12 days

0

5

Gravely 51110700

Wheel Mount Hub (911222, 226)

Note: (911222, 226)

$80.99

$

Usually ships in 4-12 days

0

6

Gravely 01250900

Guard, WBLM

$11.99

$

Usually ships in 4-12 days

0

7

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

8

Gravely 00548400

Retainer, .38 Push-On

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 01268500

Plate, Front Wheel Mount

$29.99

$

In Stock, only 2 left!

0

10

Gravely 01266400

Height of Cut Lever

$36.99

$

Usually ships in 4-12 days

0

11

Gravely 06439900

Washer, Flat Steel .406 x .812 x .065 (911222, 226)

Note: (911222, 226)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05714600

Ring, Retaining - External .689 x .077

$2.99

$

In Stock, only 2 left!

0

14

Gravely 01268600

Plate, Rear Wheel Mount

$

$

Not available
