911221 (BRP 21) - Gravely Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7, CARB (SN: 000101 & Above) Mower Deck And Bagger Parts Diagram

Blade Runner 21" Push Walk-Behind Mower, Kohler XT-7, CARB

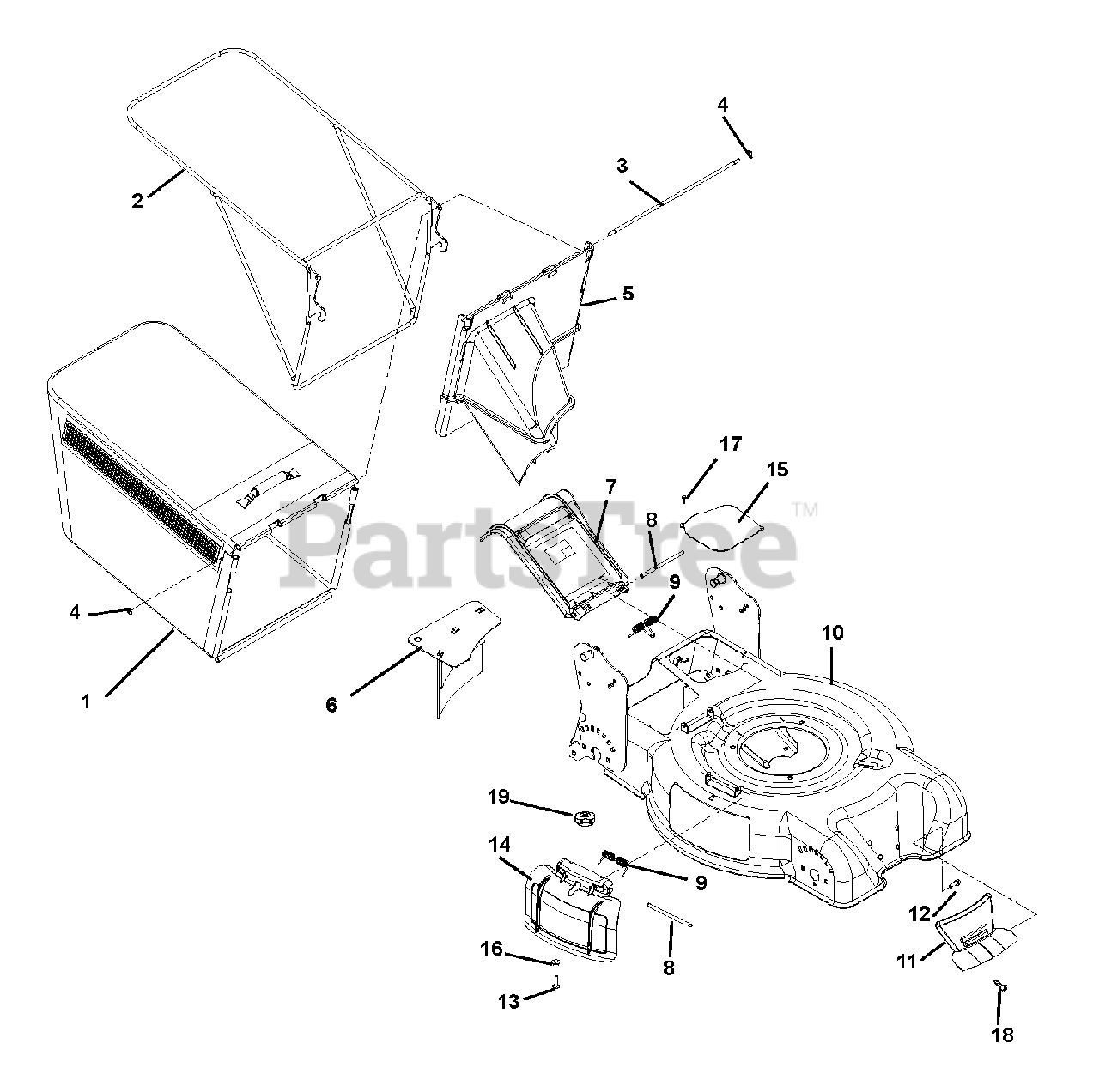

Mower Deck And Bagger Parts Diagram

  • Title

1

Gravely 01285700

Bagger, Gravely WBLM (911222, 3, 4)

Note: (911222, 3, 4)

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 01278551

Frame, Bagger (911222, 223, 224)

Note: (911222, 223, 224)

$91.99

$

Usually ships in 4-12 days

0

3

Gravely 01253200

Rod, Hinge (911222, 223, 224)

Note: (911222, 223, 224)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 07027600

Nut, Push .25 x .50 O.D. (911222, 223, 224)

Note: (911222, 223, 224)

$2.49

$

In Stock, Qty 11

0

5

Gravely 01253400

Bagger Door (911222, 3, 4)

Note: (911222, 3, 4)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 01268051

Mulch Plug

$83.99

$

Usually ships in 4-12 days

0

7

Gravely 01251400

Rear Discharge Cover

$

$

Not available

8

Gravely 01260900

Pin, Hinge

$19.99

$

Usually ships in 4-12 days

0

9

Gravely 08300035

Spring, Torsion

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 01253053

21" Deck Weldment

$

$

Not available

11

Gravely 01264100

Grill Insert

$

$

Not available

12

Gravely 07400011

Screw, Tapping 12-12 x .75

$

$

Not available

13

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 01260500

Mulch Cover

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 01262351

Cover, Transmission Access

$19.99

$

Usually ships in 4-12 days

0

16

Gravely 07027600

Pushnut

$2.49

$

In Stock, Qty 11

0

17

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head Thread Rolling (911220, 221, 222, 223

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 07400012

Screw, Self Drill/Tap

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 07500011

Knob, Clamping, .250-20 Nyloc

$

$

Not available
