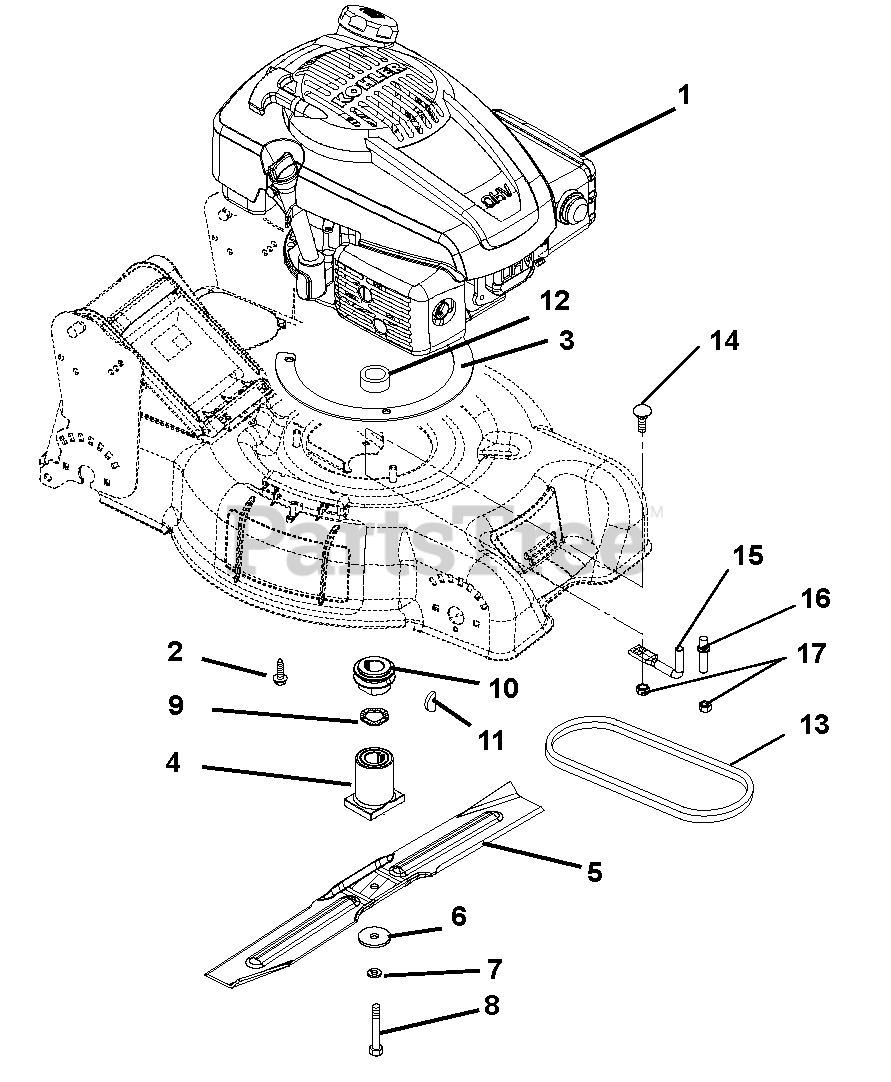

911222 (BRSP 21) - Gravely Blade Runner 21" Walk-Behind Mower, Kohler XT-7 (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

Blade Runner 21" Walk-Behind Mower, Kohler XT-7

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 08200312

Engine, Kohler XT-7(911220, 222)

Note: (911220, 222)

$

$

Not available

Gravely 08200436

Engine, Kohler XT-7 ELS (911226)

Note: (911226)

$

$

Not available

2

Gravely 07414100

Screw, Tapping .38-16X1.00 Hex Washer Head
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

3

Gravely 01268100

Ring, Engine Bolt

$

$

Not available

4

Gravely 09734700

Adapter, Blade Hub

$

$

Not available

5

Gravely 01252100

21" Mower Blade

$

$

Not available

6

Gravely 06441700

Washer, Flat Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 3 left!

0

7

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

8

Gravely 05900029

Bolt, .38-24 x 2.5 Grade 8

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 01192900

Washer, Wave .885 x 1.311 x .125

$4.99

$

In Stock, Qty 7

0

10

Gravely 09733100

Pulley, Sintered Iron LM (911222, 226)
(Superseded to 04851300)

Note: (911222, 226)

$16.99

$

Usually ships in 4-12 days

0

11

Gravely 06600900

Key, Woodruff .156 x .625 x .25

$2.49

$

In Stock, only 2 left!

0

12

Gravely 05500002

Spacer, .875 x 1.125 x .551

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 07200505

Belt, 3L Wrapped 37.00"

$32.99

$

In Stock, only 1 left!

0

14

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

15

Gravely 01265700

Finger, Belt

$19.99

$

Usually ships in 4-12 days

0

16

Gravely 01265600

Finger, Belt

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0
