911223 (BRSP 21) - Gravely Blade Runner 21" Walk-Behind Mower, Kohler, CARB (SN: 000101 & Above) Mower Deck And Bagger Parts Diagram

Blade Runner 21" Walk-Behind Mower, Kohler, CARB

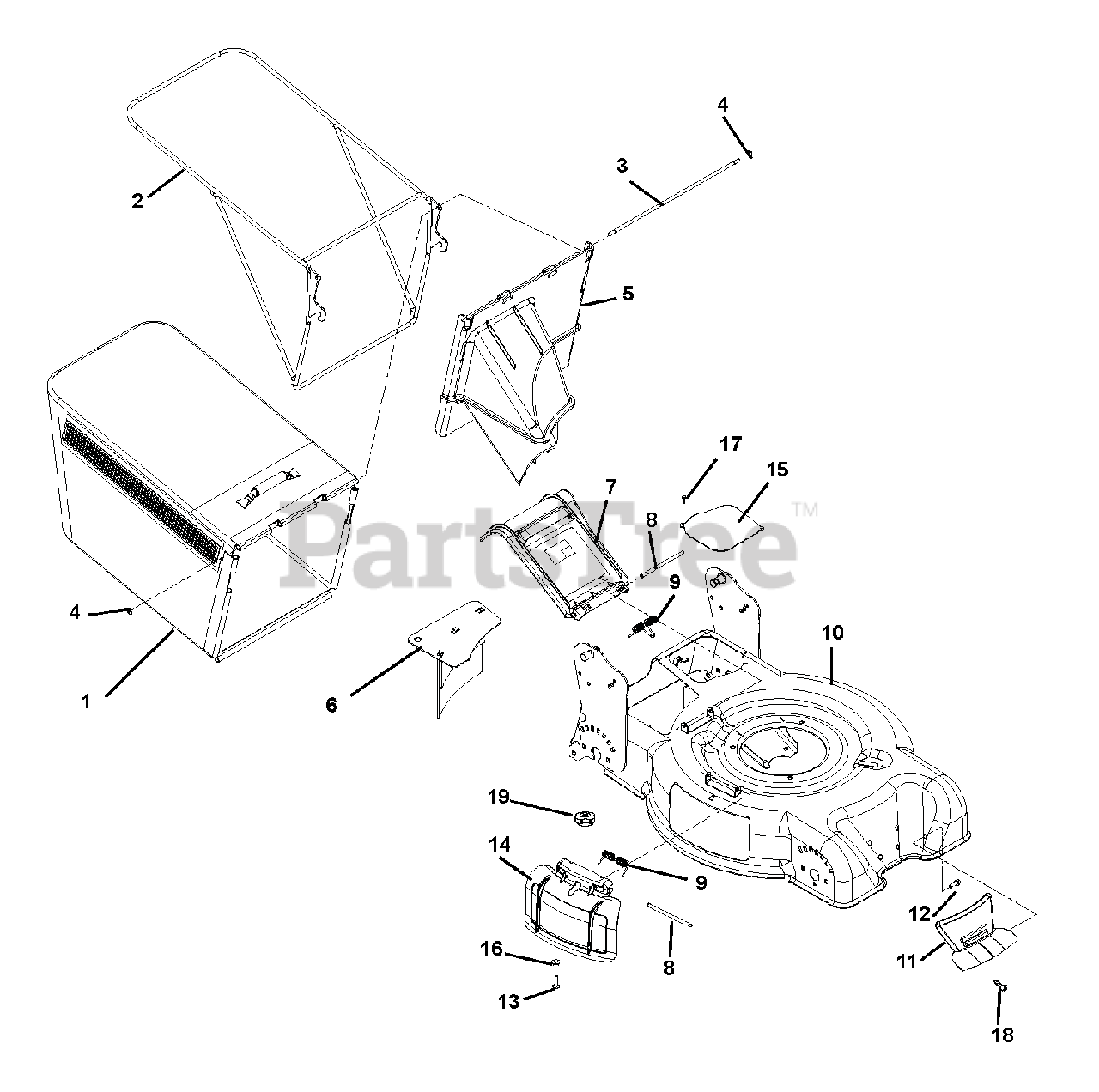

Mower Deck And Bagger Parts Diagram

  • Title

1

Gravely 01285700

WBLM, GRAVELY BAGGER

Note: (911222, 3, 4)

$54.99

$

Usually ships in 4-12 days

0

2

Gravely 01278551

BAGGER FRAME

Note: (911222, 223, 224)

$

$

Not available

3

Gravely 01253200

ROD, HINGE

Note: (911222, 223, 224)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 07027600

NUT-PUSH .25X.50 O.D.

Note: (911222, 223, 224)

$2.49

$

In Stock, Qty 10

0

5

Gravely 01253400

BAGGER DOOR

Note: (911222, 3, 4)

$24.99

$

Usually ships in 4-12 days

0

6

Gravely 01268051

PLUG, MULCH (STEEL)

$85.99

$

Usually ships in 4-12 days

0

7

Gravely 01251400

REAR DISCHARGE COVER

$

$

Not available

8

Gravely 01260900

PIN, HINGE

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 08300035

TORSION SPRING

$15.99

$

Usually ships in 4-12 days

0

10

Gravely 01253053

21" DECK WELDMENT

$

$

Not available

11

Gravely 01264100

GRILL INSERT

$

$

Not available

12

Gravely 07400011

SCR-TAP 12-12X.75 HI-LOW YZ

$

$

Not available

13

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 01260500

MULCH COVER

$

$

Not available

15

Gravely 01262351

COVER, TRANSMISSION ACCESS

$20.99

$

Usually ships in 4-12 days

0

16

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 10

0

17

Gravely 07412100

SCR-TAP 10-24X.375 HWH YZ TR

$0.99

$

Usually ships in 4-12 days

0

18

Gravely 07400012

SCREW, SELF DRILL/TAP

$3.99

$

Usually ships in 4-12 days

0

19

Gravely 07500011

KNOB-CLAMPING, .250-20 NYLOC

$

$

Not available
