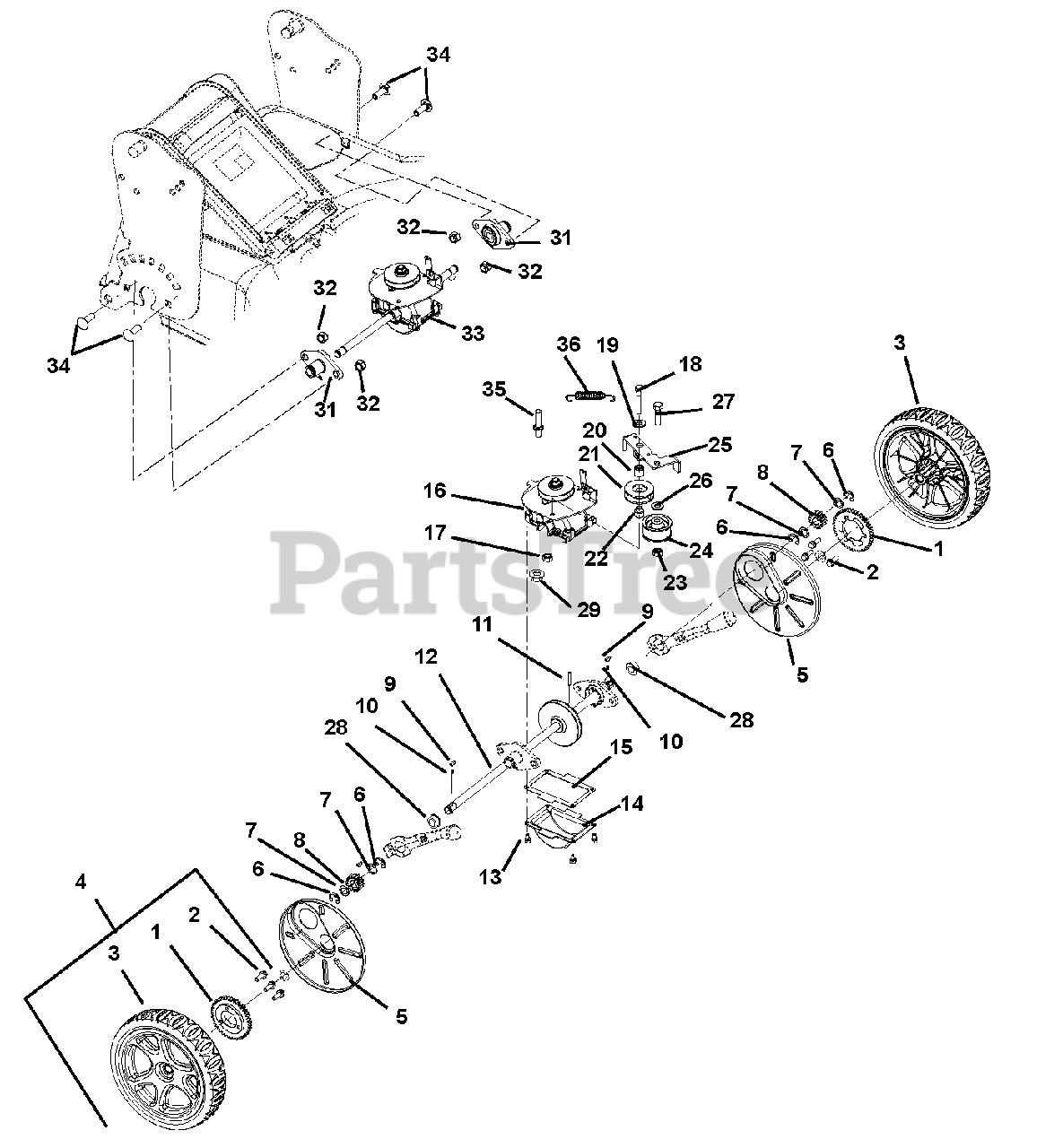

911226 (BRSPE 21) - Gravely Blade Runner 21" Walk-Behind Mower, Kohler XT-7 (SN: 000101 & Above) Transmission And Height Of Cut Parts Diagram

Blade Runner 21" Walk-Behind Mower, Kohler XT-7

Transmission And Height Of Cut Parts Diagram

  • Title

1

Gravely 01291000

Gear, Wheel (Order as part of kit 51111000. See item 4.)

Note: (Order as part of kit 51111000. See item 4.)

$19.99

$

In Stock, Qty 20+

0

2

Gravely 07400008

Screw, Tapping .25-15x.75 Hi-Lo Hex Washer Head (Order as part of kit 51111000. See item 4.)
(Superseded to 07400106)

Note: (Order as part of kit 51111000. See item 4.)

$2.99

$

In Stock, only 1 left!

0

3

Gravely 01266600

Wheel (Order as part of kit 51111000. See item 4.)

Note: (Order as part of kit 51111000. See item 4.)

$

$

Not available

4

Gravely 51111000

Kit, Assembly, LM Rear Wheel (Contains items 1, 2 and 3)

Note: (Contains items 1, 2 and 3)

$

$

Not available

5

Gravely 01263300

Wheel Cover

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 05710200

Ring, Retaining External .500 x .042

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00670700

Pinion, WBLM Drive

$9.99

$

In Stock, Qty 12

0

9

Gravely 06600004

Key, Woodruff .125 x .50 x .20

$2.99

$

In Stock, Qty 15

0

10

Gravely 08300016

Spring, .134 x .186 x .144 Compression

$3.99

$

In Stock, Qty 14

0

11

Gravely 05802900

Pin, Roll .156 x 1.00

$0.99

$

In Stock, Qty 16

0

12

Gravely 01255700

Shaft, Transmission Output

$

$

Not available

13

Gravely 07412100

Screw, Tapping 10-24 x .375 Hex Washer Head

$0.99

$

Usually ships in 4-12 days

0

14

Gravely 01255251

Sump, Gearbox

$40.99

$

Usually ships in 4-12 days

0

15

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

16

Gravely 51112900

Kit, WBLM Transmission Housing

$

$

Not available

17

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 11

0

18

Gravely 05967100

Bolt, Hex .25-20 x 2.00 Grade 5
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

19

Gravely 06435800

Washer, Flat Steel .328 x 1.0 x .094
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01259000

Spacer, .390 x .75 x .189

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$23.99

$

In Stock, only 2 left!

0

22

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 06529600

Nut, Locking Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 07326500

Idler, Flat 1.875 OD x .75 Wide

$26.99

$

In Stock, Qty 6

0

25

Gravely 01258000

Arm, Transmission Idler

$

$

Not available

26

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05900021

Bolt, Hex .38-16 x 1.38 Grade 5

$

$

Not available

28

Gravely 01255300

Bushing, Transmission Output Shaft

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 06530100

Nut, Locking Flange .250-20
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 01257600

Bracket, Transmission Control

$

$

Not available

31

Gravely 51110700

Kit, Wheel Mount Hub Service

$80.99

$

Usually ships in 4-12 days

0

32

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 51112800

Kit, Transmission Service

$

$

Not available

34

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 01265600

Belt, Finger

$7.99

$

Usually ships in 4-12 days

0

36

Gravely 08325200

Spring, Tension .051 x .60 x 2.25

$6.49

$

In Stock, only 1 left!

0
