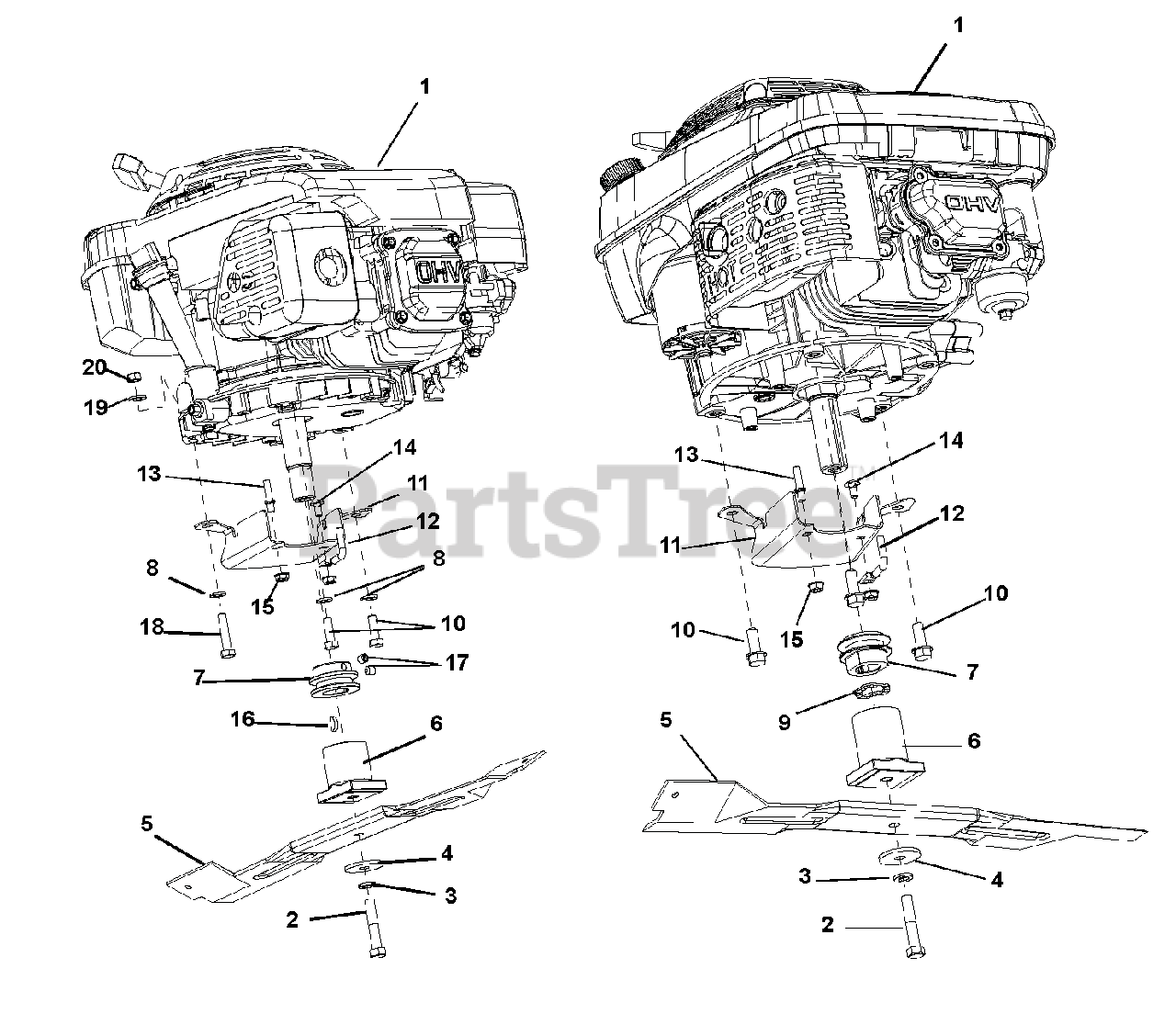

911250 (PRO 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Self-Propelled Walk-Behind Mower, 5.5hp Honda

Engine, Blade And Belt Parts Diagram

  • Title

1

Ariens 08200048

6.0 HP KAWI U.S. COMMERICIAL

Note: (911252)

$

$

Not available

1

Ariens 08270500

ENGINE - HONDA 5.5 HP OHV

Note: (911250)

$

$

Not available

2

Ariens 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 4 left!

0

3

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

4

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

5

Ariens 01137000

21" MOWER BLADE

$25.99

$

In Stock, Qty 20+

0

6

Ariens 09735100

ADAPTER, CE BLADE

Note: (911252)

$46.99

$

Usually ships in 4-12 days

0

6

Ariens 09733300

ADAPTER - BLADE HUB

Note: (911250)

$40.99

$

Usually ships in 4-12 days

0

7

Ariens 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

Note: (911252)

$17.99

$

Usually ships in 4-12 days

0

7

Ariens 09733400

PULLEY - UNV DRIVE - STEEL

Note: (911250)

$105.99

$

Usually ships in 4-12 days

0

8

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (911250)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01192900

WASHER-WAVE .885X1.311X.125

Note: (911252)

$5.49

$

In Stock, Qty 6

0

10

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (911252)

$3.99

$

In Stock, Qty 16

0

10

Ariens 05963600

BLT-HEX .31-24X1.00 GR5 YWZC

Note: (911250)

$2.99

$

Usually ships in 4-12 days

0

11

Ariens 00656451

GUIDE-BELT

$

$

Not available

12

Ariens 01265700

FINGER, BELT

$

$

Not available

13

Ariens 01265600

FINGER, BELT

$7.99

$

Usually ships in 4-12 days

0

14

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06600900

KEY-WDRF .156X.625X.25 SAE 6

Note: (911250)

$2.49

$

In Stock, Qty 11

0

17

Ariens 06005500

SCR-SET .31-18X.38 SKHCUPDL

Note: (911250)

$3.49

$

In Stock, only 2 left!

0

18

Ariens 05963500

BLT-HEX .31-24X1.50 GR5 YWZC

Note: (911250)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

Note: (911250)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

Note: (911250)

$2.49

$

Usually ships in 4-12 days

0
