911251 (PRO 21 XD) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Mower Deck And Bagger Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

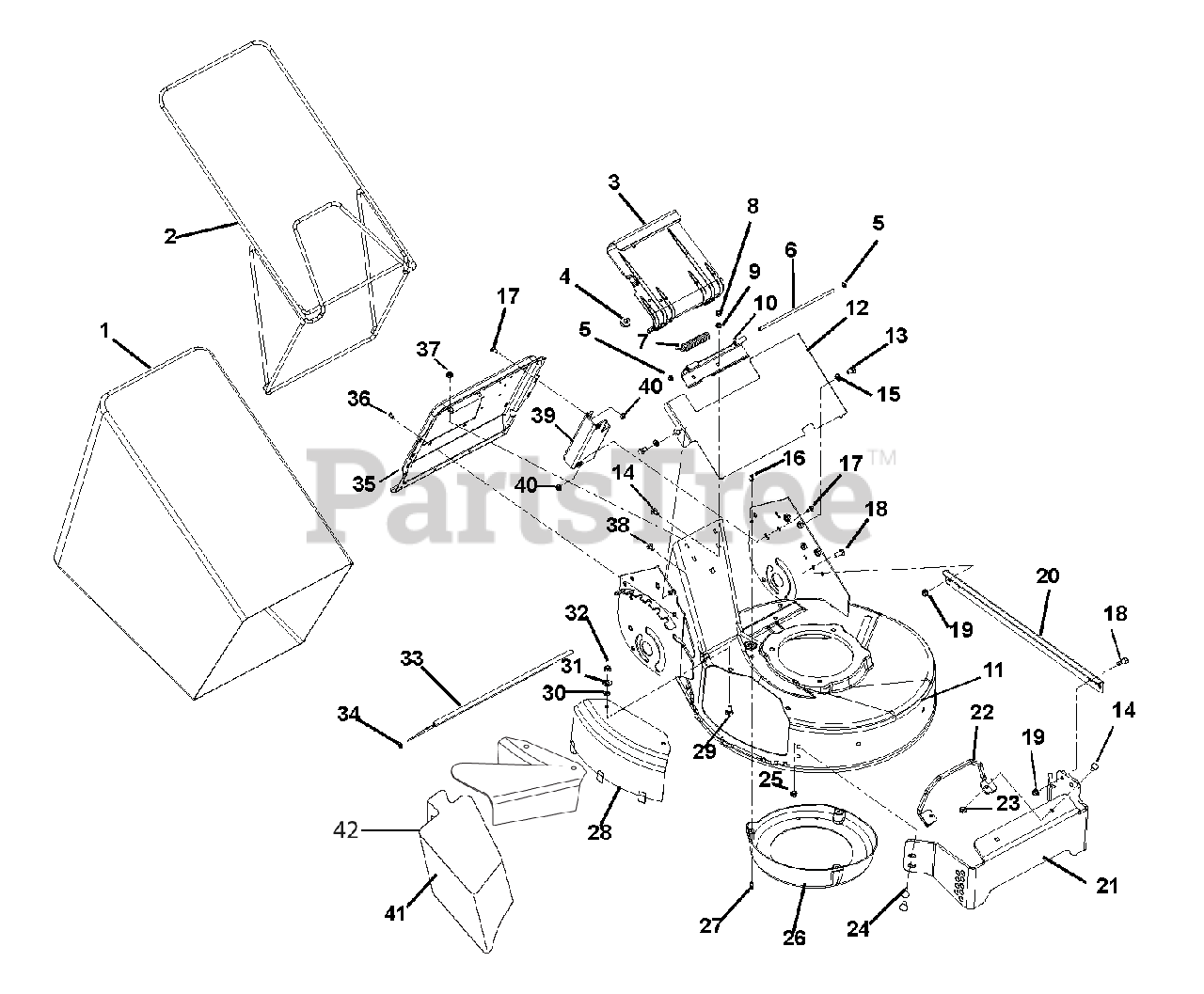

Mower Deck And Bagger Parts Diagram

  • Title

1

Gravely 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$124.99

$

In Stock, only 2 left!

0

2

Gravely 01241800

FRAME, WBLM BAGGER

$

$

Not available

3

Gravely 01136553

CATCHER PLATE DOOR

$

$

Not available

4

Gravely 07516000

BUTTON BUMPER

$1.99

$

In Stock, Qty 10

0

5

Gravely 02215300

PUSH NUT, .25

$2.99

$

In Stock, Qty 8

0

6

Gravely 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 08322400

SG-TORS .120X.68X3.09

$7.99

$

Usually ships in 4-12 days

0

8

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.49

$

In Stock, Qty 10

0

9

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$1.49

$

In Stock, Qty 7

0

10

Gravely 01138200

HINGE BASE
(Superseded to 01138259)

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 00654053

CHASSIS,PRO 21 XD

$

$

Not available

12

Gravely 00615653

COVER
(Superseded to 51112000)

$

$

Not available

13

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 07507600

PLASTIC GROMMET

$1.49

$

In Stock, Qty 9

0

17

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00663853

ANGLE-SUPPORT

$

$

Not available

21

Gravely 00618653

BUMPER,PRO 21"

$

$

Not available

22

Gravely 00663853

ANGLE-SUPPORT

$

$

Not available

23

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

26

Gravely 01173700

CENTER BAFFLE

$48.99

$

Usually ships in 4-12 days

0

27

Gravely 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 01180351

COVER, SIDE DISCHARGE

$49.99

$

In Stock, only 2 left!

0

29

Gravely 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$3.49

$

In Stock, Qty 20+

0

30

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, only 4 left!

0

31

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

32

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.99

$

In Stock, Qty 5

0

33

Gravely 00677800

TRAILING SHIELD

$38.99

$

Usually ships in 4-12 days

0

34

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, only 4 left!

0

35

Gravely 01159753

CATCHER PLATE

$100.99

$

Usually ships in 4-12 days

0

36

Gravely 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$4.99

$

Usually ships in 4-12 days

0

37

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 00612453

BKT,BAGGER SUPPORT

$

$

Not available

40

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 71102700

MULCH MASTER MULCHER ACCESSORY

$52.99

$

In Stock, only 2 left!

0

42

Gravely 01180200

SIDE DISCHARGE ASSEMBLY

$38.99

$

In Stock, Qty 5

0
