911252 (PRO 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Wheels Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

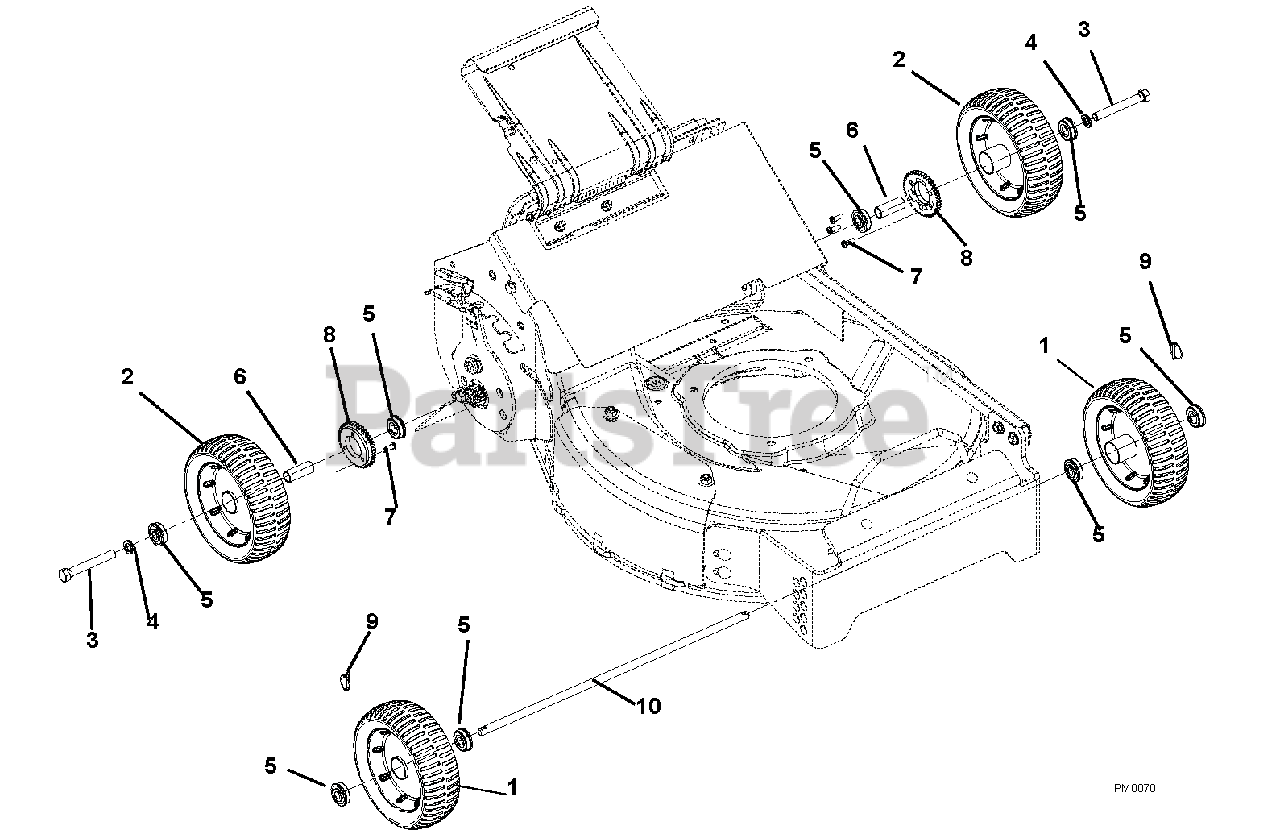

Wheels Parts Diagram

  • Title
1

Ariens 07100126

WHEEL ASSY,8.25X2.75 FRONT

Note: (Includes item 5)

$73.73

$

Usually ships in 4-12 days

0

2

Ariens 07100127

WHEEL ASSY,8.25X2.75 REAR

Note: (Includes items 5 and 6)

$160.48

$

In Stock, only 3 left!

0

3

Ariens 05960100

@BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$5.53

$

In Stock, only 3 left!

0

4

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$3.08

$

In Stock, Qty 14

0

5

Ariens 05415000

BRG-BALL .500X1.38X.437

$8.89

$

Usually ships in 4-12 days

0

6

Ariens 00611800

SPACER,WHEEL

$

$

Not available

7

Ariens 07430000

SCR-TAP 1/4-20X3/4 LPAN TL BZ

$2.46

$

Usually ships in 4-12 days

0

8

Ariens 01296500

GEAR, WHEEL

$29.01

$

In Stock, only 2 left!

0

9

Ariens 07014500

PIN-KLIK 1.000X.188X1.25 YWZC

$5.53

$

Usually ships in 4-12 days

0

10

Ariens 00668800

AXLE SHAFT

$13.47

$

Usually ships in 4-12 days

0
