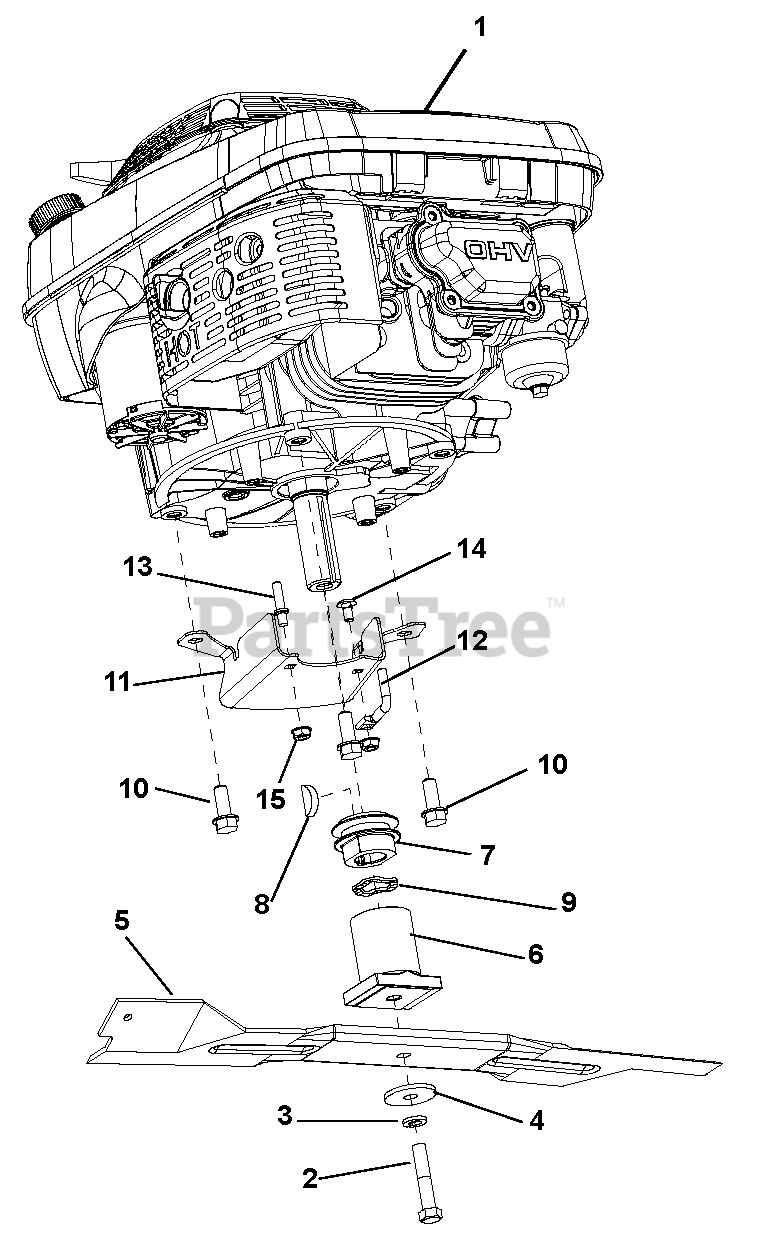

911270 (XD 21) - Gravely 21" Walk-Behind Mower 6hp Kawasaki (SN: 000101 & Above) Engine, Blade and Belt Parts Diagram

21" Walk-Behind Mower 6hp Kawasaki

Engine, Blade and Belt Parts Diagram

  • Title

1

Gravely 08200532

Engine, KAWI FJ180V Commercial (911270)

Note: (911270)

$

$

Not available

Gravely 08200702

Engine, Honda GSV (911273)

Note: (911273)

$

$

Not available

2

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, Qty 6

0

Gravely 05963500

Bolt, Hex .31-24 x 1.50 (911273)

Note: (911273)

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0

Gravely 06308600

Washer, Locking .31 x .078 Regular (911273)
(Superseded to 06300119)

Note: (911273)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06441700

Washer, Flat, Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 3 left!

0

Gravely 06437200

Washer, Flat, Steel .344 x .688 x .065 (911273)
(Superseded to 06401017)

Note: (911273)

$0.99

$

In Stock, Qty 9

0

5

Gravely 01137000

21" Mower Blade

$23.99

$

In Stock, Qty 16

0

6

Gravely 09735100

Adapter, CE Blade (911270)

Note: (911270)

$45.99

$

Usually ships in 4-12 days

0

Gravely 04330500

Weldment, Blade Adapter Drive Pulley (911273)

Note: (911273)

$

$

Not available

7

Gravely 09733100

Pulley, Sintered Iron LM (911270)
(Superseded to 04851300)

Note: (911270)

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 06600900

Key, Woodruff .156 x .625 x .25 SAE6 G106750 (911270)

Note: (911270)

$2.49

$

In Stock, only 2 left!

0

Gravely 06603400

Key, Square .25 x 1.25 x .25 SAE 8630 or SAE 1035 (911273)

Note: (911273)

$3.99

$

In Stock, only 1 left!

0

9

Gravely 01192900

Washer, Wave .885 x 1.311 x .125 (911270)

Note: (911270)

$4.99

$

In Stock, Qty 7

0

10

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread (911270)
(Superseded to 07417500)

Note: (911270)

$3.99

$

In Stock, Qty 20+

0

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread (911273)
(Superseded to 07417500)

Note: (911273)

$3.99

$

In Stock, Qty 20+

0

11

Gravely 01279751

Channel, XD21 Front Belt

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 01265700

Finger, Belt

$19.99

$

Usually ships in 4-12 days

0

13

Gravely 01265600

Finger, Belt

$7.49

$

Usually ships in 4-12 days

0

14

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

15

Gravely 06530100

Nut, Locking, Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

Gravely 06529500

Nut, Hex .312-24 (911273)
(Superseded to 06500939)

Note: (911273)

$1.99

$

Usually ships in 4-12 days

0
