911273 (XD 21) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Handlebar and Controls Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

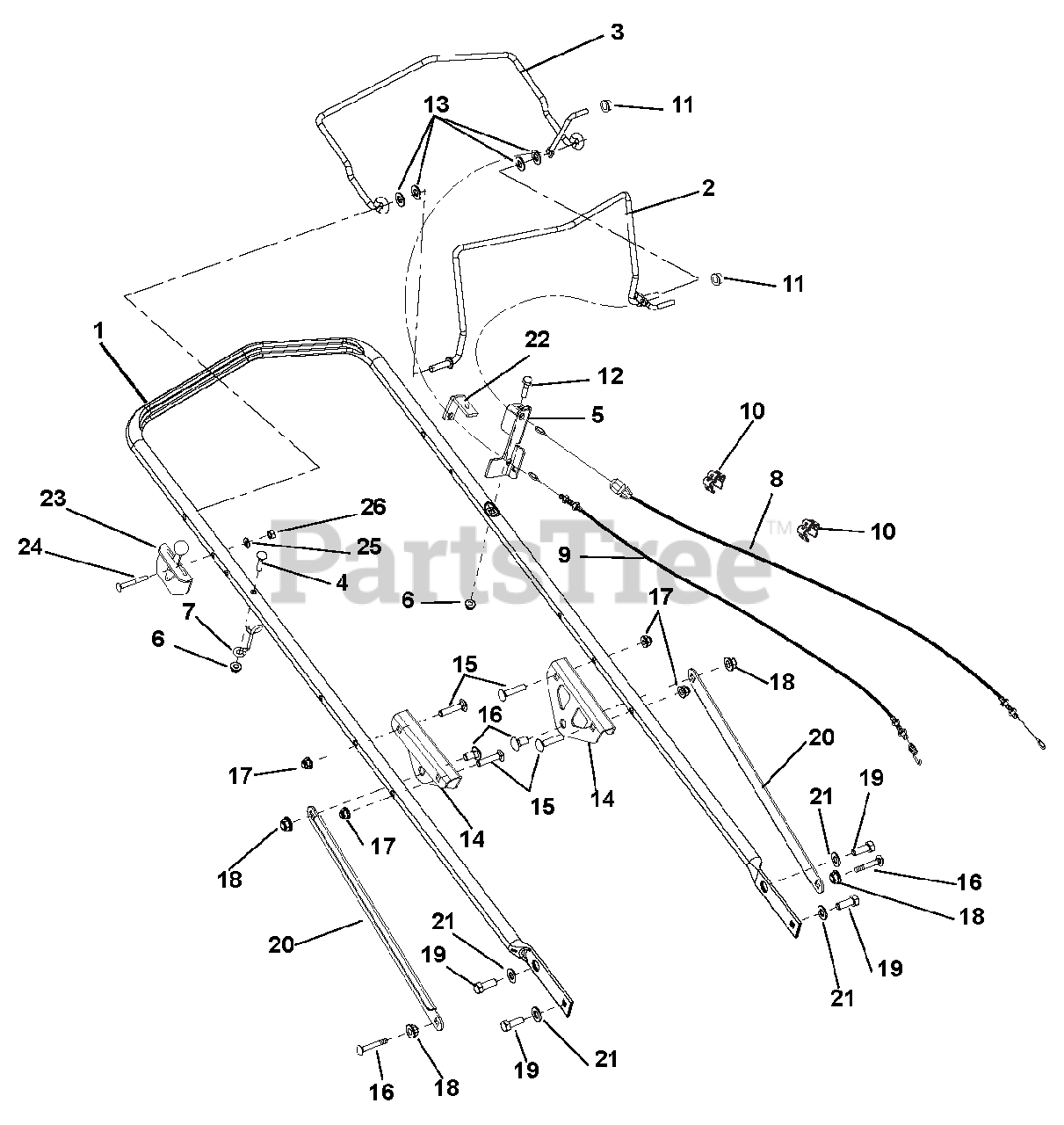

Handlebar and Controls Parts Diagram

  • Title

1

Gravely 04057851

HANDLEBAR, XD21 - 2010

$

$

Not available

2

Gravely 03997851

WLDMT, OPC BAIL - COMM 21

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 03997951

WLDMT, TRACTION BAIL - COMM 21

$61.99

$

Usually ships in 4-12 days

0

4

Gravely 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5YZ

$2.99

$

In Stock, Qty 9

0

5

Gravely 01256251

ANCHOR, CABLE
(Superseded to 03882351)

$22.99

$

Usually ships in 4-12 days

0

6

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

7

Gravely 04642100

GUIDE - PULLCORD

$52.99

$

Usually ships in 4-12 days

0

8

Gravely 01292500

CABLE, ENGINE - ADJUSTABLE

$44.99

$

In Stock, Qty 5

0

9

Gravely 04061100

CABLE, COMMERCIAL 21 TRACTION

$67.99

$

Usually ships in 4-12 days

0

10

Gravely 07539300

CONDUIT CLIP

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 11

0

12

Gravely 05947400

BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$2.49

$

In Stock, only 2 left!

0

13

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00980051

BRKT, HANDLEBAR REINFORCEMENT

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

16

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

17

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

20

Gravely 00612751

STRAP,HANDLEBAR

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04230851

BRKT, PTO CABLE - HONDA XD

Note: (911273)

$

$

Not available

23

Gravely 06900101

CABLE- LM THROTTLE

Note: (911273)

$62.99

$

Usually ships in 4-12 days

0

24

Gravely 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

Note: (911273)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 06442300

WSHR-FL-STL.250X.56X.049 YWZC

Note: (911273)

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 06529700

NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

Note: (911273)

$0.99

$

In Stock, Qty 20+

0
