911281 (PRO 21) - Ariens 21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki (SN: 000101 & Above) Handlebar And Controls Parts Diagram

21" Self-Propelled Walk-Behind Mower, 6hp Kawasaki

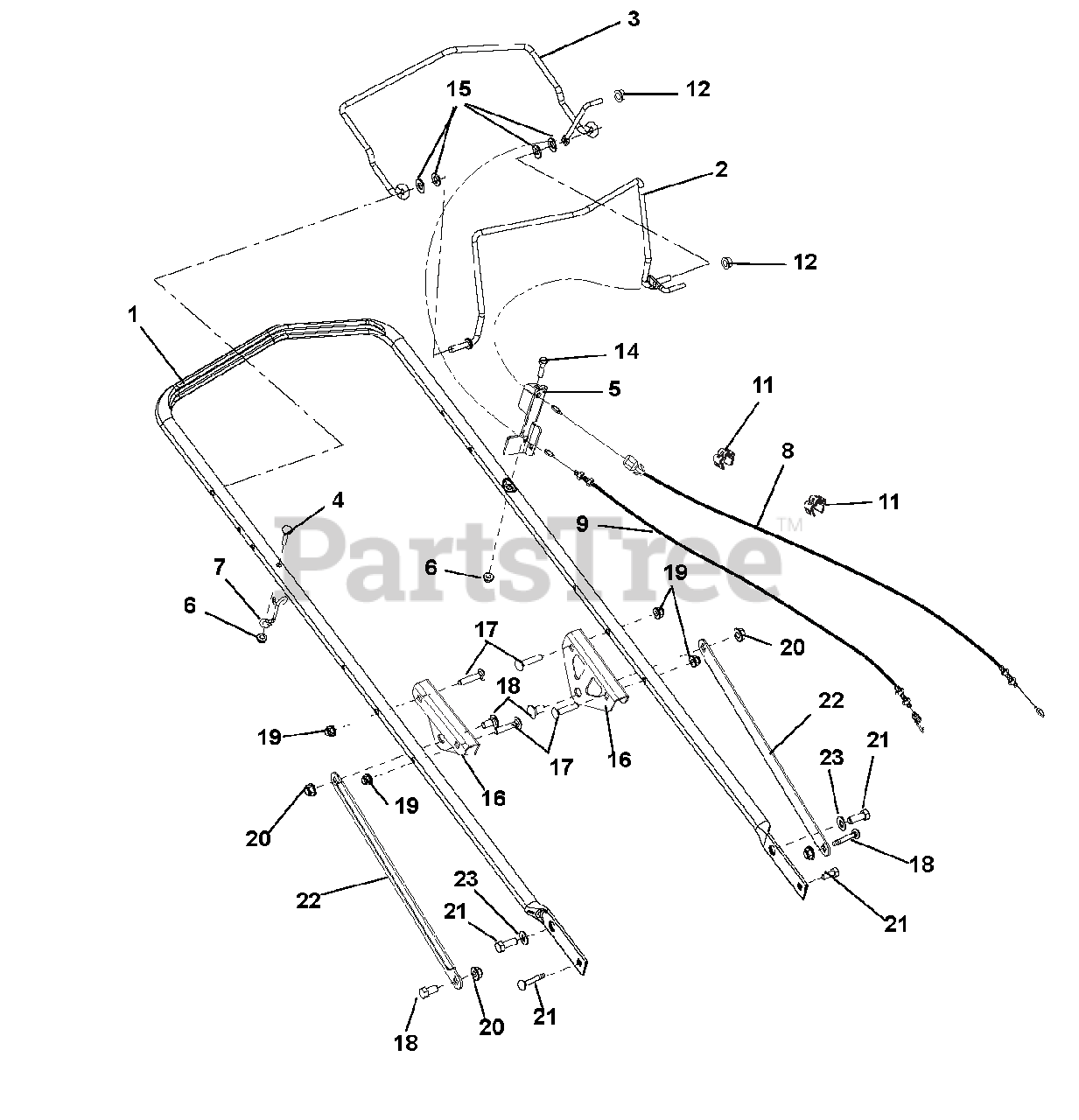

Handlebar And Controls Parts Diagram

  • Title

1

Ariens 04057851

HANDLEBAR, XD21 - 2010

$

$

Not available

2

Ariens 03997851

WLDMT, OPC BAIL - COMM 21

$54.99

$

Usually ships in 4-12 days

0

3

Ariens 03997951

WLDMT, TRACTION BAIL - COMM 21

$60.99

$

Usually ships in 4-12 days

0

4

Ariens 06220100

BLT-RDHDXLSQNK.25-20X1.25 G5ZC

$2.49

$

In Stock, only 2 left!

0

5

Ariens 01256251

ANCHOR, CABLE
(Superseded to 03882351)

$21.99

$

Usually ships in 4-12 days

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 6

0

7

Ariens 04642100

GUIDE - PULLCORD

$51.99

$

Usually ships in 4-12 days

0

8

Ariens 01292500

CABLE, ENGINE - ADJUSTABLE

$42.99

$

In Stock, only 1 left!

0

9

Ariens 04061100

CABLE, COMMERCIAL 21 TRACTION

$60.99

$

Usually ships in 4-12 days

0

10

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 19

0

11

Ariens 07539300

CONDUIT CLIP

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 17

0

13

Ariens 00581051

PLATE,HINGE

$

$

Not available

14

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

Usually ships in 4-12 days

0

15

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, only 3 left!

0

16

Ariens 00980051

BRKT, HANDLEBAR REINFORCEMENT

$6.49

$

Usually ships in 4-12 days

0

17

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 10

0

18

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 2 left!

0

19

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 1 left!

0

22

Ariens 00612751

STRAP,HANDLEBAR

$9.49

$

Usually ships in 4-12 days

0

23

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
