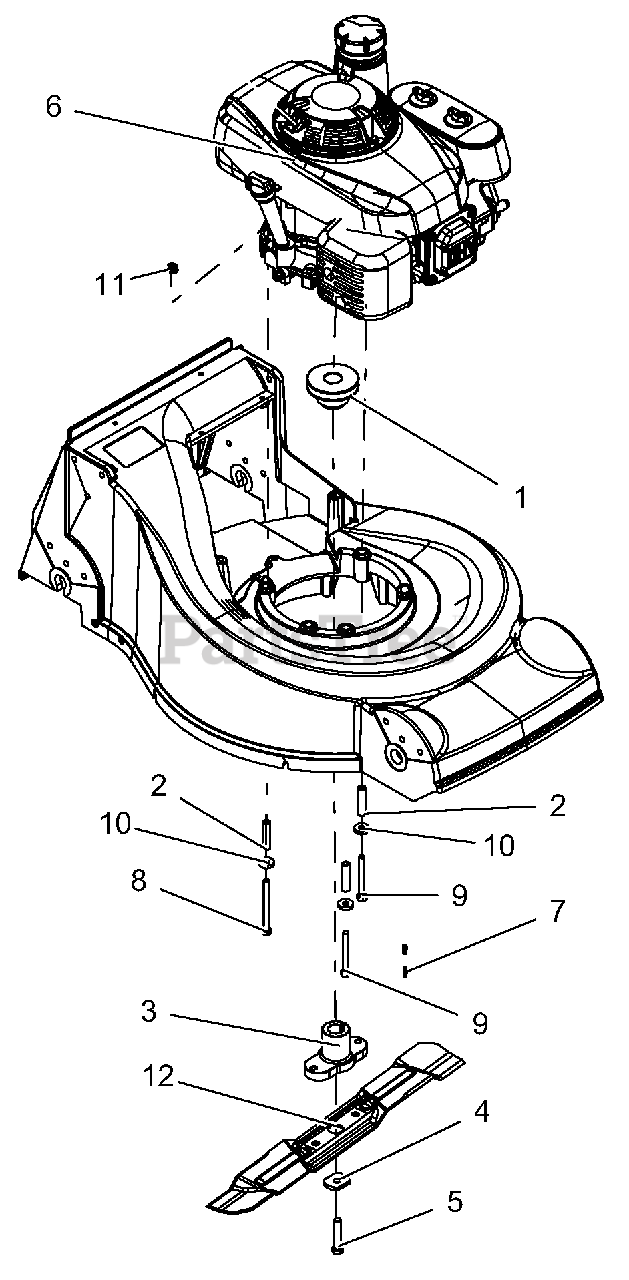

911286 - Gravely 21" Walk-Behind Mower, Honda (SN: 000101 & Above) Engine And Blade Parts Diagram
21" Walk-Behind Mower, Honda
Engine And Blade Parts Diagram
Gravely 07341800
PULLEY, GROUND DRIVE-WLDMT
$
$
Not available
Gravely 05501212
BSHG, SLV .322 X .438 X 1.824
$
$
Not available
Gravely 04715700
ADAPTOR, BLADE
$
$
Not available
Gravely 06300114
WSHR, SPRG
$5.99
$
Usually ships in 4-12 days
Gravely 05976600
BLT-HEX .38-24X2.00 YWZC GR8
$2.99
$
In Stock, Qty 8
Gravely 08200936
ENGINE, HONDA ZONE-CARB
$
$
Not available
Gravely 06600900
KEY-WDRF .156X.625X.25 SAE 6
$2.49
$
In Stock, only 2 left!
Gravely 05948000
BLT-HEX .31-18X3.50 GR5 YWZC
$2.49
$
Usually ships in 4-12 days
Gravely 05937200
BLT-HEX .31-24X2.75 GR5 YWZC
$3.49
$
Usually ships in 4-12 days
$3.49
$
In Stock, only 1 left!
$1.49
$
In Stock, Qty 20+
Gravely 04711200
BLADE, MOWER 21" HIGH-LIFT
$27.99
$
In Stock, only 1 left!
