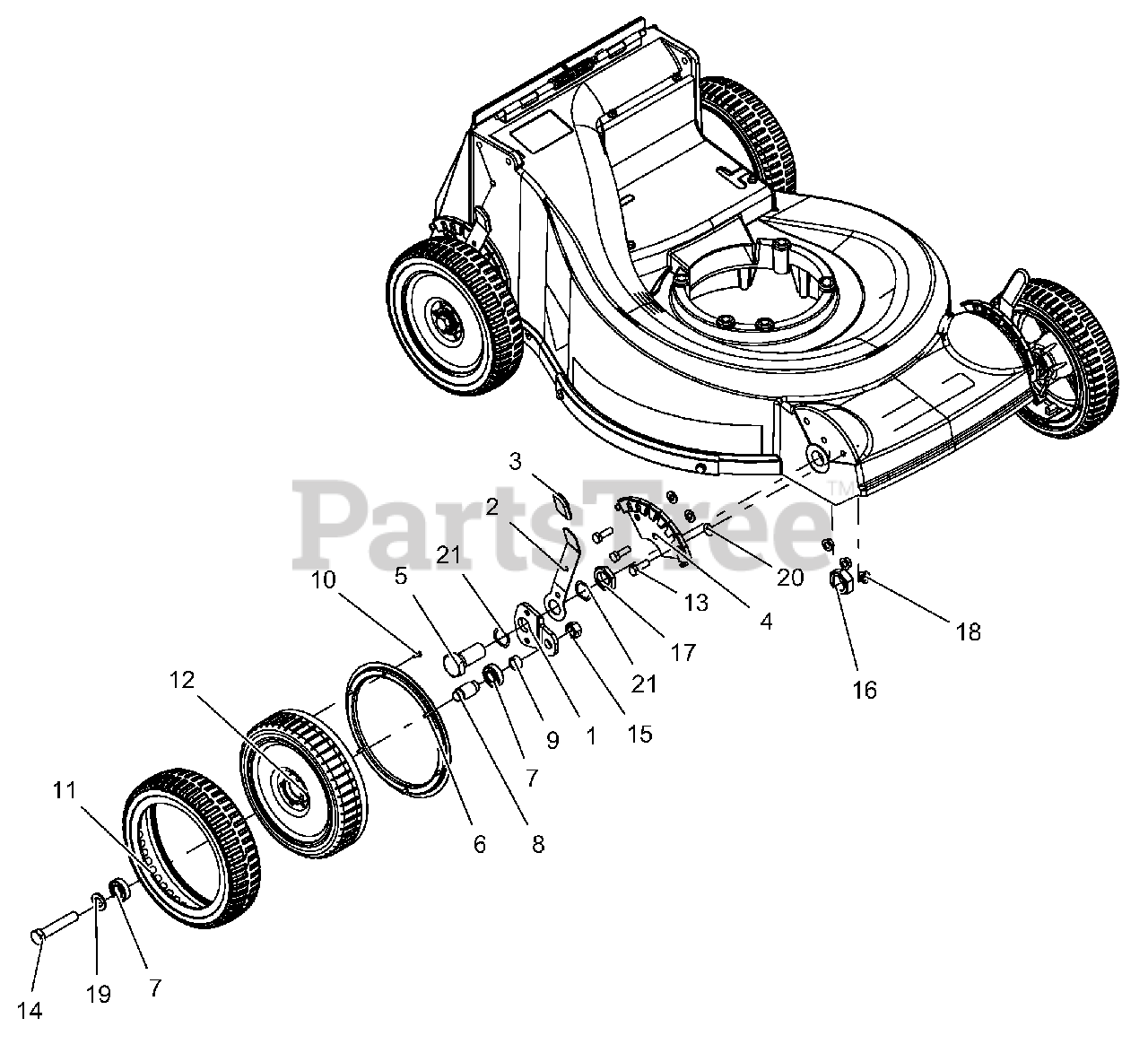

911290 - Gravely 21" Walk-Behind Mower, Kawasaki (SN: 000101 - 000408) Front Tires - Height Of Cut Parts Diagram

21" Walk-Behind Mower, Kawasaki

Front Tires - Height Of Cut Parts Diagram

  • Title

1

Gravely 04665500

BRKT, WHEEL

$

$

Not available

2

Gravely 04665700

LEVER, HEIGHT ADJUST

$55.99

$

Usually ships in 4-12 days

0

3

Gravely 04665800

GRIP, HEIGHT ADJUST

$3.99

$

Usually ships in 4-12 days

0

4

Gravely 04665900

LOCATOR, HEIGHT CONTROL

$26.99

$

Usually ships in 4-12 days

0

5

Gravely 04666600

HUB, FRONT AXLE

$36.99

$

Usually ships in 4-12 days

0

6

Gravely 04685551

RING, TIRE RETAINING

$19.99

$

Usually ships in 4-12 days

0

7

Gravely 05400720

BRG, WHEEL

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05501139

BSHG, WHEEL

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 05501140

BSHG, SPCR

$10.99

$

Usually ships in 4-12 days

0

10

Gravely 06100217

SCR, MACHINE-#8-32 X .375 PANHD

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 07101021

TIRE, MOWER

$25.99

$

Usually ships in 4-12 days

0

12

Gravely 07101022

WHEEL, ALUMINUM

$28.99

$

Usually ships in 4-12 days

0

13

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

14

Gravely 05965500

BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 06536300

NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

16

Gravely 06502900

NUT-JAM .875-14

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 06500716

NUT-JAM .875-14 THIN

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 06543100

NUT, LK-TOP-FLG .312-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06449400

WSHR-FL-STL M12 13X25X2 YWZC

$

$

Not available

20

Gravely 06437200

WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 8

0

21

Gravely 06400930

WASHER, WAVE

$3.49

$

Usually ships in 4-12 days

0
