911345 (PRO 21 XD) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 000101 & Above) Wheels Parts Diagram
21" Self-Propelled Walk-Behind Mower, Kawasaki

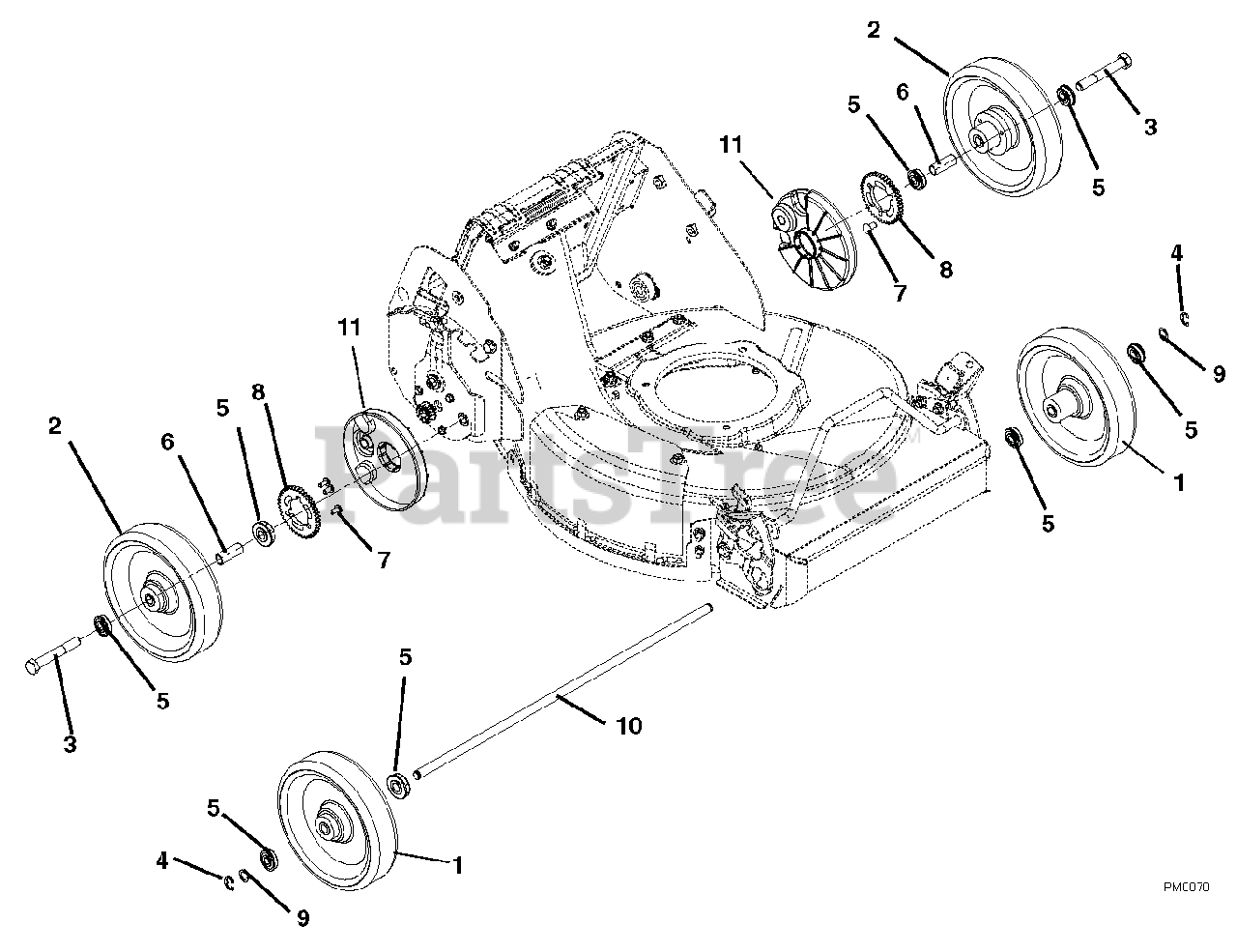

Wheels Parts Diagram
$62.99
$
Usually ships in 4-12 days
Ariens 07100803
TIRE, 8 X 1.75 COMMERCIAL REAR
(Superseded to 51116100)
Note: (Includes items 5 and 6)
$130.99
$
Usually ships in 4-12 days
Ariens 05901424
BLT-HEX .50-13X3.50 GR8 YWZC
$5.99
$
Usually ships in 4-12 days
Ariens 05710200
RG-RTNG-EXT .500X.042 (E)
$1.49
$
In Stock, Qty 20+
Ariens 05480000
BRG-BALL .50X1.38X.438 SEALED
$15.99
$
In Stock, Qty 20+
Ariens 05501016
SPACER,.560 ID X.750 OD X 2.09
$24.99
$
Usually ships in 4-12 days
Ariens 07430000
SCR-TAP 1/4-20X3/4 LPAN TL BZ
$1.49
$
Usually ships in 4-12 days
Ariens 01296500
GEAR, WHEEL
$
$
Not available
Ariens 06400015
WASHER, .500X.750X.020 THRUST
$1.49
$
In Stock, Qty 20+
Ariens 01325800
AXLE, HD21 FRONT
$55.99
$
Usually ships in 4-12 days
Ariens 03937900
COVER, WHEEL
$6.99
$
Usually ships in 4-12 days
