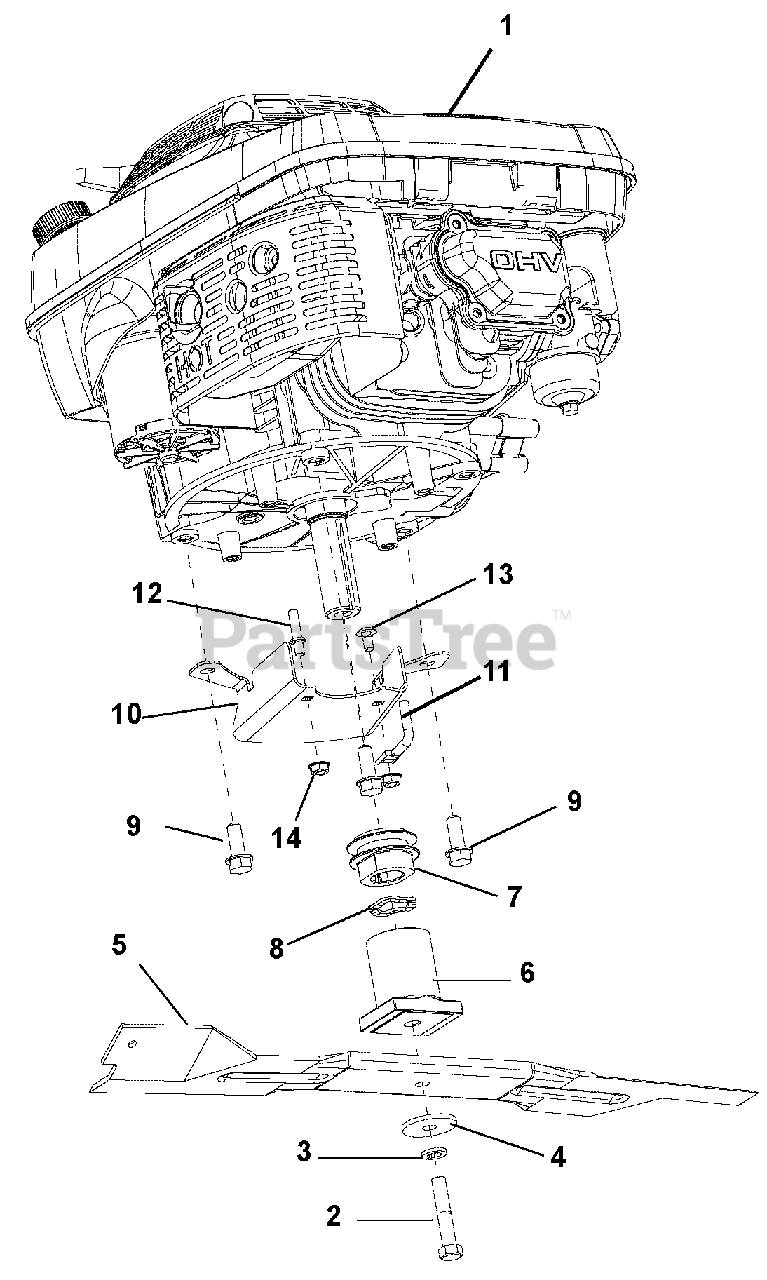

911345 (XD 21 CE) - Gravely 21" Walk-Behind Mower (SN: 000101 & Above) Engine, Blade, Belt Parts Diagram

21" Walk-Behind Mower

Engine, Blade, Belt Parts Diagram

  • Title

1

Gravely 08200532

Engine, KAWI FJ180V Commercial

$

$

Not available

2

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, Qty 6

0

3

Gravely 06308800

Washer, Locking .38 x .094 Regular
(Superseded to 06300116)

$0.99

$

In Stock, Qty 17

0

4

Gravely 06441700

Washer, Flat-Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 3 left!

0

5

Gravely 01176700

21" Mower Blade

$28.99

$

Usually ships in 4-12 days

0

6

Gravely 09735100

Adapter, CE Blade

$45.99

$

Usually ships in 4-12 days

0

7

Gravely 09733100

Pulley-Sintered Iron LM
(Superseded to 04851300)

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 01192900

Washer, Wave .885 x 1.311 x .125

$4.99

$

In Stock, Qty 7

0

9

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head Thread
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 01279751

Channel, XD21 Front Belt

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 01265700

Finger, Belt

$19.99

$

Usually ships in 4-12 days

0

12

Gravely 01265600

Finger, Belt

$7.49

$

Usually ships in 4-12 days

0

13

Gravely 06220600

Bolt, Round Head Square Neck .25-20 x .50 Grade 5
(Superseded to 06200306)

$0.99

$

In Stock, Qty 7

0

14

Gravely 06530100

Nut, Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0
