911345 (XD 21 CE) - Gravely 21" Walk-Behind Mower (SN: 000101 & Above) Engine, Blade, Belt Parts Diagram

21" Walk-Behind Mower

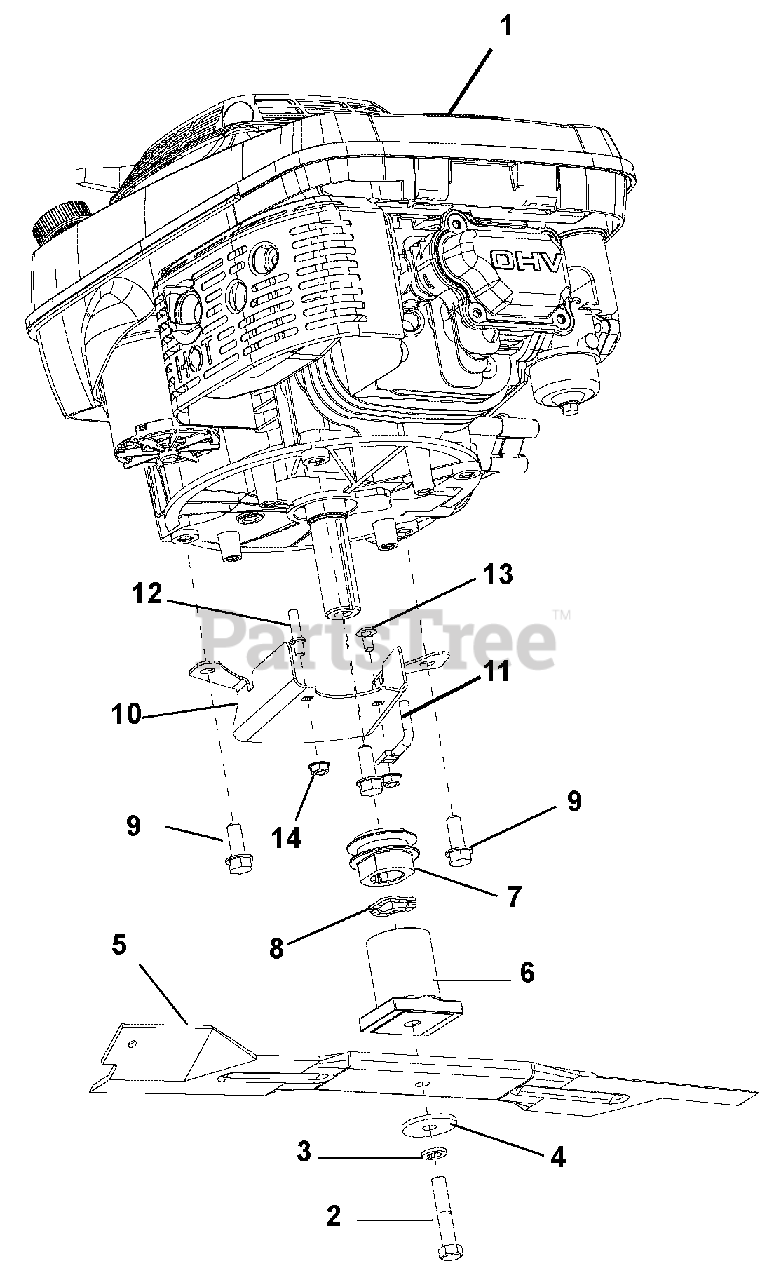

Engine, Blade, Belt Parts Diagram

  • Title

1

Gravely 08200532

ENGINE, KAWI FJ180V COMMERCIAL

$

$

Not available

2

Gravely 05976600

BLT-HEX .38-24 X 2.00 GR8 YWZC

$2.99

$

In Stock, only 2 left!

0

3

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, Qty 12

0

5

Gravely 01176700

BLADE, 21" LM MULCHING

$28.99

$

In Stock, only 2 left!

0

6

Gravely 09735100

ADAPTER, CE BLADE

$46.99

$

Usually ships in 4-12 days

0

7

Gravely 09733100

PULLEY-SINTERED IRON LM
(Superseded to 04851300)

$17.99

$

Usually ships in 4-12 days

0

8

Gravely 01192900

WASHER-WAVE .885X1.311X.125

$5.49

$

In Stock, only 2 left!

0

9

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 19

0

10

Gravely 01279751

CHANNEL, XD21 FRONT BELT

$35.99

$

Usually ships in 4-12 days

0

11

Gravely 01265700

FINGER, BELT

$

$

Not available

12

Gravely 01265600

FINGER, BELT

$7.99

$

Usually ships in 4-12 days

0

13

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

14

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0
