911345 (XD 21 CE) - Gravely 21" Walk-Behind Mower (SN: 000101 & Above) Handlebar and Controls Parts Diagram

21" Walk-Behind Mower

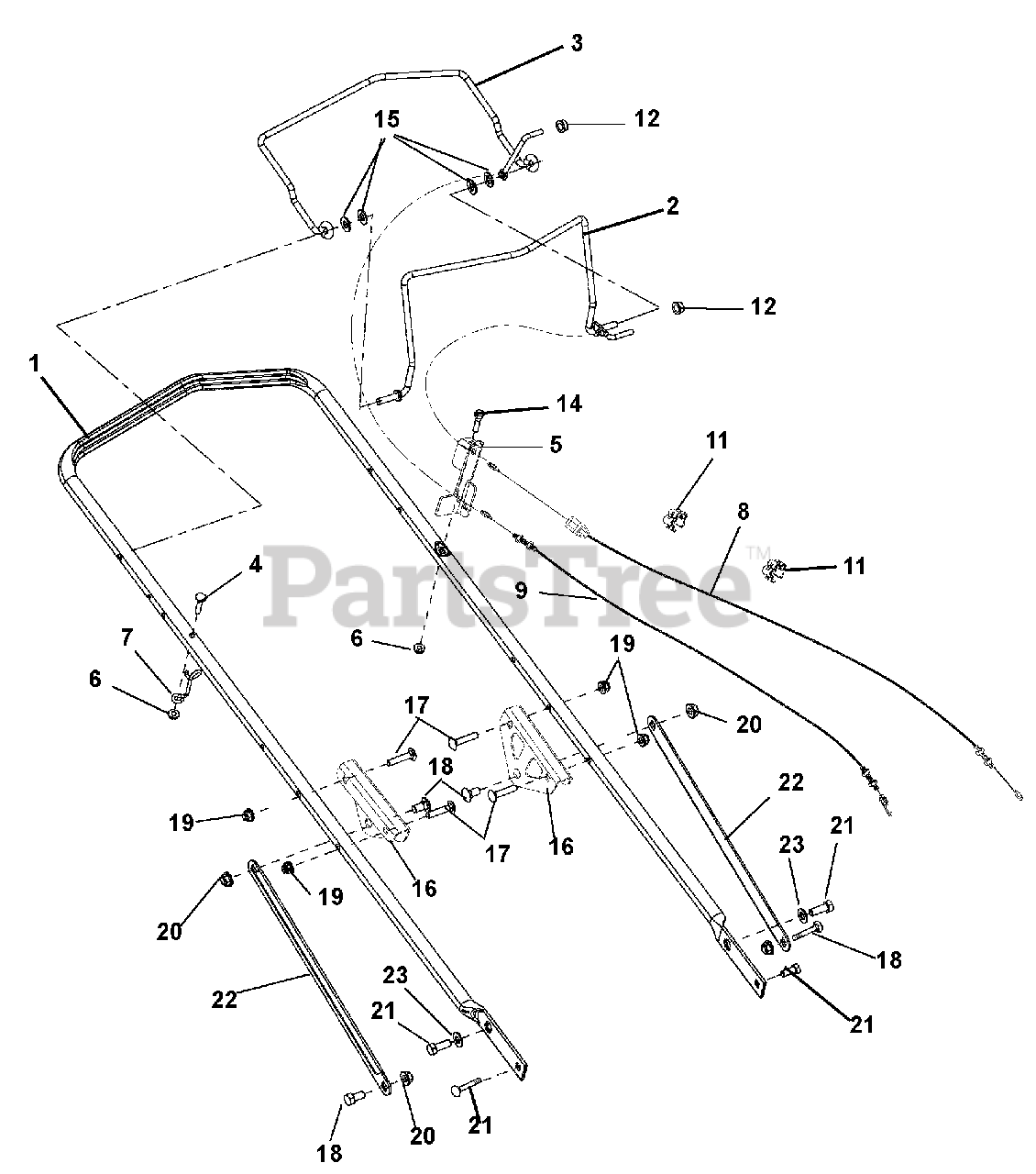

Handlebar and Controls Parts Diagram

  • Title

1

Gravely 04057851

Handlebar

$

$

Not available

2

Gravely 03997851

Bail, Operator Presence

$54.99

$

Usually ships in 4-12 days

0

3

Gravely 03997951

Bail, Clutch

$60.99

$

Usually ships in 4-12 days

0

4

Gravely 06220100

Bolt, Round Head Square Neck .25-20 x 1.25

$2.49

$

In Stock, only 2 left!

0

5

Gravely 01256251

Anchor, Cable Thumb Adjustment
(Superseded to 03882351)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

7

Gravely 04642100

Guide, Pullcord

$51.99

$

Usually ships in 4-12 days

0

8

Gravely 01292500

Cable, Operator Presence Control

$42.99

$

In Stock, only 1 left!

0

9

Gravely 04061100

Cable, Commercial 21 Traction

$60.99

$

Usually ships in 4-12 days

0

10

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

11

Gravely 07539300

Clip, Conduit

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 02215300

Push Nut, .25

$1.99

$

In Stock, Qty 16

0

13

Gravely 00581051

Plate, Hinge

$

$

Not available

14

Gravely 05947400

Bolt, Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

15

Gravely 06437200

Washer, Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 11

0

16

Gravely 00980051

Bracket, Handlebar Reforcement

$6.49

$

Usually ships in 4-12 days

0

17

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50 Grade 5
(Superseded to 06200233)

$1.49

$

In Stock, Qty 9

0

18

Gravely 06223900

Bolt, Round Head Square Neck .38-16X.75
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 15

0

20

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

22

Gravely 00612751

Strap, Handlebar

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 06436200

Washer, Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0
