911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999)

34" Walk-Behind Mower, 14.5hp Briggs & Stratton

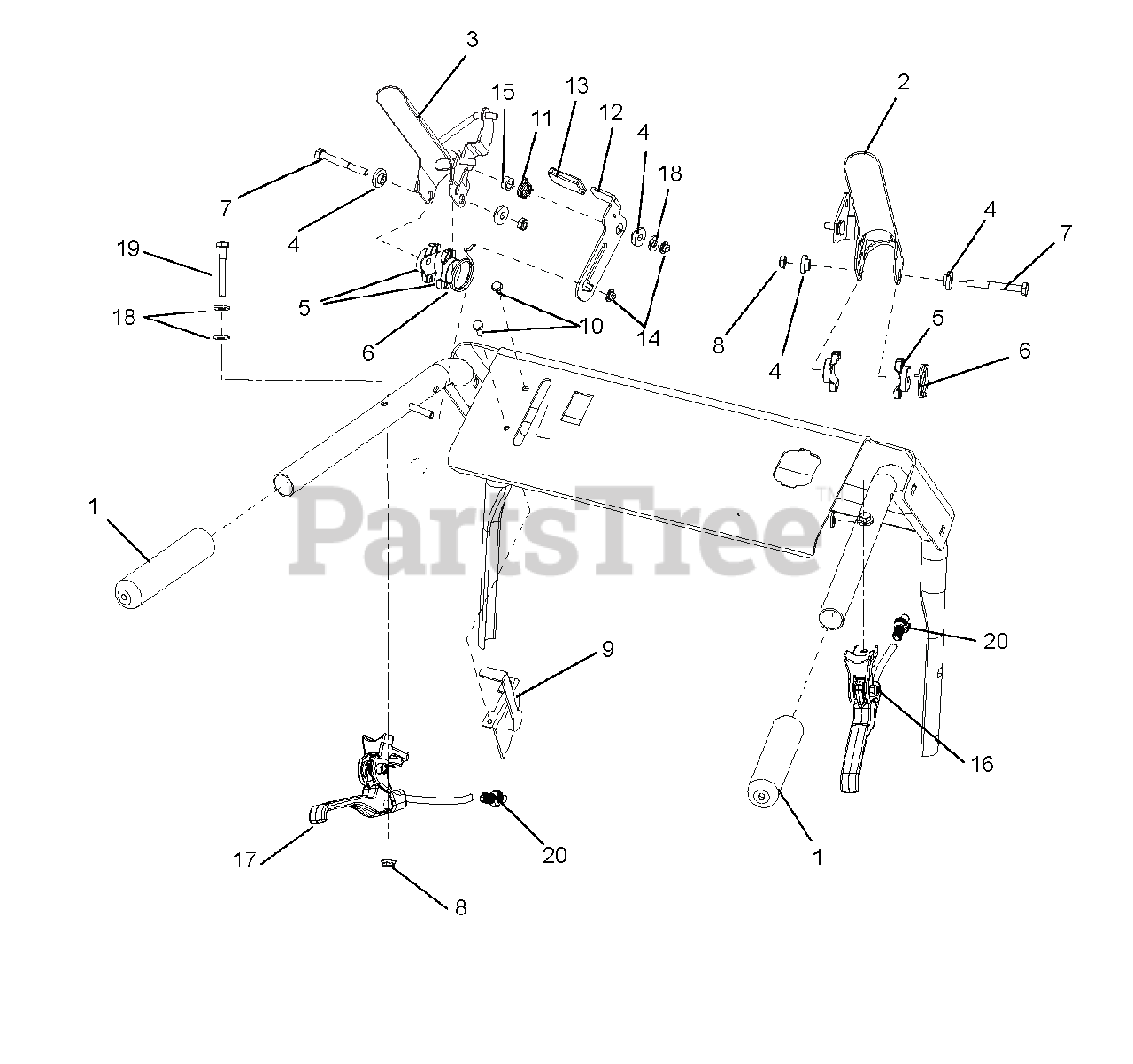

911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) > Parts Diagrams (12) > Controls

  • Title
07518700

1

Grip, Handle

Part# 07518700 (Superseded to 07500239)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

01288751

2

Paddle, Pillow Brake

Part# 01288751

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.89

01327251

3

Weldment, Paddle Left Hand CE

Part# 01327251

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $83.79

00399300

4

Bushing, Flange .266 x .42 x .150 x .750

Part# 00399300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

05500040

5

Spacer, Handlebar

Part# 05500040

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

08300026

6

Spring, Torsion

Part# 08300026

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

05956700

7

Bolt, Hex .25-20 x 2.25

Part# 05956700

OEM Warranty Repair Part for Gravely

Not available

06530900

8

Nut, Nylon Jam .250-20

Part# 06530900

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

06900415

9

Cable, Throttle

Part# 06900415

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $24.54

07415800

10

Screw, Tapping 10-24 x .50 Hex Washer Head

Part# 07415800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

08300014

11

Spring, Torsion

Part# 08300014

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

03283000

12

Bracket - Lever, Interlock

Part# 03283000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $14.48

04928700

13

Grip, Thumb Latch

Part# 04928700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

02215300

14

Nut, Push .25

Part# 02215300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

01252600

15

Tube, Spacer .33 x .50

Part# 01252600

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.09

06900329

16

Lever, Control With Cable Forward

Part# 06900329

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

06900330

17

Lever, Control With Cable Reverse

Part# 06900330

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $39.07

06437300

18

Washer, Flat Steel .281 x .62 x 0.65

Part# 06437300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

05967100

19

Bolt, Hex .25-20 x 2.00

Part# 05967100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06900401

20

Cable Adjuster, Steel (Service Only)

Part# 06900401

Note: (Service Only)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53
