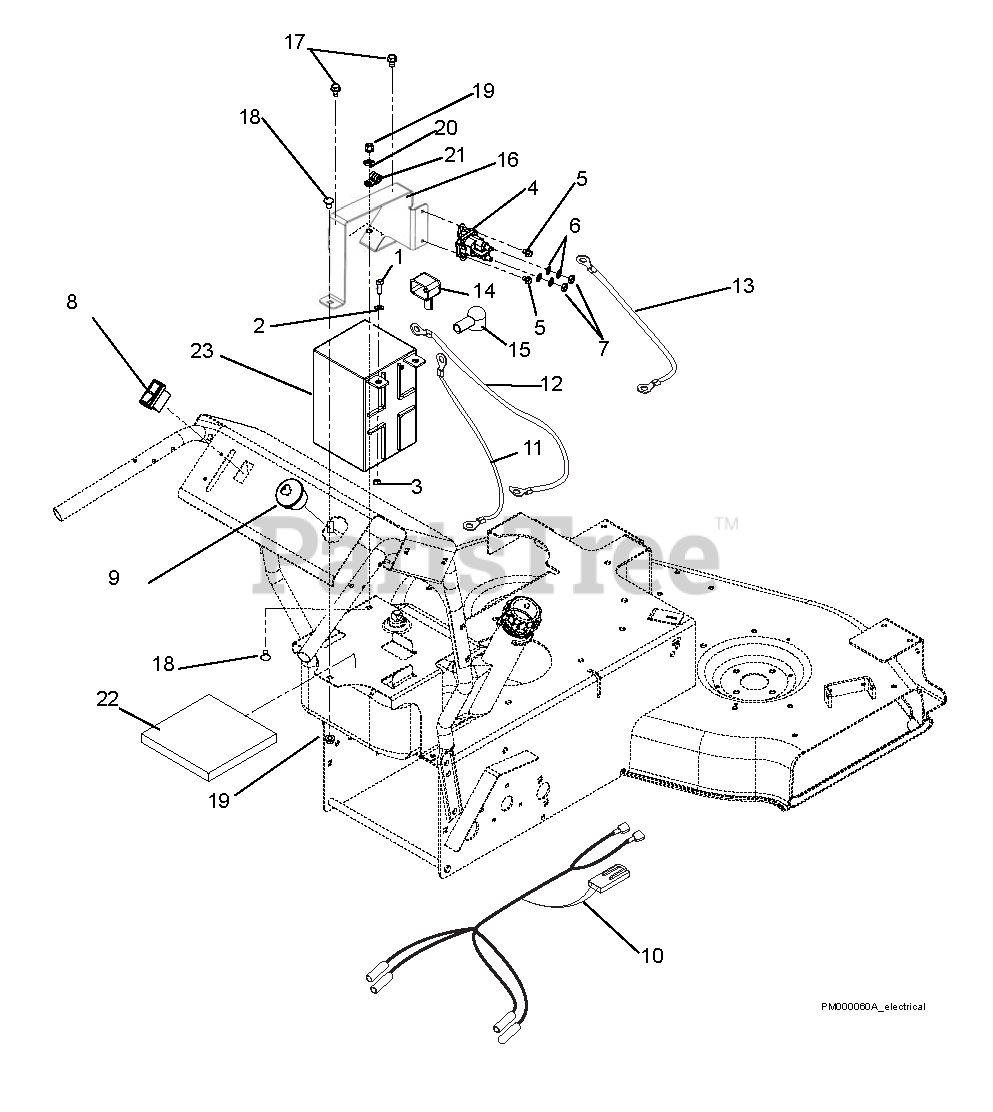

911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Electrical Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton

Electrical Parts Diagram

  • Title

1

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$68.99

$

In Stock, Qty 20+

0

5

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$1.49

$

In Stock, Qty 8

0

7

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.99

$

In Stock, Qty 5

0

8

Gravely 03374200

SWITCH-ROCKER, MOMENTARY

$20.99

$

Usually ships in 4-12 days

0

9

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 17

0

9

Gravely 04986400

KEY, IGNITION

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0

Gravely 03292700

BRKT, STRIPER MOUNT-RIGHT

$

$

Not available

10

Gravely 03372600

HARNESS, WAW WIRING

$

$

Not available

11

Gravely 00187500

CABLE, POS. BAT 18.50"

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 04249900

CABLE, NEGATIVE 26" 6 GA.

$41.99

$

In Stock, only 1 left!

0

13

Gravely 04508201

CABLE, POS 6.75" BENT

$

$

Not available

14

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

15

Gravely 07533200

BOOT, EYELET TERMINAL

$4.99

$

In Stock, Qty 12

0

16

Gravely 03986051

BRKT, BATTERY MOUNT
(Superseded to 04270851)

$85.99

$

Usually ships in 4-12 days

0

17

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$2.49

$

In Stock, Qty 20+

0

18

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$3.99

$

In Stock, Qty 14

0

19

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06514900

NUT-PUSH .312

$1.49

$

In Stock, only 4 left!

0

21

Gravely 06908200

CLAMP, CUSHIONED STEEL

$6.99

$

Usually ships in 4-12 days

0

22

Gravely 04504000

BATTERY MAT WAW 2012

$

$

Not available

23

Gravely 04382200

BATTERY, 12V 20HR;190CCA GEP
(Superseded to 04738800)

Note: (Can be replaced with U1 battery, see Owners Manual)

$148.99

$

In Stock, Qty 20+

0
