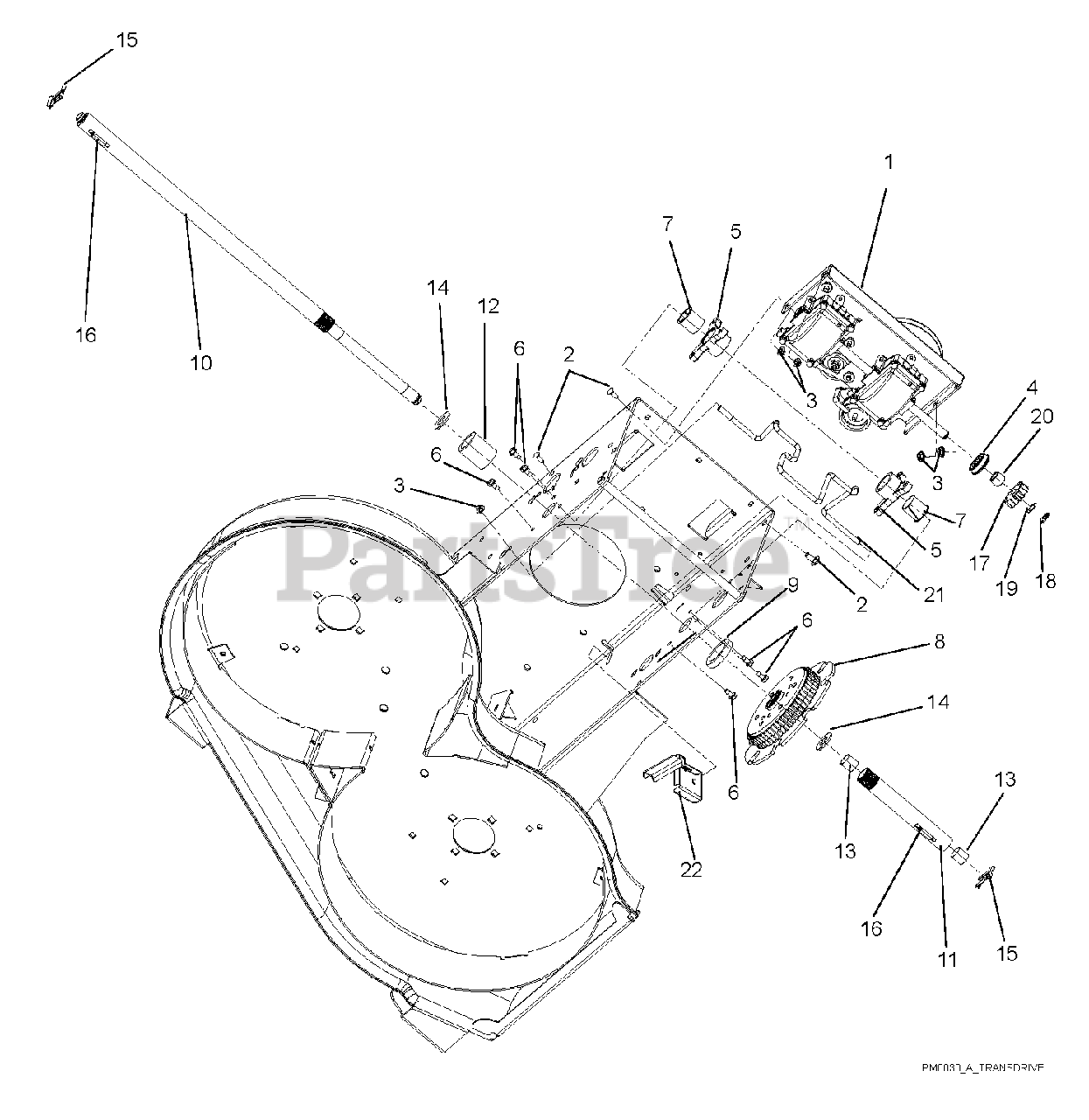

911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) > Parts Diagrams (12) > Transmission And Drive

Kit, WAW Transmission

Part# 51115300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Bolt, Round Head, Square Neck .31-18 x .75

Part# 06215700 (Superseded to 06200232) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bearing, Sealed Ball .50 1.38 x .438

Part# 05480000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bushing, Rake Shaft 1"

Part# 00275100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Screw, Tapping Hex Washer Head .25-20 x .50

Part# 07412000 (Superseded to 07400034) 

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bushing, Flange Split 1.0"

Part# 05500030

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Kit, Differential

Part# 51113100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Washer, Flat Nylon 1.42 x 2.03 x .35

Part# 06400827

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Shaft, Axle Long

Part# 03264700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Shaft, Axle Short

Part# 03264800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Spacer 1.0 x 1.5 x 1.57

Part# 05500827

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Bushing, Sleeve .706 x .764 x .75

Part# 05500023

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Washer, Flat Steel 1.0 x 1.50 x .062

Part# 06436300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Clip, Snap .625 Diameter

Part# 05700001

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Key, Rectifier .25 x .188 x 1.00

Part# 06600002

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Pinion, Transmission Drive

Part# 01247400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Ring, External Retaining .500 x .042

Part# 05710200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Washer, Thrust .500 x .020

Part# 06400015

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Retainer, Bearing

Part# 01254800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Belt Finger

Part# 01288000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Guide, Vertical Belt

Part# 04273551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days
