911372 (WAW 34) - Gravely 34" Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 013000 & Above) Controls Parts Diagram

34" Walk-Behind Mower, 14.5hp Briggs & Stratton

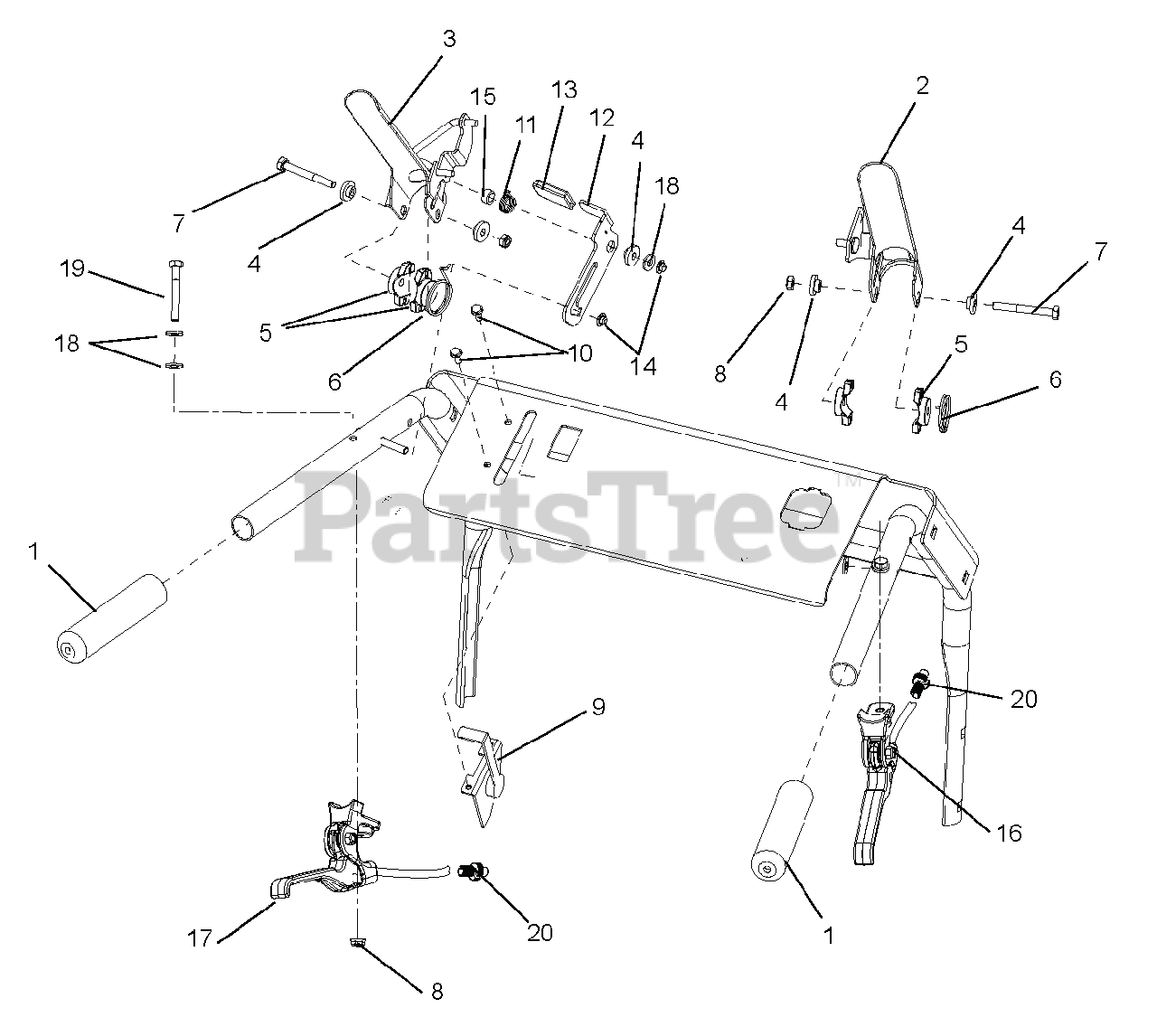

Controls Parts Diagram

  • Title

1

Gravely 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 01288751

PADDLE, P-BRAKE

$47.99

$

Usually ships in 4-12 days

0

3

Gravely 01327251

HANDLEBAR, CE LH (WELDMENT)

$

$

Not available

4

Gravely 00399300

BSHG, FLG .266X.42X.150 PM

$4.49

$

In Stock, Qty 7

0

5

Gravely 05500040

SPACER, HANDLEBAR

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08300026

SPRING, TORSION

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 05956700

BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06530900

NUT-JAM-NYL .250-20 W/INSERTYZ

$0.99

$

In Stock, Qty 6

0

9

Gravely 06900415

CABLE, WAW THROTTLE

$25.99

$

In Stock, only 1 left!

0

10

Gravely 07415800

SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 08300014

SG-TORS

$1.49

$

In Stock, only 2 left!

0

12

Gravely 03283000

BRKT-LEVER, INTERLOCK

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 04928700

GRIP, THUMB LATCH

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 11

0

15

Gravely 01252600

TUBE-SPACER .33X.50X.XX

$

$

Not available

16

Gravely 06900329

CONTROL-LEVER W/CABLE FORWARD

$43.99

$

In Stock, Qty 9

0

17

Gravely 06900330

CONTROL-LEVER W/CABLE REVERSE

$43.99

$

In Stock, only 2 left!

0

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 06900401

CABLE ADJUSTER, STEEL

Note: (Service Only)

$6.49

$

Usually ships in 4-12 days

0
