911375 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 026232 - 026778)

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

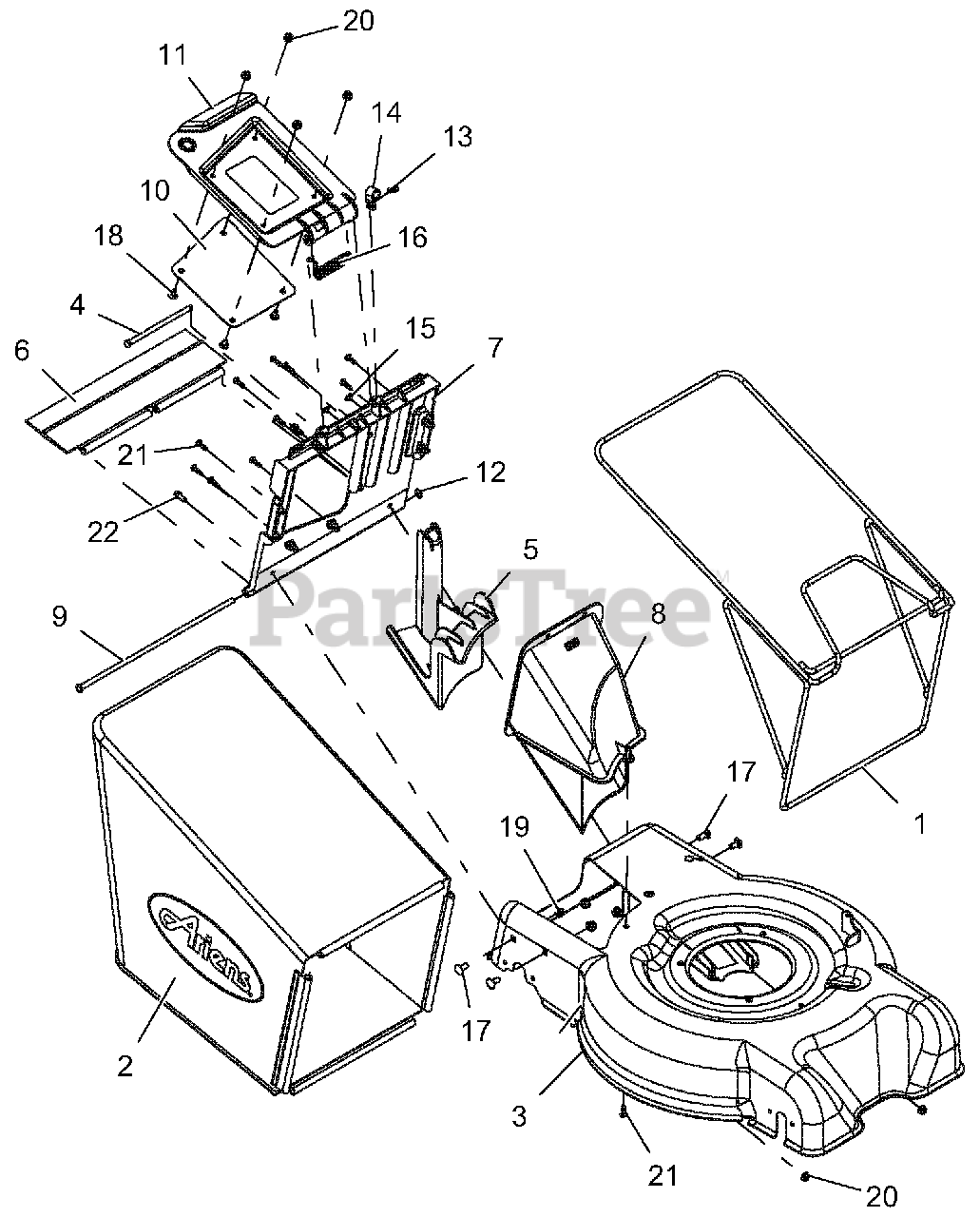

911375 (LMSP) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 026232 - 026778) > Parts Diagrams (6) > Mower Deck And Bagger

  • Title
04520659

1

FRAME, BAG

Part# 04520659 (Superseded to 04718959)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

04544100

2

BAGGER, ARIENS LM

Part# 04544100 (Superseded to 05088500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

51116700

3

DECK W/ SAFETY DECAL

Part# 51116700

OEM Warranty Repair Part for Ariens

Not available

00475800

4

PIN, 5/16 X 5.80"

Part# 00475800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

04534300

5

PLUG, MULCH

Part# 04534300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

04534400

6

GUARD, REAR

Part# 04534400 (Superseded to 51122800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.58

04534700

7

HANGER, BAG

Part# 04534700 (Superseded to 51122800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.58

04547900

8

CHUTE, REAR DISCHARGE LM

Part# 04547900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

04556200

9

ROD, REAR GUARD

Part# 04556200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.93

04661051

10

PLATE, REAR DOOR

Part# 04661051

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $26.83

51116900

11

REAR DOOR W/ SAFETY DECAL

Part# 51116900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06514900

12

NUT-PUSH .312

Part# 06514900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06713500

13

PIN-HAIR INT .08X.18X1.18 YWZC

Part# 06713500

OEM Warranty Repair Part for Ariens

Not available

06900512

14

CLAMP, LM CABLE

Part# 06900512

OEM Warranty Repair Part for Ariens

Not available

07500301

15

PLUG,5/16 HOLE,.125 MATL PLSTC

Part# 07500301

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

08322400

16

SG-TORS .120X.68X3.09

Part# 08322400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.76

06215700

17

@BLT-RDHDSQNK .31-18X.75 G5YZ

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06220600

18

@BLT-RDHDSQNK .25-20X.50 G5YZ

Part# 06220600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06543100

19

@NUT-LK-TOP-FLG .31-18 YWZC

Part# 06543100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.62

06543500

20

@NUT-LK-TOP-FLG .25-20 YWZC

Part# 06543500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07400101

21

SCR-TAP 12-14X.75PLSTITE @BLZC

Part# 07400101

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

07400103

22

@SCR-TAP .25-20X.62 HWH TR YWZ

Part# 07400103

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85
