911379 (LMSPE) - Ariens Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru (SN: 000101 - 020068) Engine_Blade Parts Diagram

Razor 21" Self-Propelled Walk-Behind Mower, 175cc Subaru

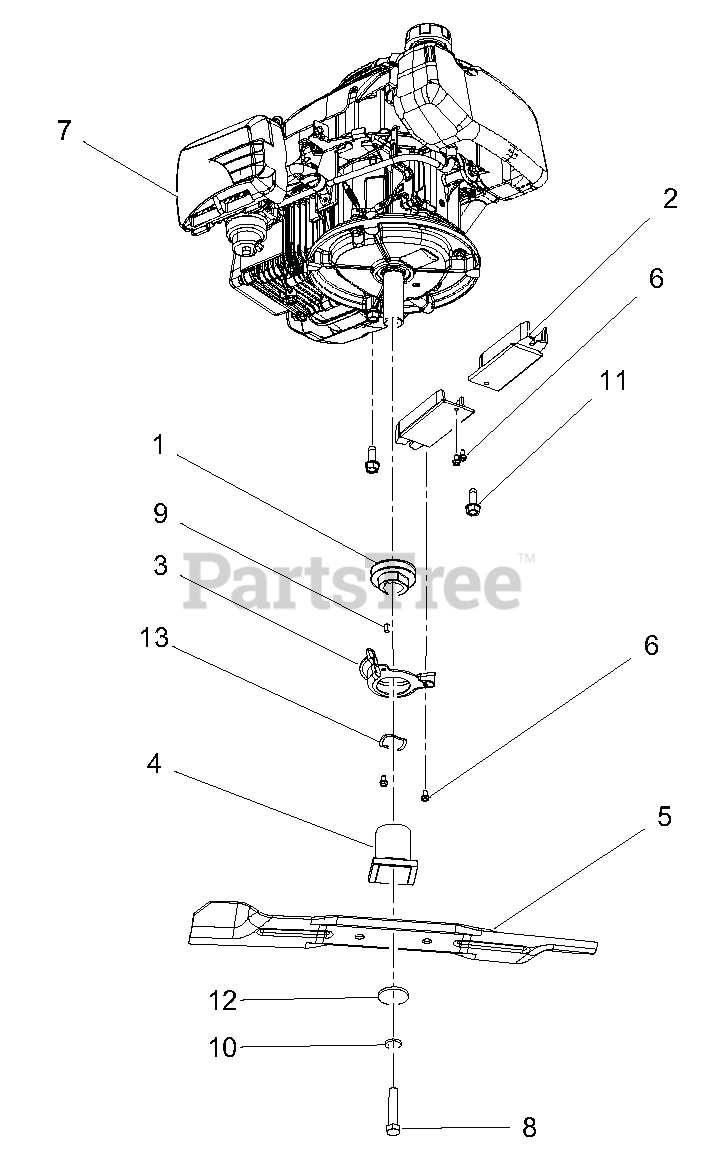

Engine_Blade Parts Diagram

  • Title

1

Ariens 04527000

PULLEY, GROUND DRIVE, LM

Note: (911375, 379)

$29.99

$

Usually ships in 4-12 days

0

2

Ariens 04533700

GUIDE, BELT INNER
(Superseded to 04733800)

$10.99

$

In Stock, only 1 left!

0

3

Ariens 04533851

GUIDE, BELT CRANK

Note: (911375, 379)

$40.99

$

Usually ships in 4-12 days

0

4

Ariens 04539400

ADAPTER, BLADE

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 04544400

BLADE, MOWER 21" HIGH LIFT

$25.99

$

In Stock, Qty 19

0

6

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 17

0

7

Ariens 08200825

ENGINE, SUBARU 175CC VERT

Note: (911373, 375)

$

$

Not available

7

Ariens 08200827

ENGINE, SUBARU 175CC VERT. ES

Note: (911379)

$

$

Not available

8

Ariens 05901515

@BLT-HEX .4375-20X2.25 GR8 YWZ

$4.99

$

In Stock, Qty 5

0

9

Ariens 06600219

KEY-SQ .188X.188X.625

Note: (911375, 379)

$2.49

$

In Stock, only 2 left!

0

10

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 6

0

11

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

12

Ariens 06400925

WSHR-FL-STL .4375X1.50X.125 YZ

$

$

Not available

13

Ariens 09250700

WASHER - WAVE 1.09X1.37X.016

Note: (911375, 379)

$3.99

$

Usually ships in 4-12 days

0
