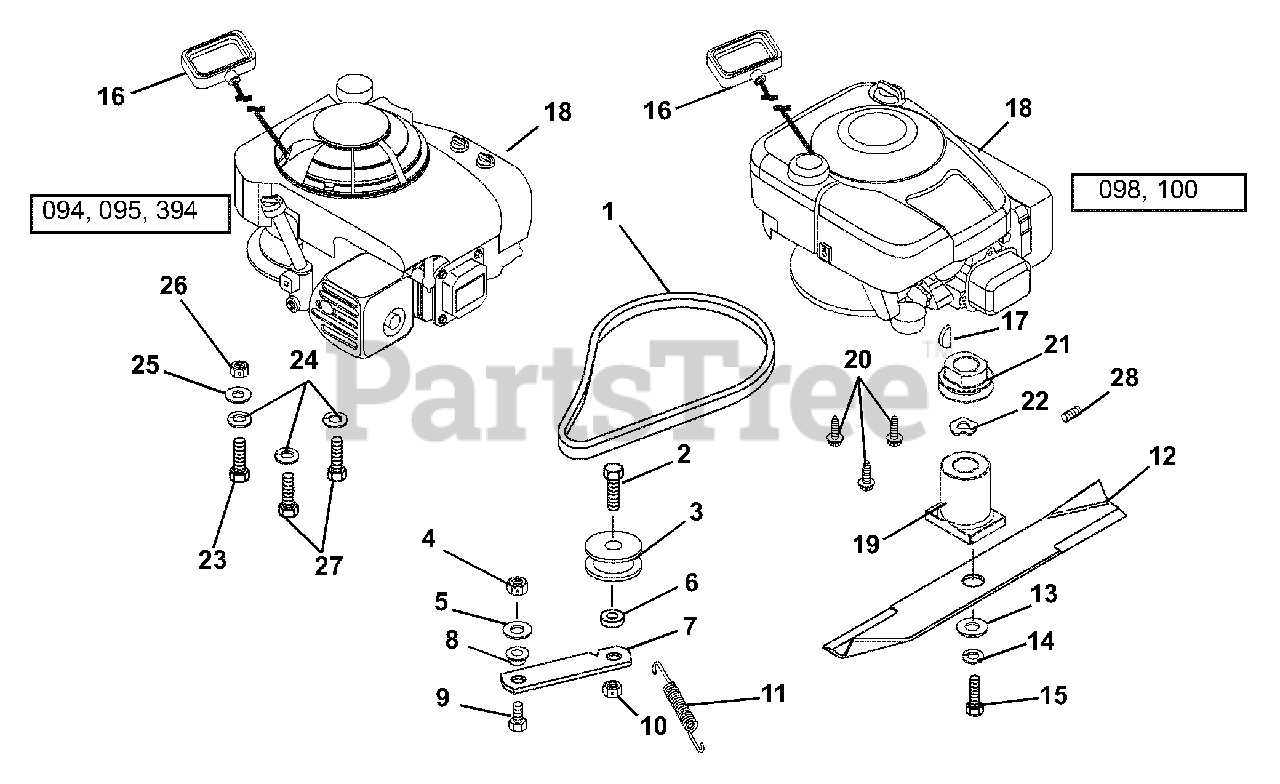

911394 (PRO 21 SCH) - Gravely 21" Walk-Behind Mower, 5.5hp Honda (SN: 000101 & Above) Engine, Blade And Belt Parts Diagram

21" Walk-Behind Mower, 5.5hp Honda

Engine, Blade And Belt Parts Diagram

  • Title

1

Gravely 07217100

V-Belt 3L Section (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$35.99

$

In Stock, Qty 20+

0

2

Gravely 05962800

Bolt, Hex .44-14 x 1.50 Grade 5 (094, 098, 100, 394)
(Superseded to 05901633)

Note: (094, 098, 100, 394)

$3.49

$

In Stock, Qty 11

0

3

Gravely 07313300

Idler, Flat 1.75 x .47 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$36.99

$

In Stock, Qty 12

0

4

Gravely 06529800

Nut, Locking Center .31 -18 (094, 098, 100, 394)
(Superseded to 06500826)

Note: (094, 098, 100, 394)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065 (094, 098, 100, 394)
(Superseded to 06401017)

Note: (094, 098, 100, 394)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 05533300

Bushing, Sleeve .47 x .75 x .43 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$3.99

$

In Stock, Qty 10

0

7

Gravely 01141200

Idler Arm (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$23.99

$

In Stock, only 2 left!

0

8

Gravely 05515400

Bushing, Flange .325 x .50 x .25 x 1.12 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$3.99

$

In Stock, Qty 10

0

9

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (094, 098, 100, 394)
(Superseded to 05901704)

Note: (094, 098, 100, 394)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06536400

Nut, Locking Center .44-14 (094, 098, 100, 394)
(Superseded to 06500930)

Note: (094, 098, 100, 394)

$3.49

$

In Stock, Qty 8

0

11

Gravely 08321100

Spring, Tension .043 x .44 x 3.31 (094, 098, 100, 394)

Note: (094, 098, 100, 394)

$6.49

$

In Stock, Qty 20+

0

12

Gravely 01137000

Blade, 21" Mower

$25.99

$

In Stock, Qty 20+

0

12

Gravely 01182400

Blade, 21" Mower Tungsten
(Superseded to 01137000)

$25.99

$

In Stock, Qty 20+

0

13

Gravely 06441700

Washer, Flat Steel .390 x 1.50 x .125

$3.99

$

In Stock, Qty 12

0

14

Gravely 06308800

Washer, Locking .38 x .094
(Superseded to 06300116)

$1.49

$

In Stock, Qty 17

0

15

Gravely 05976600

Bolt, Hex .38-24 x 2.00 Grade 8

$2.99

$

In Stock, only 4 left!

0

16

Gravely 01157100

Recoil Start Handle

$8.49

$

In Stock, only 2 left!

0

17

Gravely 06600900

Key, Woodruff .156 x .625 x .25 SAE #6

$2.49

$

In Stock, Qty 11

0

18

Gravely 08269700

Engine, Briggs and Stratton 6.75HP Intek OHV (098, 100)

Note: (098, 100)

$

$

Not available

18

Gravely 08270500

Engine, Honda 5.5 HP OHV (094, 095, 394)

Note: (094, 095, 394)

$

$

Not available

19

Gravely 09733200

Blade Adapter (098, 100)
(Superseded to 09735100)

Note: (098, 100)

$46.99

$

Usually ships in 4-12 days

0

19

Gravely 09733300

Adapter, Blade Hub (094, 095, 394)

Note: (094, 095, 394)

$40.99

$

Usually ships in 4-12 days

0

20

Gravely 07414100

Screw, Tapping .38-16 x 1.00 Hex Washer Head (098, 100)
(Superseded to 07417500)

Note: (098, 100)

$3.99

$

In Stock, Qty 16

0

21

Gravely 09733100

Pulley (098, 100)
(Superseded to 04851300)

Note: (098, 100)

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 09733400

Pulley, Steel Drive (094, 394)

Note: (094, 394)

$105.99

$

Usually ships in 4-12 days

0

22

Gravely 01192900

Washer, Wave .885 x 1.31 x .125 (098, 100)

Note: (098, 100)

$5.49

$

In Stock, Qty 6

0

23

Gravely 05963500

Bolt, Hex .31-24 x 1.50 Grade 5 (094, 095, 394)

Note: (094, 095, 394)

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 06308600

Washer, Locking .31 x .078 Regular (094, 095, 394)
(Superseded to 06300119)

Note: (094, 095, 394)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06437200

Washer, Flat Steel .344 x .688 x .065 (094, 095, 394)
(Superseded to 06401017)

Note: (094, 095, 394)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06529500

Nut, Hex .312-24 (094, 095, 394)
(Superseded to 06500939)

Note: (094, 095, 394)

$2.49

$

Usually ships in 4-12 days

0

27

Gravely 05963600

Bolt Hex .31-24 x 1.00 Grade 5 (094, 095, 394)

Note: (094, 095, 394)

$2.99

$

Usually ships in 4-12 days

0

28

Gravely 06005500

Screw, Set .31-18 x .38 Socket Head (094, 394)

Note: (094, 394)

$3.49

$

In Stock, only 2 left!

0
