911397 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 000101 - 021999) Mower Pan And Bag Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kawasaki

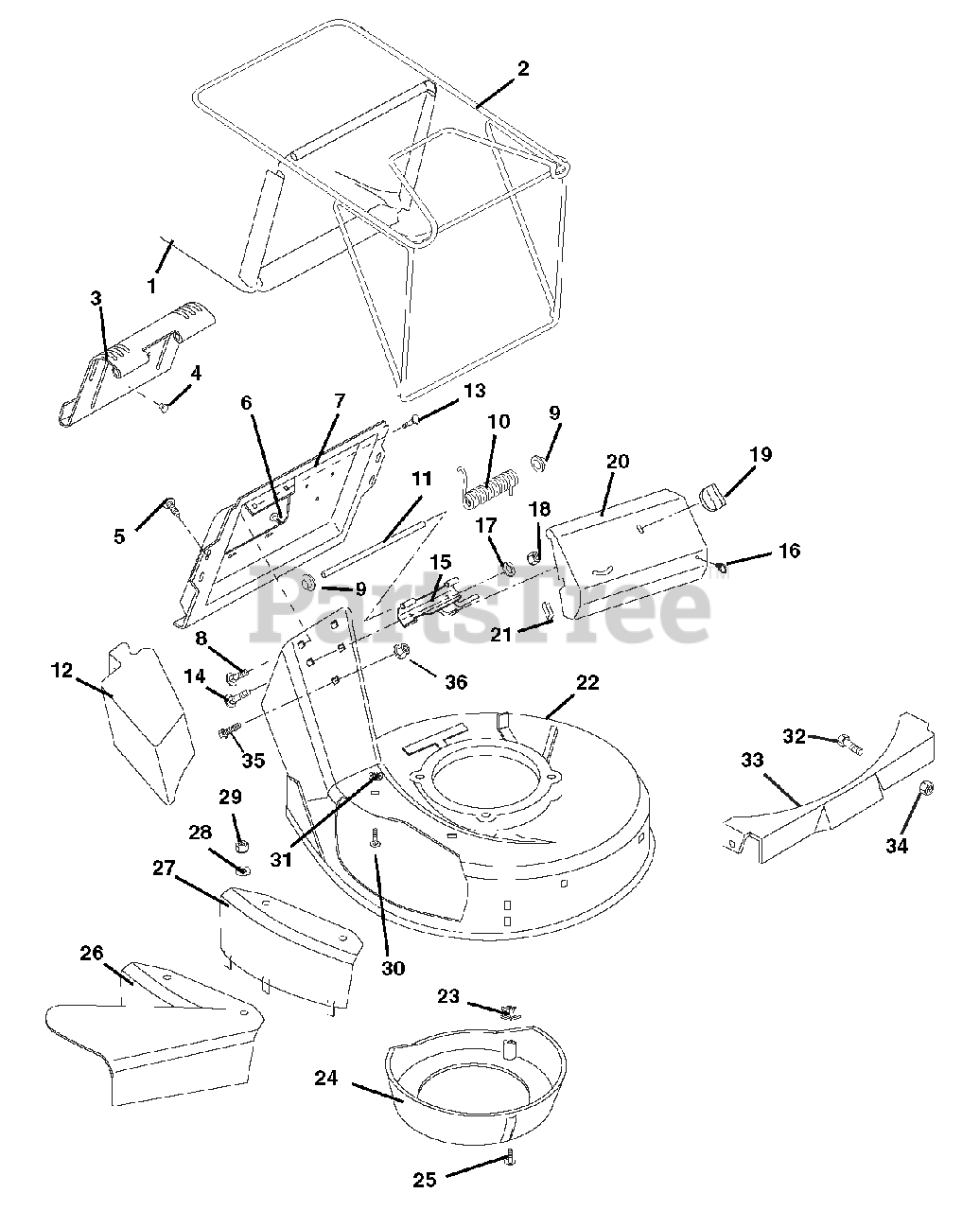

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01180500

BAG, CONSUMER BLACK 15 OZ/YD2

$116.99

$

In Stock, only 1 left!

0

2

Ariens 01241851

FRAME, WBLM BAGGER

$142.99

$

Usually ships in 4-12 days

0

3

Ariens 01136553

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

Note: (911339, 340)

$1.99

$

In Stock, Qty 20+

0

5

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 12

0

6

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.49

$

Usually ships in 4-12 days

0

7

Ariens 01159753

CATCHER PLATE

$93.99

$

Usually ships in 4-12 days

0

8

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 02215300

PUSH NUT, .25

$1.99

$

In Stock, Qty 17

0

10

Ariens 08322400

SG-TORS .120X.68X3.09

$6.99

$

Usually ships in 4-12 days

0

11

Ariens 01141000

DOOR PIN

$13.99

$

Usually ships in 4-12 days

0

12

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$51.99

$

In Stock, only 4 left!

0

13

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

14

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 01155553

HINGE BASE WELDEMENT

$37.99

$

Usually ships in 4-12 days

0

16

Ariens 01166500

SNAP-IN CLIP

Note: (911340)

$

$

Not available

17

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

18

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 7

0

19

Ariens 01159300

WING - NUT

$6.99

$

In Stock, only 2 left!

0

20

Ariens 01158853

COVER, DRIVE

Note: (911339, 340)

$41.99

$

Usually ships in 4-12 days

0

20

Ariens 04042453

COVER, LM DRIVE

Note: (911397)

$51.99

$

Usually ships in 4-12 days

0

21

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (911339, 340)

$6.99

$

Usually ships in 4-12 days

0

22

Ariens 51107500

MOWER PAN HEAD W/SFTYDECALS SP

$

$

Not available

23

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

24

Ariens 01173700

CENTER BAFFLE

$45.99

$

Usually ships in 4-12 days

0

25

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$1.99

$

Usually ships in 4-12 days

0

26

Ariens 01180200

SIDE DISCHARGE ASSEMBLY

$35.99

$

In Stock, only 1 left!

0

27

Ariens 01180351

COVER, SIDE DISCHARGE

$28.99

$

In Stock, only 4 left!

0

28

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

30

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

31

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

32

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (911339)

$2.99

$

In Stock, only 4 left!

0

33

Ariens 01183553

PANEL-FRONT

Note: (911339)

$79.99

$

Usually ships in 4-12 days

0

34

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 05967000

@BLT-HEX .38-16X.50 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0
