911397 (LM 21 SW) - Ariens 21" Self-Propelled Walk-Behind Mower, Kawasaki (SN: 030000 & Above) Mower Pan And Bag Parts Diagram

21" Self-Propelled Walk-Behind Mower, Kawasaki

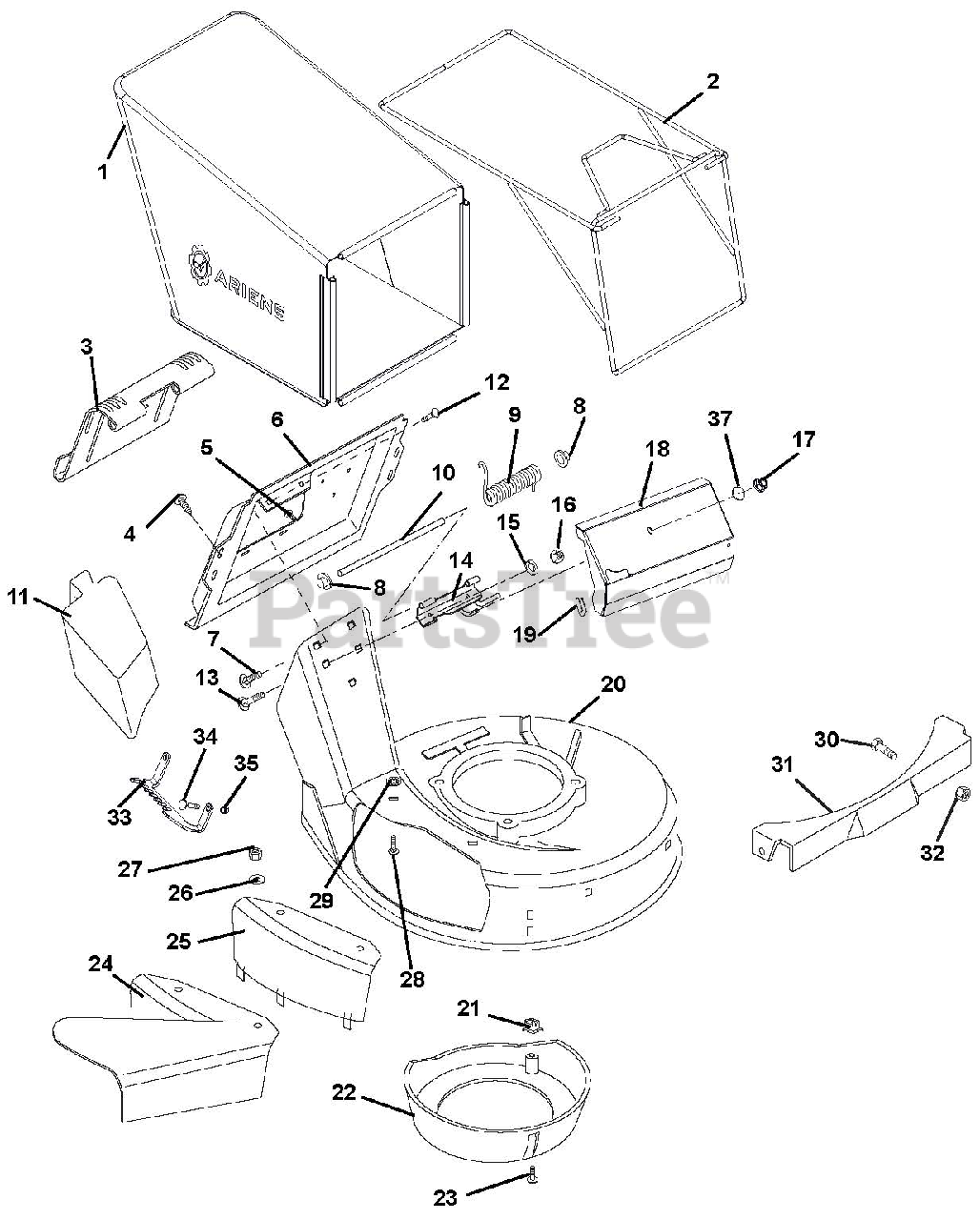

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 05088500

BAGGER-GRASS-ARIENS

$29.99

$

In Stock, Qty 10

0

2

Ariens 04718951

FRAME, BAGGER

$142.99

$

Usually ships in 4-12 days

0

3

Ariens 01136559

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

5

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 01159759

CATCHER PLATE

$84.99

$

Usually ships in 4-12 days

0

7

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 15

0

9

Ariens 08322400

SG-TORS .120X.68X3.09

$7.49

$

Usually ships in 4-12 days

0

10

Ariens 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

11

Ariens 01163500

MULCH MASTER PLUG
(Superseded to 71102700)

$52.99

$

In Stock, only 3 left!

0

12

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

Note: (911339, 340)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

14

Ariens 01155559

HINGE BASE WELDMENT

$42.99

$

Usually ships in 4-12 days

0

15

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

16

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

17

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 04757359

COVER, LM BRIGGS CE DRIVE

Note: (911339, 340)

$

$

Not available

18

Ariens 04042459

COVER, LM DRIVE

Note: (911397)

$65.99

$

Usually ships in 4-12 days

0

19

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

Note: (911339, 340)

$7.49

$

Usually ships in 4-12 days

0

20

Ariens 51107500

MOWER PAN HEAD W/SFTYDECALS SP

$

$

Not available

21

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

22

Ariens 01173700

CENTER BAFFLE

$46.99

$

Usually ships in 4-12 days

0

23

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.49

$

Usually ships in 4-12 days

0

24

Ariens 01180200

SIDE DISCHARGE ASSEMBLY

Note: (911339, 340)

$36.99

$

In Stock, Qty 5

0

25

Ariens 01180351

COVER, SIDE DISCHARGE

$46.99

$

In Stock, only 2 left!

0

26

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

Note: (911339, 340)

$2.99

$

In Stock, Qty 20+

0

28

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

Note: (911397)

$2.99

$

In Stock, Qty 20+

0

29

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (911339)

$3.49

$

In Stock, Qty 15

0

31

Ariens 01183559

PANEL-FRONT

Note: (911339)

$79.99

$

Usually ships in 4-12 days

0

32

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (911339)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 04731600

BRKT, SPD SELECTION

$26.99

$

Usually ships in 4-12 days

0

34

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (911339, 340)

$0.99

$

In Stock, only 3 left!

0

37

Ariens 06433600

WSHR-FL-NY .375X.75X.060

Note: (911340, 397)

$0.99

$

In Stock, Qty 10

0
