9114-1 - Craftsman 1,400 Watt Portable Generator Sheet Metal Assembly (10/95) Parts Diagram

1,400 Watt Portable Generator

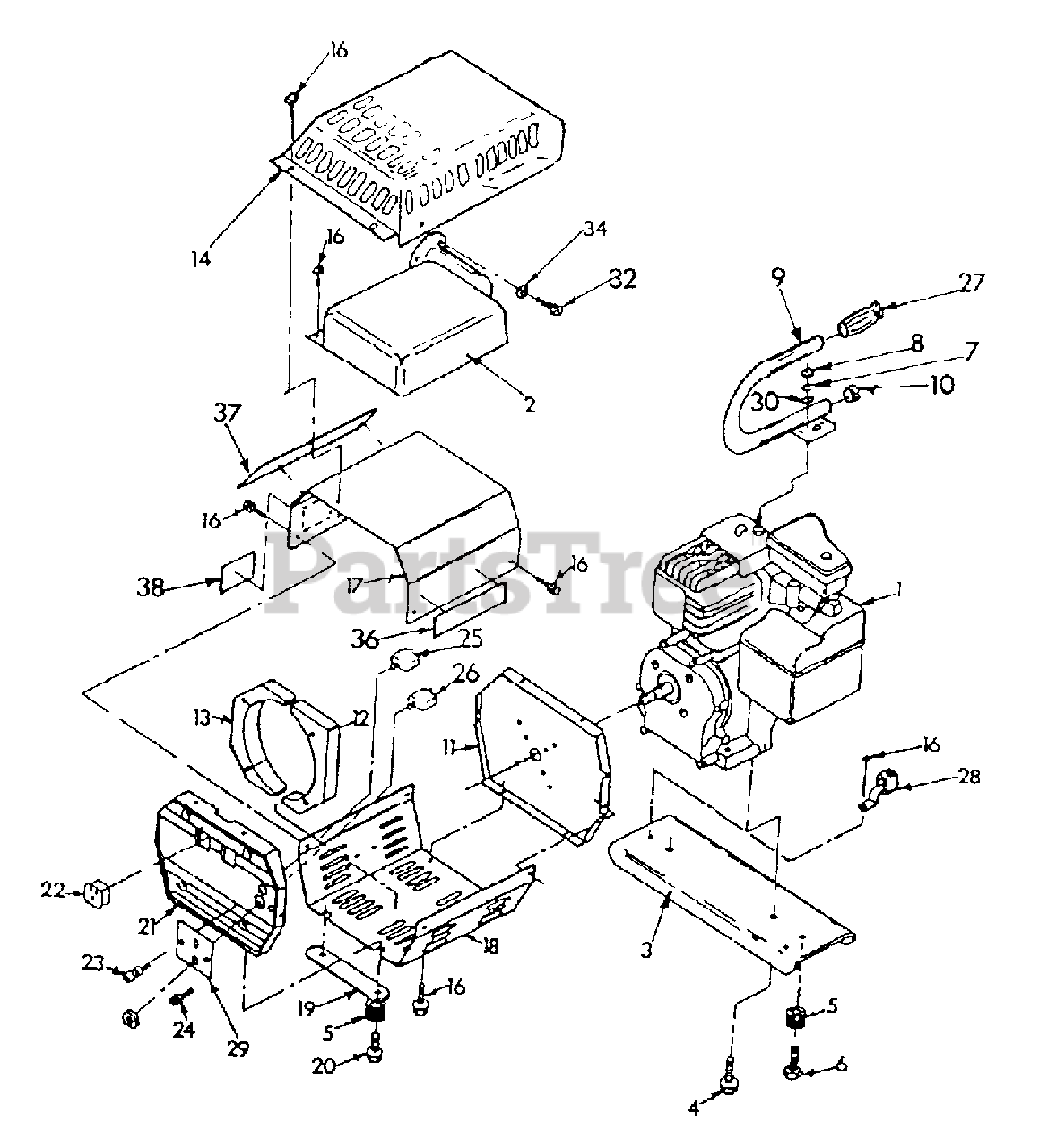

Sheet Metal Assembly (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 76928

ENGINE ASSEMBLY - BRIGGS & STRATTON MODEL - 80212-8702-01

$

$

Currently unavailable

2

Briggs & Stratton 75788

MUFFLER, 3 H.P. BRIGGS & STRATTON
(Superseded to 75788GS)

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 75926

SUPPORT, ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 59637

SCREW TAPTITE - 3/8-16 X 3/4"

$

$

Not available

5

Briggs & Stratton 70409

MOUNT, VIBRATION

$

$

Not available

6

Briggs & Stratton 24910

SCREW TAPTITE - 5/16-18 X 1/2"

$

$

Not available

7

Briggs & Stratton 22129

LOCK WASHER - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22259

HEX NUT - 5/16" - 18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 77085

CARRYING HANDLE
(Superseded to 7077085YP)

$91.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 76203

END CAP

$

$

Currently unavailable

11

Briggs & Stratton 60209A

ADAPTOR, SHEET METAL

$

$

Currently unavailable

12

Briggs & Stratton 58887A

BAFFLE, GENERATOR AIR - RH

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, GENERATOR AIR - LH

$

$

Currently unavailable

14

Briggs & Stratton 76729

COVER, HEAD

$

$

Currently unavailable

16

Briggs & Stratton 56892

SCREW CRIMPTITE NO. 10 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 58875D

WRAPPER, GENERATOR UPPER

$

$

Currently unavailable

18

Briggs & Stratton 58876A

WRAPPER, GENERATOR LOWER

$

$

Currently unavailable

19

Briggs & Stratton 66856

SUPPORT, PANEL

$

$

Not available

20

Briggs & Stratton 59634

SCREW PLASTIC - 1/4 X 1"

$

$

Not available

21

Briggs & Stratton 75918

END PANEL

$

$

Not available

22

Briggs & Stratton 58888

RECEPTACLE, 120 VOLTS AC

$

$

Not available

23

Briggs & Stratton 25368

TERMINAL, BATTERY CHARGE - BLACK

$

$

Not available

24

Briggs & Stratton 25367

TERMINAL, BATTERY CHARGE - RED
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 75207B

CIRCUIT BREAKER 10 AMP
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207C

CIRCUIT BREAKER 12 AMP
(Superseded to 75207CGS)

$10.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 75928

GRIP, HANDLE
(Superseded to 75928GS)

$

$

Not available

28

Briggs & Stratton 25433

LUG, GROUNDING

Note: SEE "GROUNDING THE GENERATOR"

$

$

Not available

29

Briggs & Stratton 75922A

DECAL - BATTERY CHARGE

$

$

Currently unavailable

30

Briggs & Stratton 22145

FLAT WASHER 5/16-M8

$

$

Not available

31

Briggs & Stratton 36781

CAPSCREW, SOCKET HEAD - 1/4-20

$

$

Currently unavailable

32

Briggs & Stratton 55635

FLAT WASHER - SPECIAL

$

$

Currently unavailable

32

Briggs & Stratton A25383

CABLE, BATTERY CHARGE

Note: NOT SHOWN

$

$

Currently unavailable

Briggs & Stratton 79556

MANUAL
(Superseded to 7079556YP)

Note: NOT SHOWN

$70.99

$

Usually ships in 2-12 days

0

34

UNKNOWN

$

$

Not available

36

UNKNOWN

$

$

Not available

37

UNKNOWN

$

$

Not available

38

UNKNOWN

$

$

Not available
