911400 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) Mower Pan And Bag Parts Diagram

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

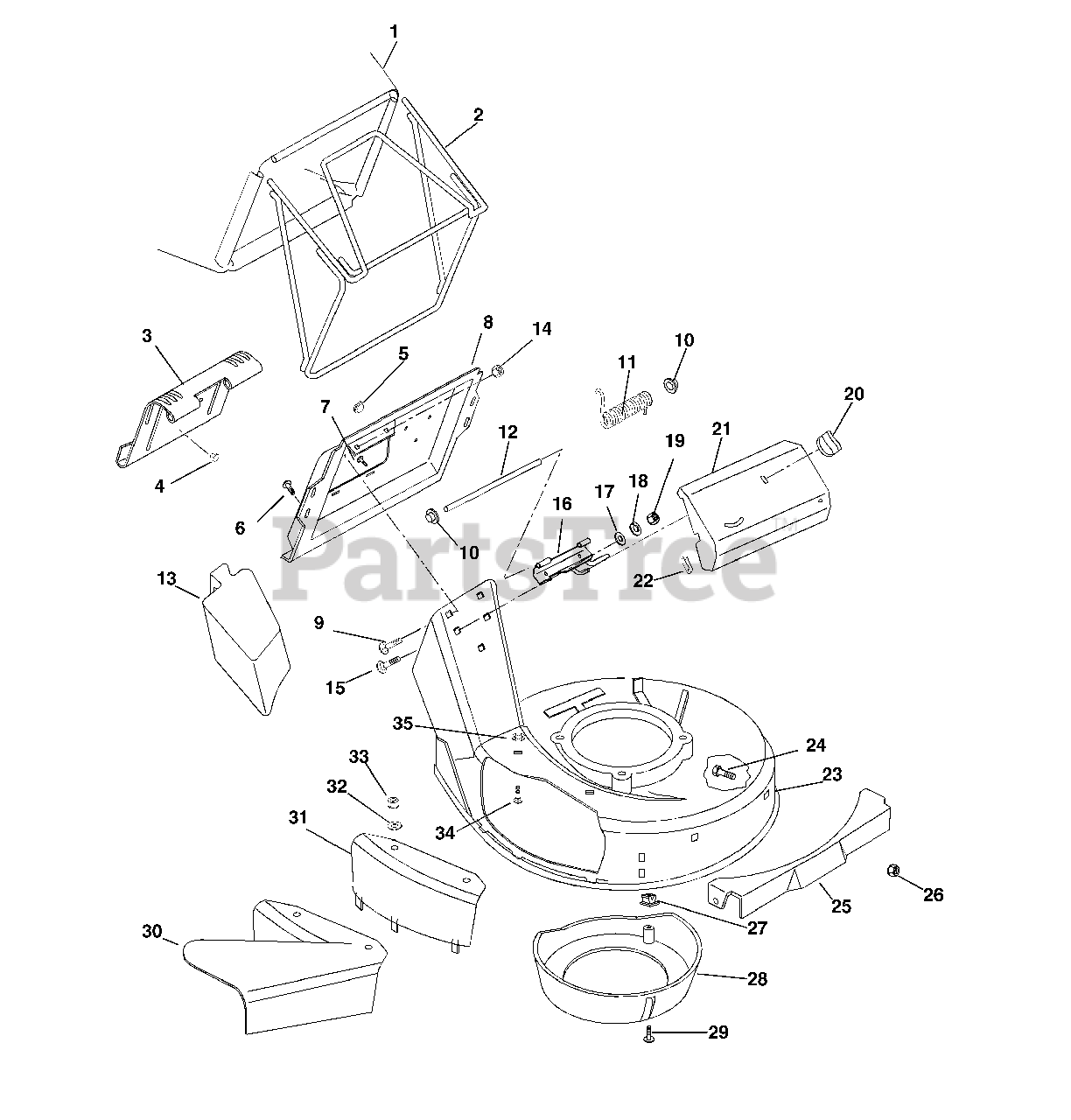

Mower Pan And Bag Parts Diagram

  • Title

1

Ariens 01194800

BAG, GRASS MACK
(Superseded to 01180500)

$118.99

$

In Stock, Qty 5

0

2

Ariens 01138751

FRAME, BAGGER
(Superseded to 01241851)

$145.99

$

Usually ships in 4-12 days

0

3

Ariens 01136557

CATCHER PLATE DOOR

$

$

Not available

4

Ariens 07516000

BUTTON BUMPER

$1.49

$

In Stock, only 2 left!

0

5

Ariens 07511800

BUMPER

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 5

0

7

Ariens 07414900

SCR-TAP 10-24X.375 TORX PHD YZ

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 01159757

CATCHER PLATE

$

$

Not available

9

Ariens 06203900

@BLT-RHDSSQNK .25-20X.38 G2YZ

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 02215300

PUSH NUT, .25

$2.49

$

In Stock, Qty 15

0

11

Ariens 08322400

SG-TORS .120X.68X3.09

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 01141000

DOOR PIN

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 71102700

MULCH MASTER MULCHER ACCESSORY

$52.99

$

In Stock, only 3 left!

0

14

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 01155557

HINGE BASE WELDMENT

Note: (Model 401)

$

$

Not available

Ariens 01138257

HINGE BASE

Note: (Model 400)

$

$

Not available

17

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

18

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

Usually ships in 4-12 days

0

19

Ariens 06533200

@NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 8

0

20

Ariens 01159300

WING - NUT

Note: (Model 401)

$

$

Not available

21

Ariens 01158857

COVER, DRIVE

Note: (Model 401)

$

$

Not available

22

Ariens 01155400

TRIM BUMPER
(Superseded to 01177300)

$7.49

$

Usually ships in 4-12 days

0

23

Ariens 51108100

MOWER PAN W/SFTY DCLS MACK SP

Note: (Model 401)

$

$

Not available

Ariens 51108000

MOWER PAN W/SFTY DCLS MACK PSH

Note: (Model 400)

$

$

Not available

24

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

Note: (Model 400)

$3.49

$

In Stock, Qty 15

0

25

Ariens 01183557

PANEL, FRONT

Note: (Model 400)

$

$

Not available

26

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (Model 400)

$1.99

$

In Stock, Qty 20+

0

27

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

28

Ariens 01173700

CENTER BAFFLE

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 07415000

SCR-TAP 10-16X.62 SLPH AB YWZC

$2.49

$

Usually ships in 4-12 days

0

30

Ariens 01180200

SIDE DISCHARGE ASSEMBLY

$36.99

$

In Stock, Qty 6

0

31

Ariens 01180351

COVER, SIDE DISCHARGE

$46.99

$

In Stock, only 2 left!

0

32

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.99

$

In Stock, Qty 20+

0

35

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0
