911400 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above)

21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton

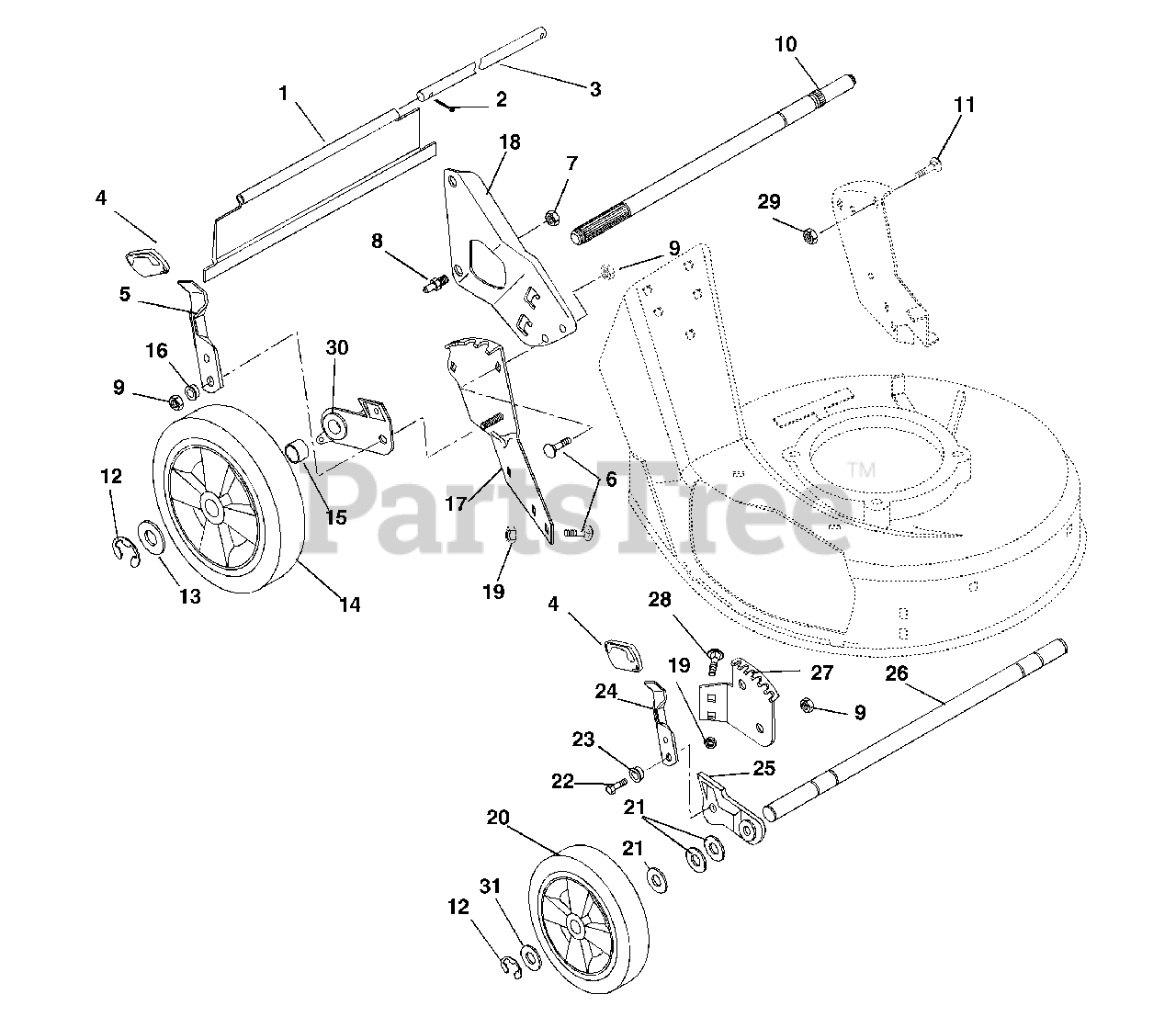

911400 (LM 21) - Ariens 21" Push Walk-Behind Mower, 6.5hp Briggs & Stratton (SN: 000101 & Above) > Parts Diagrams (5) > Wheels And Adjusters

  • Title
07522300

1

REAR PROTECTIVE GUARD, S.P.

Part# 07522300

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

07522400

1

REAR PROTECTIVE GUARD, PUSH

Part# 07522400

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

06712400

2

@PIN-CTR .06X.50 EXTPRSQCT YWZ

Part# 06712400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

01140000

3

ROD

Part# 01140000 (Superseded to 01140067)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

07513600

4

KNOB

Part# 07513600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01130600

5

HEIGHT ADJUSTMENT LEVER

Part# 01130600 (Superseded to 01242000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

06212200

6

@BLT-RHDSSQNK .31-18X.62 G5YZ

Part# 06212200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06529600

7

@NUT-LK-CTR .38-16 YWZC

Part# 06529600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01167100

8

HANDLEBAR STUD

Part# 01167100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

06529800

9

@NUT-LK-CTR .31-18 YWZC

Part# 06529800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01149500

10

REAR AXLE,5/8 DIA

Part# 01149500

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

01171900

10

REAR AXLE-PUSH MOWER MM

Part# 01171900

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

06221800

11

BLT-RDHDSQNK .31-18X1.0 SHTYZ

Part# 06221800 (Superseded to 06200007)

OEM Warranty Repair Part for Ariens

Not available

05710200

12

RG-RTNG-EXT .500X.042 (E)

Part# 05710200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05710200

12

RG-RTNG-EXT .500X.042 (E)

Part# 05710200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06436600

13

WSHR-FL-STL .505X.880X.072 YWZ

Part# 06436600

OEM Warranty Repair Part for Ariens

Not available

07151200

14

WHL, LH 10.50"

Part# 07151200 (Superseded to 51115900)

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $86.03

07151500

14

WHL, RH 10.50"

Part# 07151500 (Superseded to 51115900)

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $86.03

07103900

14

10 1/2 TIRE SKIN

Part# 07103900 (Superseded to 51115900)

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $86.03

07152500

14

TIRE, REAR 10X1.75 #6 GRAY

Part# 07152500 (Superseded to 51116200)

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $86.03

01149600

15

SPACER TUBE, SELF PROPEL

Part# 01149600

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01149700

15

SPACER TUBE,PUSH LH

Part# 01149700

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

01149800

15

SPACER TUBE PUSH RH

Part# 01149800

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05514800

16

BSHG-FLG .32X.500X.344X.880

Part# 05514800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01154251

17

QUADRANT, REAR LH

Part# 01154251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $49.14

01154351

17

QUADRANT, REAR RH

Part# 01154351

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

01137251

18

RH HANDLEBAR MTG. BRKT

Part# 01137251

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

01137151

18

LH HANDLEBAR MTG. BRKT

Part# 01137151

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $49.14

06530400

19

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Not available

07149900

20

WHL 7.50" .50 BORE, 1.50 HUB

Part# 07149900

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.87

07152400

20

TIRE, FRONT 7X1.50

Part# 07152400

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $44.66

06441100

21

WSHR-FL-STL .52X.827X.062 YWZC

Part# 06441100

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05946900

22

@BLT-HEX .31-18X1.00 GR5 YWZC

Part# 05946900

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05514800

23

BSHG-FLG .32X.500X.344X.880

Part# 05514800

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01120000

24

FRONT HEIGHT ADJUSTMENT LEVER

Part# 01120000

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

01119800

25

LEFT ADJUSTOR BRACKET ASSEMBLY

Part# 01119800

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

01119900

25

RIGHT ADJUSTOR BRACKET ASSEMBL

Part# 01119900

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $36.84

01168900

26

FRONT AXLE

Part# 01168900

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

01154051

27

FRONT QUADRANT, LH

Part# 01154051

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

01154151

27

FRONT QUADRANT, RH

Part# 01154151

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $24.54

06222000

28

@BLT-RDHDSQNK .31-18X.50 G5YZ

Part# 06222000

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06530200

29

@NUT-LK-NYL .312-18 YWZC

Part# 06530200

OEM Warranty Repair Part for Ariens

Not available

01130700

30

REAR ADJUSTMENT BRACKET L.H.

Part# 01130700

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.92

01150400

30

REAR BRACKET & BEARING ASSY RH

Part# 01150400

Note: (Model 401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $100.56

01131300

30

REAR BRACKET & BEARING ASSEMBL

Part# 01131300

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.52

01131200

30

REAR BRACKET & BEARING ASSEMBL

Part# 01131200

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.52

06436600

31

WSHR-FL-STL .505X.880X.072 YWZ

Part# 06436600

Note: (Model 400)

OEM Warranty Repair Part for Ariens

Not available
