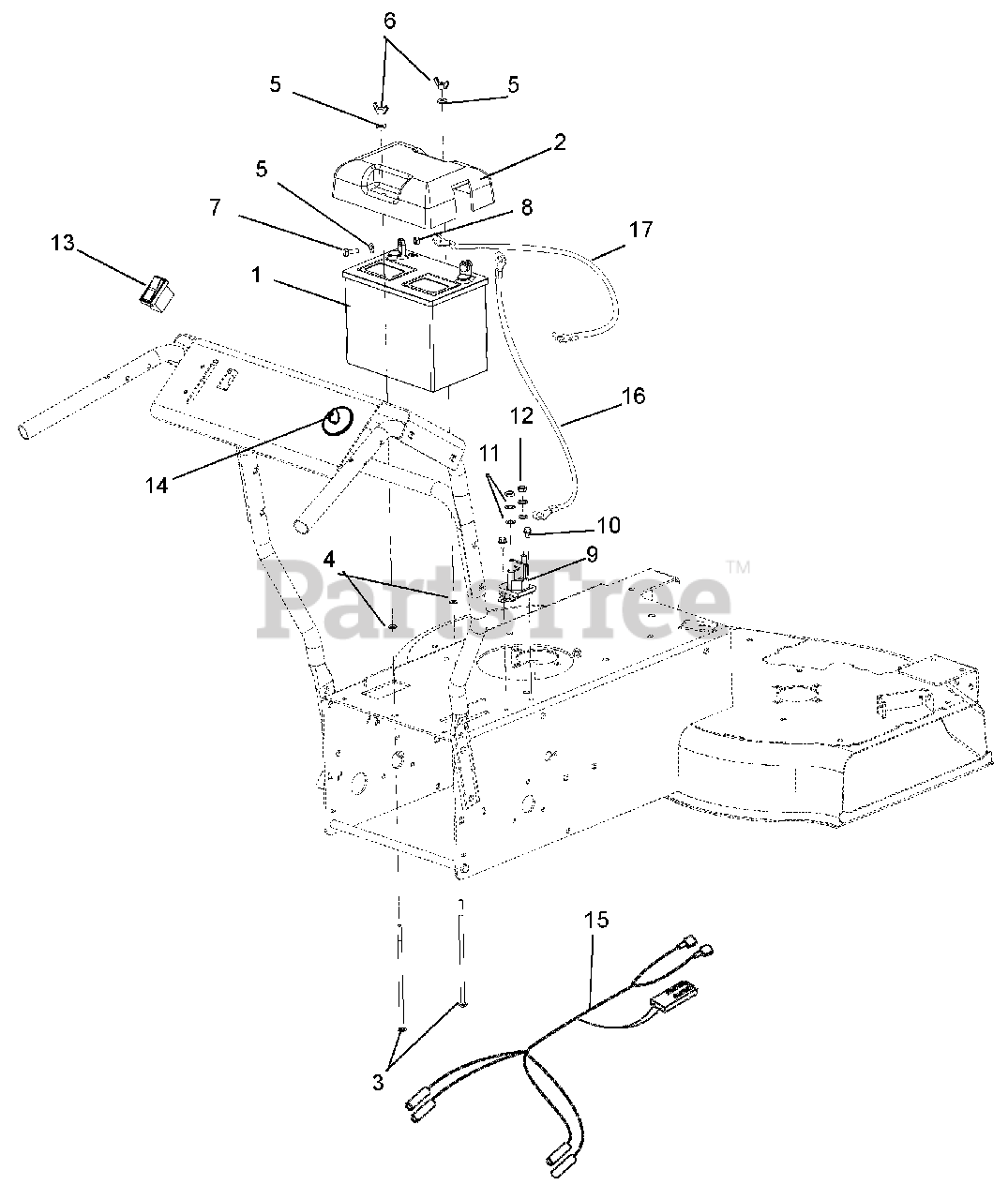

911403 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear (SN: 000101 - 001999) Electrical Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear

Electrical Parts Diagram

  • Title

1

Ariens 03292500

BATTERY-SLI U1B-165

$

$

Not available

2

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

3

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$4.49

$

In Stock, Qty 7

0

4

Ariens 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 11

0

5

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

6

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 9

0

7

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

8

Ariens 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.49

$

In Stock, Qty 5

0

9

Ariens 00696900

SOLENOID, HP RTV
(Superseded to 59223400)

$60.99

$

In Stock, Qty 18

0

10

Ariens 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$0.99

$

In Stock, Qty 7

0

11

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

12

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 8

0

13

Ariens 03272600

SWITCH-ROCKER, MOMENTARY
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

14

Ariens 03277000

KEYSWITCH-IGNITION 3 POS

$22.99

$

Usually ships in 4-12 days

0

15

Ariens 03263001

HARNESS - WAW WIRING

$55.99

$

Usually ships in 4-12 days

0

16

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 2 left!

0

17

Ariens 02974600

GROUND CABLE

$21.99

$

Usually ships in 4-12 days

0
