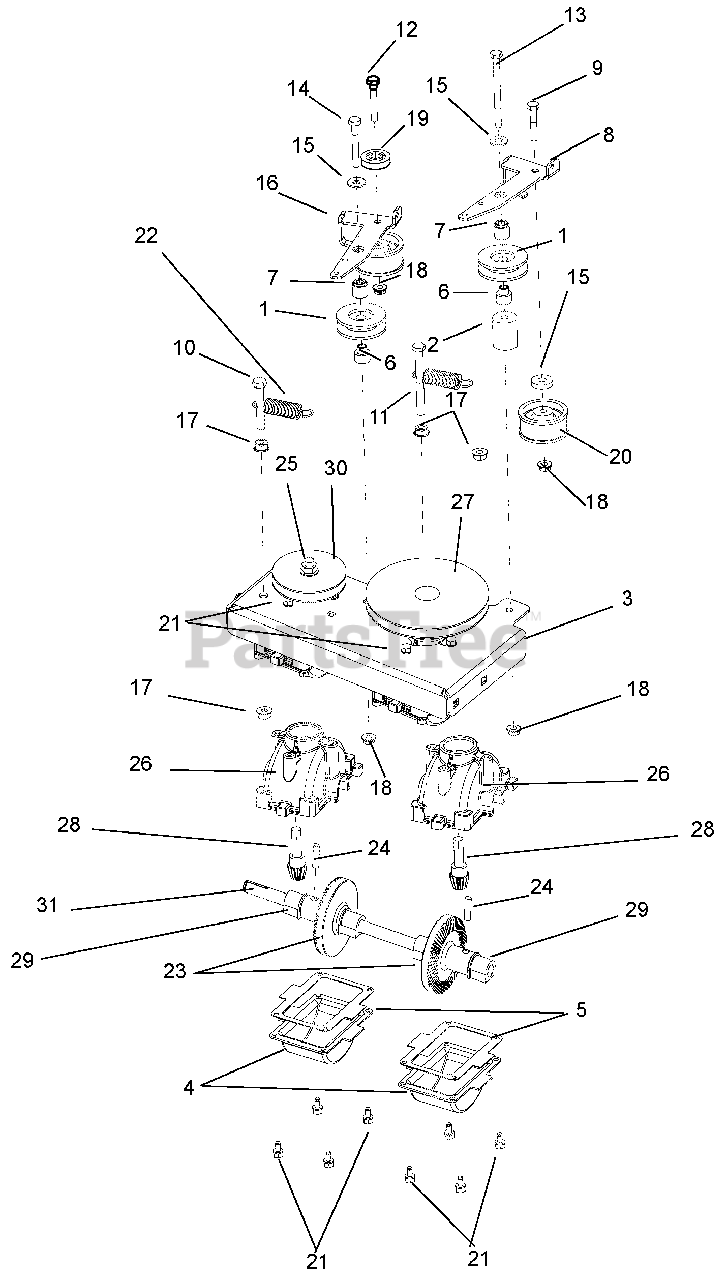

911403 - Ariens 34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear (SN: 000101 - 001999) Transmission Parts Diagram

34" Walk-Behind Mower, 10.5hp Briggs & Stratton, Gear

Transmission Parts Diagram

  • Title

1

Ariens 00444400

IDLER, 3L FRONT SIDE .38X1.875

$22.99

$

Usually ships in 4-12 days

0

2

Ariens 01247300

SPACER, REVERSE IDLER

$15.99

$

Usually ships in 4-12 days

0

3

Ariens 03264551

PLATE-MOUNT, TRANS

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 01255251

SUMP, GEARBOX

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

6

Ariens 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

7

Ariens 01259000

SPACER, IDLER ARM

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 03279300

BRKT-TRANS IDLER ARM

$23.99

$

Usually ships in 4-12 days

0

9

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 8

0

10

Ariens 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 12

0

11

Ariens 05948000

@BLT-HEX .31-18X3.50 GR5 YWZC

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 05964700

@BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, only 3 left!

0

13

Ariens 05965300

@BLT-HEX .25-20X3.25 YWZC

$1.99

$

Usually ships in 4-12 days

0

14

Ariens 05967100

@BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 10

0

16

Ariens 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

Usually ships in 4-12 days

0

17

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 4 left!

0

18

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 13

0

19

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, only 4 left!

0

20

Ariens 07300435

PULLEY, ILDER .25X1.875X.97

$20.99

$

Usually ships in 4-12 days

0

21

Ariens 07400033

SCR-TAP 10-24X.375 PRE-COAT 80

$0.99

$

In Stock, Qty 20+

0

22

Ariens 08300435

SPRG, TENSION .063X.625X2.50

$9.49

$

Usually ships in 4-12 days

0

23

Ariens 01259600

GEAR, BEVEL (CU INFILTRATE)

Note: (CU Infiltrate)

$

$

Not available

24

Ariens 05800135

PIN, .250 X 1.0 SPRING

$3.99

$

Usually ships in 4-12 days

0

25

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 01255000

HOUSING, WBLM GEAR BOX

$67.99

$

Usually ships in 4-12 days

0

27

Ariens 01247500

PULLEY, WAW REVERSE INPUT

$68.99

$

Usually ships in 4-12 days

0

28

Ariens 01255500

PINION, GEARBOX INPUT

$64.99

$

In Stock, only 1 left!

0

29

Ariens 01255300

BUSHING, TRANS OUTPUT SHAFT

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 01285900

PULLEY, B.R. TRANS INPUT

$51.99

$

Usually ships in 4-12 days

0

31

Ariens 51113300

KIT, WAW TRANS SHAFT SERVICE
(Superseded to 51113500)

Note: (Contains a new transmission shaft and two item 24 and eight item 21.)

$209.99

$

Usually ships in 4-12 days

0

32

Ariens 51113000

KIT, WAW TRANSMISSION
(Superseded to 51113900)

Note: (Includes transmission shaft and items 3, 4, 5, 21, 23, 24, 25, 26, 27, 28, 29, 30)
