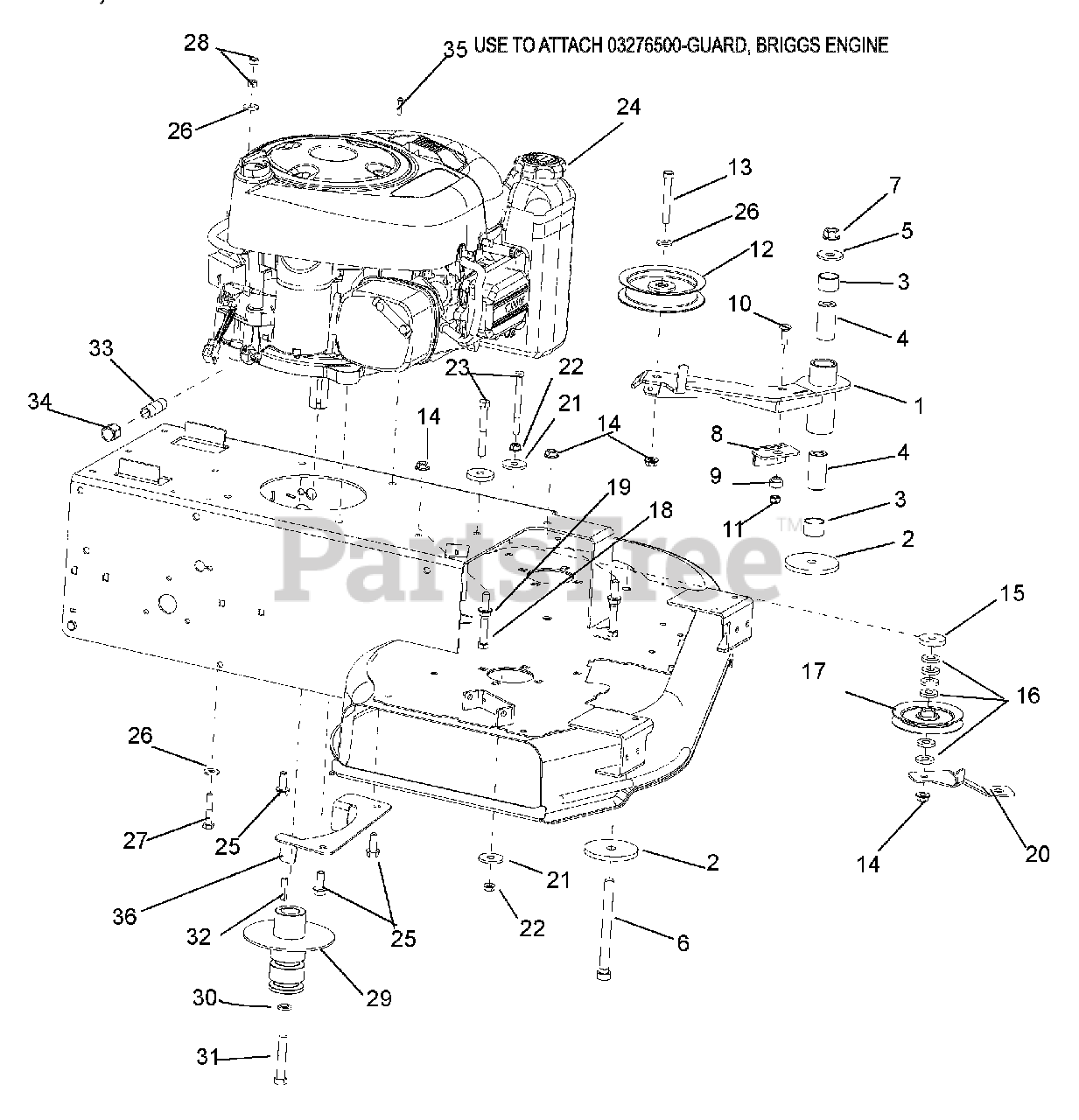

911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Engine, Clutch And Idler Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

Engine, Clutch And Idler Parts Diagram

  • Title

1

Gravely 01286551

WMT-ARM, PTO IDLER

$

$

Not available

2

Gravely 06400011

WASHER, FLAT .531X3.000X.25

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

4

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

7

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 01248800

ASSEMBLY-BRAKE PAD
(Superseded to 01291250)

$87.99

$

Usually ships in 4-12 days

0

9

Gravely 05500833

BUSHING-FLANGE

$

$

Not available

10

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

12

Gravely 07300006

IDLER, FLAT .38X4.00X1.06
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

13

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

14

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06443800

WSHR,FL-STL.43X1.00X.160 ZC120

$3.99

$

In Stock, only 1 left!

0

17

Gravely 07311400

IDLER-V 4.00 X .38 NWHAMSHR
(Superseded to 07300528)

$40.99

$

In Stock, only 2 left!

0

18

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

19

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 01286751

BRKT-IDLER BRACE

$65.99

$

Usually ships in 4-12 days

0

21

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

22

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

24

Gravely 08200337

ENGINE, WAW 10.5 HP 49 STATE

Note: (404)

$

$

Not available

Gravely 08200336

ENGINE,WAW(07 BUILD-AHEAD CARB

Note: (408)

$

$

Not available

25

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

28

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 01247600

PULLEY, WAW DECK/GROUND DRIVE
(Superseded to 07332500)

$197.99

$

Usually ships in 4-12 days

0

30

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

$14.99

$

In Stock, only 1 left!

0

32

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 12

0

33

Gravely 07001436

3/8X2 SCH40 BLK PIPE NIPPLE

Note: (SN 000101 - 000609)

$

$

Not available

34

Gravely 07001437

3/8 BLK PIPE CAP CZ

Note: (SN 000101 - 000609)

$

$

Not available

35

Gravely 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

$3.99

$

Usually ships in 4-12 days

0

36

Gravely 01286651

BRKT-BELT FINGER

$

$

Not available
