911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Frame And Front Casters Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

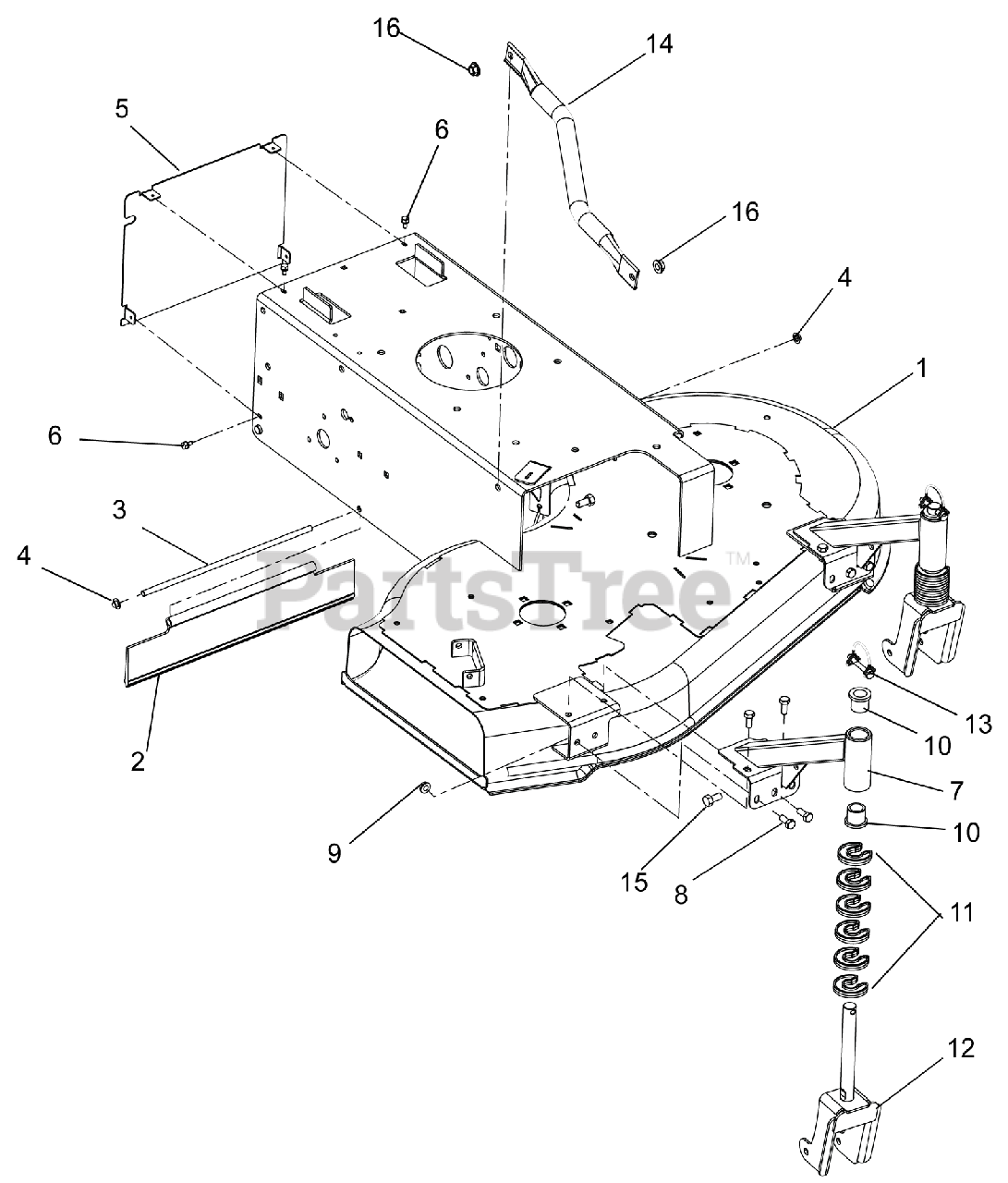

Frame And Front Casters Parts Diagram

  • Title

1

Gravely 01246653

CHASSIS, WAW GRAVELY

$

$

Not available

2

Gravely 07531500

GUARD - REAR - SWIVEL

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 03263700

ROD, TRAILING SHIELD

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 07008200

NUT-PUSH .312 DIA. PAL

$2.99

$

In Stock, Qty 15

0

5

Gravely 03263853

COVER-REAR, WAW

$85.99

$

Usually ships in 4-12 days

0

6

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 12

0

7

Gravely 01246753

WMT-ARM, CASTER

$197.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01591100

BUSHING-1"X.75"X1"

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 03265100

CLIP-HOC FIXED

$3.99

$

In Stock, Qty 18

0

12

Gravely 01248053

FORK, WAW CASTER (WLDMNT)
(Superseded to 04059653)

$70.99

$

In Stock, only 3 left!

0

13

Gravely 06700140

LOCK PIN-.25X1.75
(Superseded to 06700226)

$3.99

$

In Stock, Qty 17

0

14

Gravely 01248551

TUBE-BRACE, DECK

$65.99

$

Usually ships in 4-12 days

0

15

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

16

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
