911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Handlebars Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

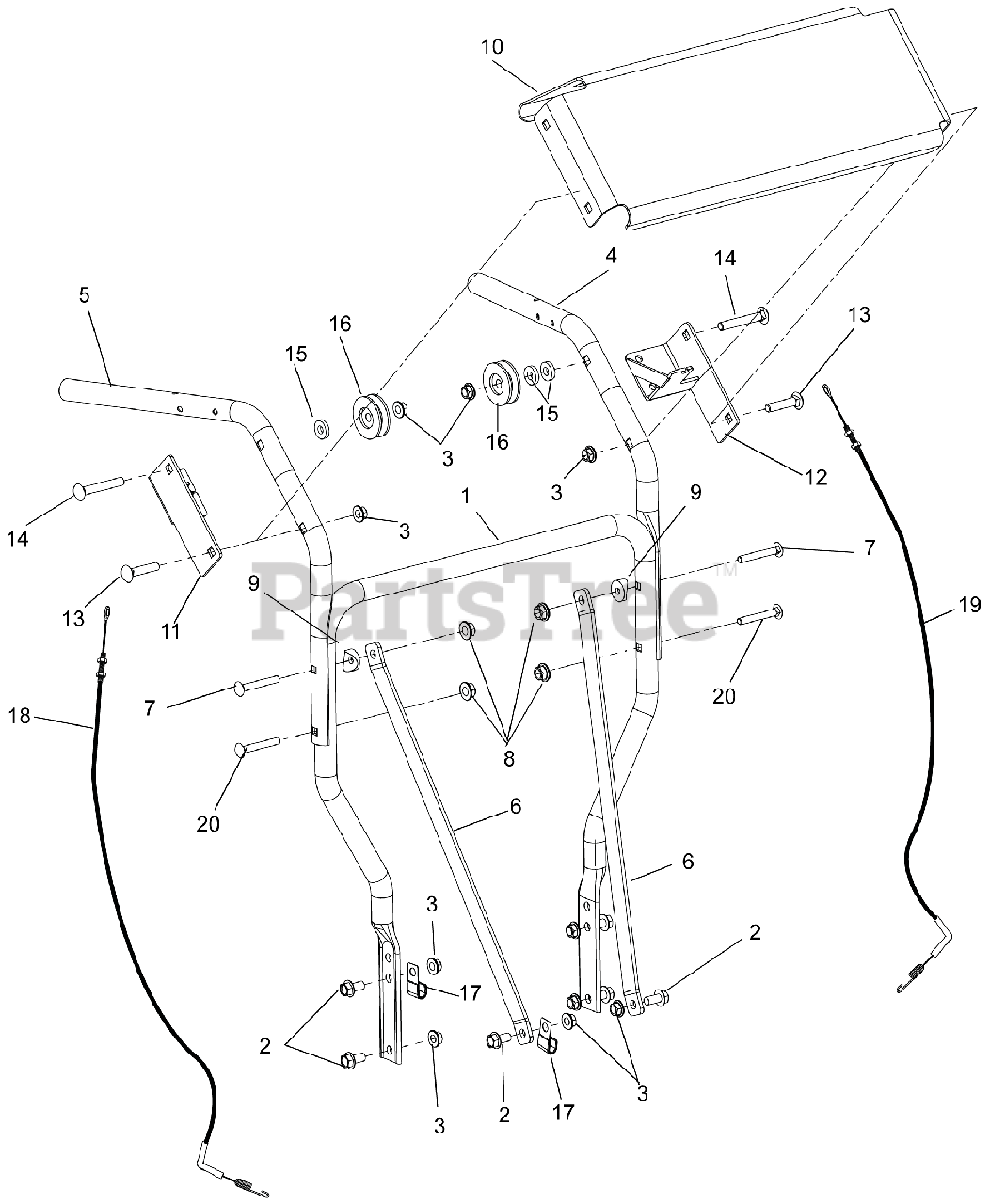

Handlebars Parts Diagram

  • Title

1

Gravely 00373251

HANDLEBAR, LOWER

$102.99

$

Usually ships in 4-12 days

0

2

Gravely 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.99

$

In Stock, only 4 left!

0

3

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01252851

WMT-HANDLEBAR, UPPER LH

$

$

Not available

5

Gravely 01246451

HANDLEBAR, UPPER RH

$145.99

$

Usually ships in 4-12 days

0

6

Gravely 03264351

BRKT-BRACE, HANDLEBARS

$65.99

$

Usually ships in 4-12 days

0

7

Gravely 06221600

BLT-RDHDSQNK .31-18X2.25 G5YZ
(Superseded to 06200408)

$3.49

$

In Stock, Qty 12

0

8

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, only 4 left!

0

10

Gravely 01247851

CONSOLE, WAW

$

$

Not available

11

Gravely 01249451

MOUNT, P-BRAKE CABLE (WLDMNT)

$

$

Not available

12

Gravely 01249351

MOUNT, WAW PTO CABLE (WLDMNT)

$30.99

$

Usually ships in 4-12 days

0

13

Gravely 06223800

BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$4.99

$

In Stock, Qty 11

0

14

Gravely 06224400

BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 06436800

WSHR-FL-STL .390X.88X.18 YWZC

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 00444400

IDLER, 3L FRONT SIDE .38X1.875

$23.99

$

In Stock, only 4 left!

0

17

Gravely 06909400

J-CLAMP

$3.99

$

In Stock, only 4 left!

0

18

Gravely 06900327

CABLE-BRAKE CONTROL

$

$

Not available

19

Gravely 06900326

CABLE-PTO CONTROL

$73.99

$

Usually ships in 4-12 days

0

20

Gravely 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$3.49

$

In Stock, Qty 15

0
