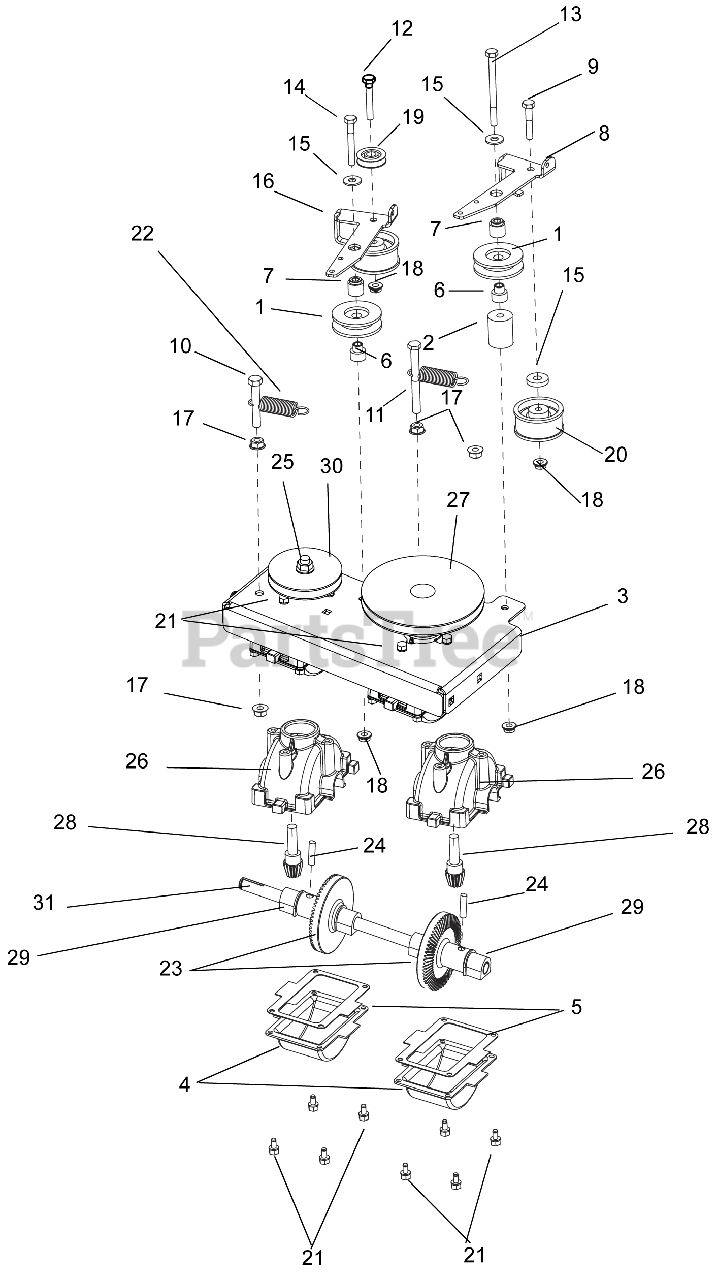

911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Transmission Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

Transmission Parts Diagram

  • Title

1

Gravely 00444400

IDLER, 3L FRONT SIDE .38X1.875

$23.99

$

In Stock, only 4 left!

0

2

Gravely 01247300

SPACER, REVERSE IDLER

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 03264551

PLATE-MOUNT, TRANS

$65.99

$

Usually ships in 4-12 days

0

4

Gravely 01255251

SUMP, GEARBOX

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 01256400

GASKET, TRANSMISSION

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 01258900

SPACER, V-IDLER PULLEY

$3.99

$

In Stock, only 2 left!

0

7

Gravely 01259000

SPACER, IDLER ARM

$3.99

$

In Stock, only 2 left!

0

8

Gravely 03279300

BRKT-TRANS IDLER ARM

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05952500

BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.99

$

In Stock, Qty 8

0

10

Gravely 05957200

BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.99

$

In Stock, Qty 19

0

11

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

12

Gravely 05964700

BLT-HEX .25-20X1.75 GR5 YWZC
(Superseded to 05901935)

$2.49

$

In Stock, Qty 12

0

13

Gravely 05965300

BLT-HEX .25-20X3.25 YWZC

$2.49

$

In Stock, Qty 12

0

14

Gravely 05967100

BLT-HEX .25-20X2.00 GR5 YWZC
(Superseded to 05901740)

$2.99

$

In Stock, only 3 left!

0

15

Gravely 06435800

WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

19

Gravely 07300012

PULLEY, CABLE

$5.49

$

In Stock, Qty 20+

0

20

Gravely 07300435

PULLEY, ILDER .25X1.875X.97

$21.99

$

In Stock, only 1 left!

0

21

Gravely 07400033

SCR-TAP 10-24X.375 PRE-COAT 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 12

0

22

Gravely 08300435

SPRG, TENSION .063X.625X2.50

$9.99

$

Usually ships in 4-12 days

0

23

Gravely 01259600

GEAR, BEVEL (CU INFILTRATE)

Note: (CU Infiltrate)

$

$

Not available

24

Gravely 05800135

PIN, .250 X 1.0 SPRING

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 01255000

HOUSING, WBLM GEAR BOX

$68.99

$

Usually ships in 4-12 days

0

27

Gravely 01247500

PULLEY, WAW REVERSE INPUT

$70.99

$

Usually ships in 4-12 days

0

28

Gravely 01255500

PINION, GEARBOX INPUT

$65.99

$

Usually ships in 4-12 days

0

29

Gravely 01255300

BUSHING, TRANS OUTPUT SHAFT

$6.49

$

Usually ships in 4-12 days

0

30

Gravely 01285900

PULLEY, B.R. TRANS INPUT

$52.99

$

Usually ships in 4-12 days

0

31

Gravely 51113300

KIT, WAW TRANS SHAFT SERVICE
(Superseded to 51113500)

Note: (Contains a new transmission shaft and two item 24 and eight item 21.)

$213.99

$

Usually ships in 4-12 days

0

32

Gravely 51113000

KIT, WAW TRANSMISSION
(Superseded to 51113900)

Note: (Includes transmission shaft and items 3, 4, 5, 21, 23, 24, 25, 26, 27, 28, 29, 30)

$543.99

$

Usually ships in 4-12 days

0
