911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 000101 - 002000) Wheels Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

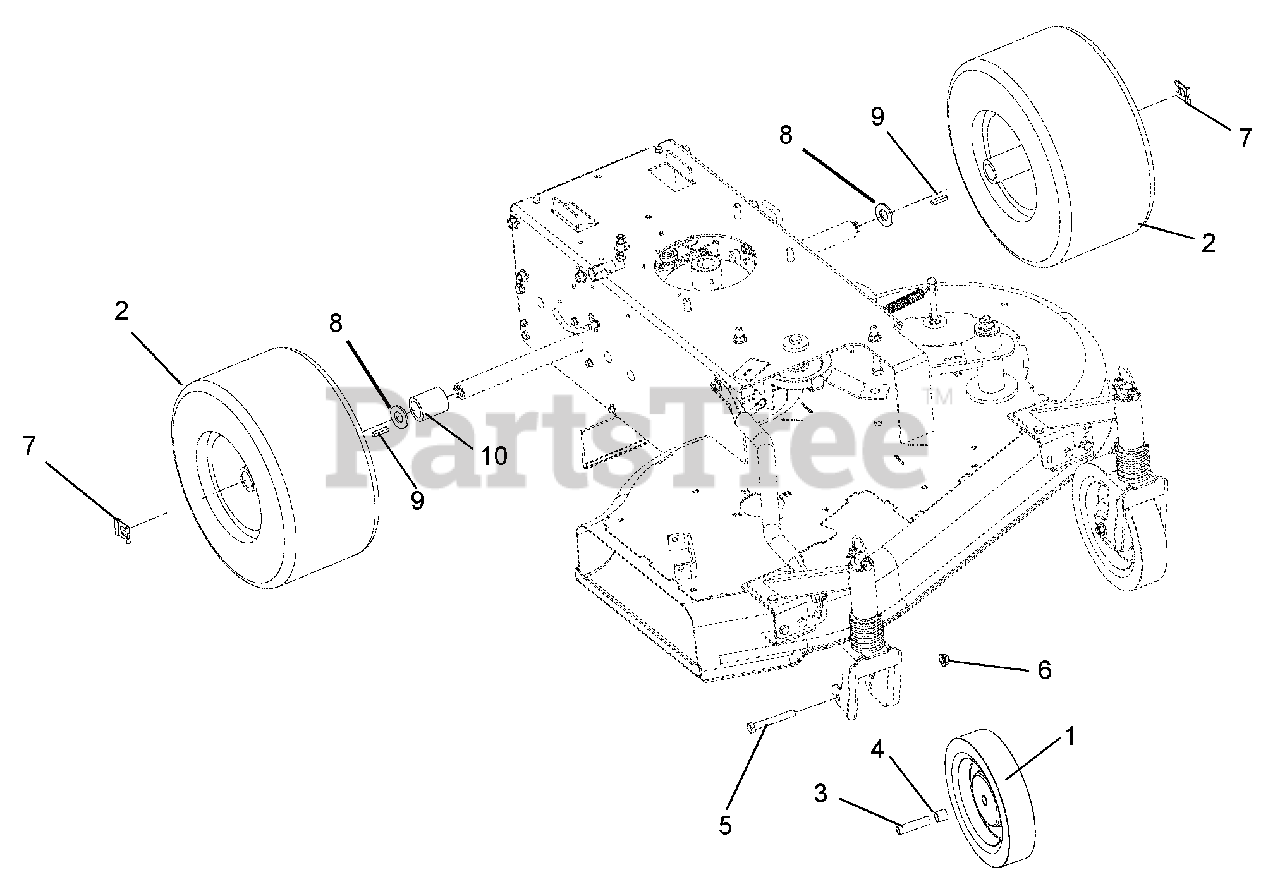

Wheels Parts Diagram

  • Title

1

Gravely 07100739

Wheel, Diamond Tread 8.0 x 1.75 x .50
(Superseded to 07100823)

$34.99

$

In Stock, Qty 20+

0

2

Gravely 07100730

Assembly, Tire/Wheel 6 x 13

$112.99

$

Usually ships in 4-12 days

0

3

Gravely 05533500

Spacer, Wheel

$9.99

$

In Stock, Qty 14

0

4

Gravely 03272100

Spacer, Wheel

$15.99

$

In Stock, Qty 11

0

5

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

6

Gravely 06545500

Nut, Nyloc Flange .38-16
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 05700001

Clip, Snap .625 Diameter

$2.99

$

In Stock, Qty 20+

0

8

Gravely 06442800

Washer, Flat Steel .656 x 1.31 x .095
(Superseded to 06401118)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06600002

Key, Rectifier .25 x .188 x 1.00

$1.49

$

In Stock, Qty 12

0

10

Gravely 05500827

Spacer 1.0 x 1.5 x 1.57

$16.99

$

In Stock, only 2 left!

0
