911404 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton (SN: 002001 & Above) Frame and Front Caster Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton

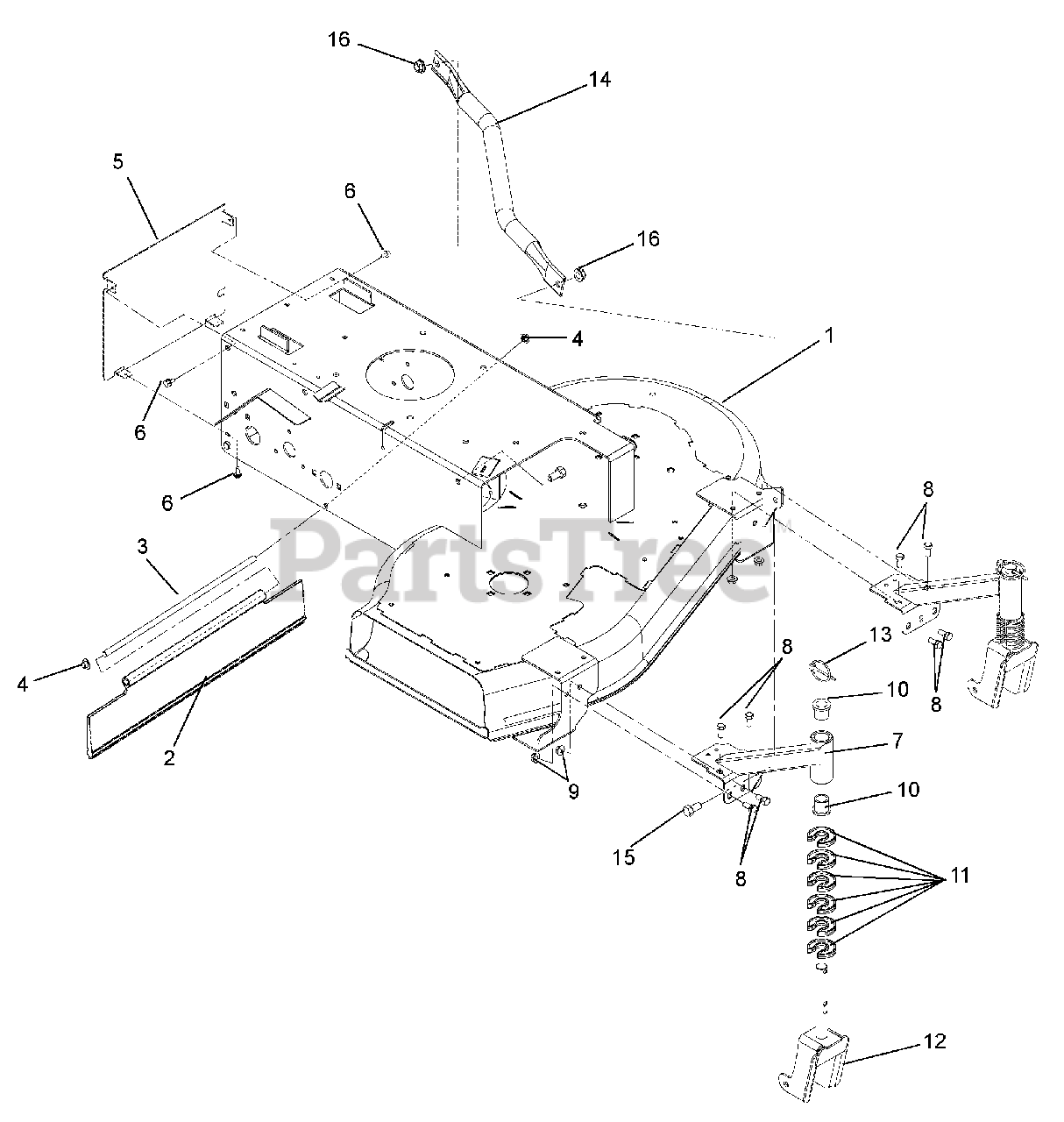

Frame and Front Caster Parts Diagram

  • Title

1

Gravely 01289053

Chassis, Wide Area Walk

$

$

Not available

2

Gravely 07531500

Guard, Rear Swivel

$15.99

$

Usually ships in 4-12 days

0

3

Gravely 03263700

Rod, Trailing Shield

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 07008200

Nut, Push .312 Dia. PAL

$2.99

$

In Stock, Qty 19

0

5

Gravely 03263853

Cover, Rear Chassis

$85.99

$

Usually ships in 4-12 days

0

6

Gravely 07400033

Screw, Tapping 10-24 x .375 Pre-Coat 80
(Superseded to 07400137)

$3.99

$

In Stock, Qty 17

0

7

Gravely 01246753

Weldment, Caster Arm

$197.99

$

Usually ships in 4-12 days

0

8

Gravely 05947000

Bolt, Hex .31-18 x .75
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 01591100

Bushing 1.00 x .75 x 1.00

$10.99

$

Usually ships in 4-12 days

0

11

Gravely 03265100

Clip, HOC Fixed

$3.99

$

In Stock, Qty 14

0

12

Gravely 03968053

Fork, WAW Caster
(Superseded to 04059653)

$70.99

$

In Stock, only 1 left!

0

13

Gravely 06700204

Pin, Lynch .25 x 1.25
(Superseded to 06700226)

$3.99

$

In Stock, Qty 12

0

14

Gravely 01248551

Strap, Frame Reinforcing

$65.99

$

Usually ships in 4-12 days

0

15

Gravely 05959400

Bolt, Hex .38-16 x .75
(Superseded to 05901702)

$1.99

$

In Stock, Qty 11

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0
