911408 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB (SN: 000101 - 002000) Electrical System Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB

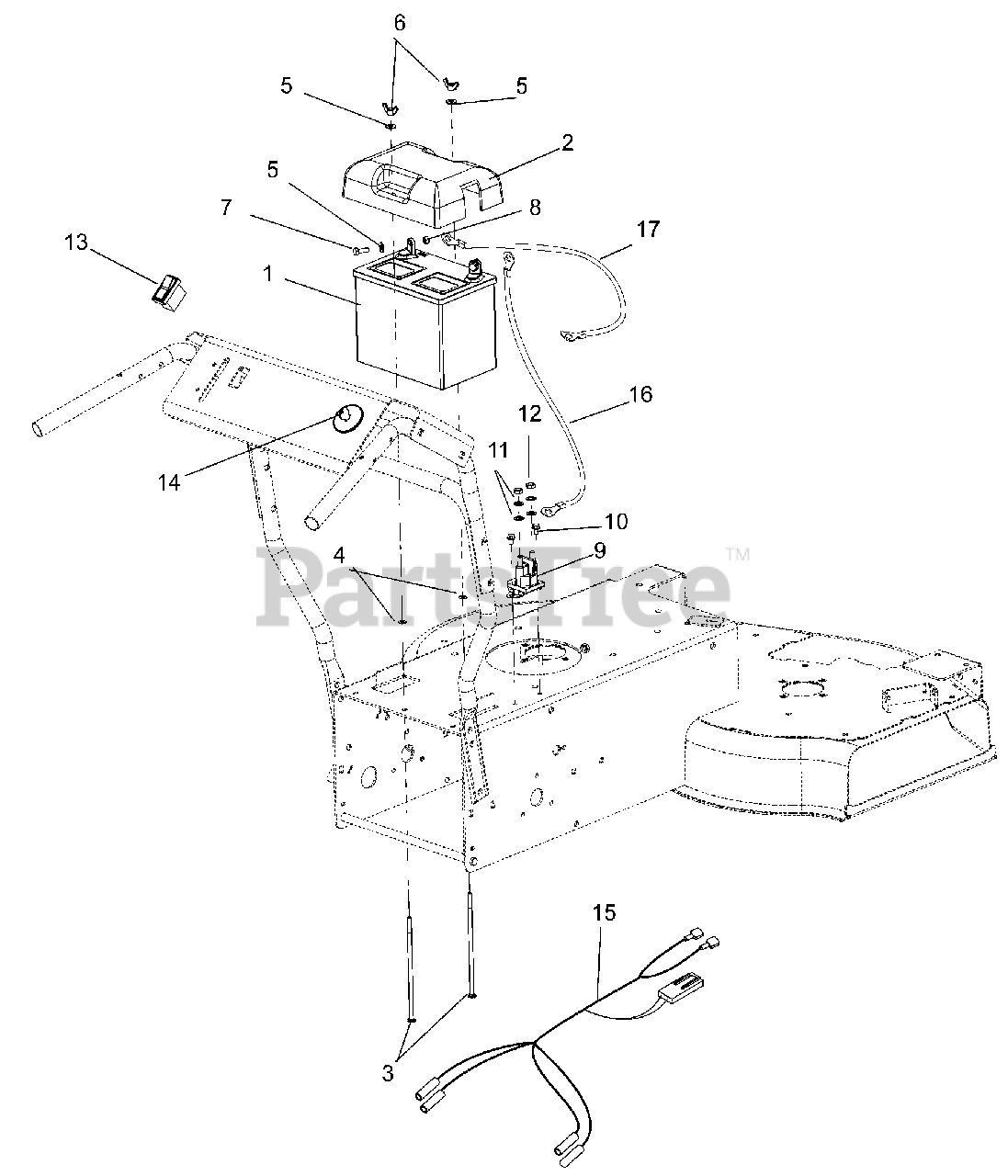

Electrical System Parts Diagram

  • Title

1

Gravely 03292500

Battery, SLI U1B-165

$

$

Not available

2

Gravely 04912900

Cover, Battery

$11.99

$

In Stock, only 2 left!

0

3

Gravely 06220400

Bolt, Round Head Square Neck .25-20 x 7.00 Grade 2
(Superseded to 06200229)

$5.49

$

In Stock, only 2 left!

0

4

Gravely 07027600

Nut, Push .25 x .50 O.D.

$2.49

$

In Stock, only 4 left!

0

5

Gravely 06437300

Washer, Flat Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

6

Gravely 06537500

Nut, Locking Wing .250-20
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

7

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$1.49

$

In Stock, Qty 5

0

8

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 00696900

Solenoid, HP RTV
(Superseded to 59223400)

$63.99

$

In Stock, Qty 5

0

10

Gravely 07411600

Screw, Tapping Hex Washer Head .250-20 x .37
(Superseded to 07400125)

$1.49

$

In Stock, Qty 6

0

11

Gravely 06310500

Washer, Internal Lock .31

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$1.49

$

In Stock, Qty 5

0

13

Gravely 03272600

Switch, Rocker
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 03927000

Switch, Ignition Key, 3 Position

$10.99

$

In Stock, only 3 left!

0

15

Gravely 03263001

Harness, Wiring

$67.99

$

Usually ships in 4-12 days

0

16

Gravely 00145900

Cable, Starter 6.75"

$

$

Not available

17

Gravely 02974600

Cable, Ground

$22.99

$

Usually ships in 4-12 days

0
