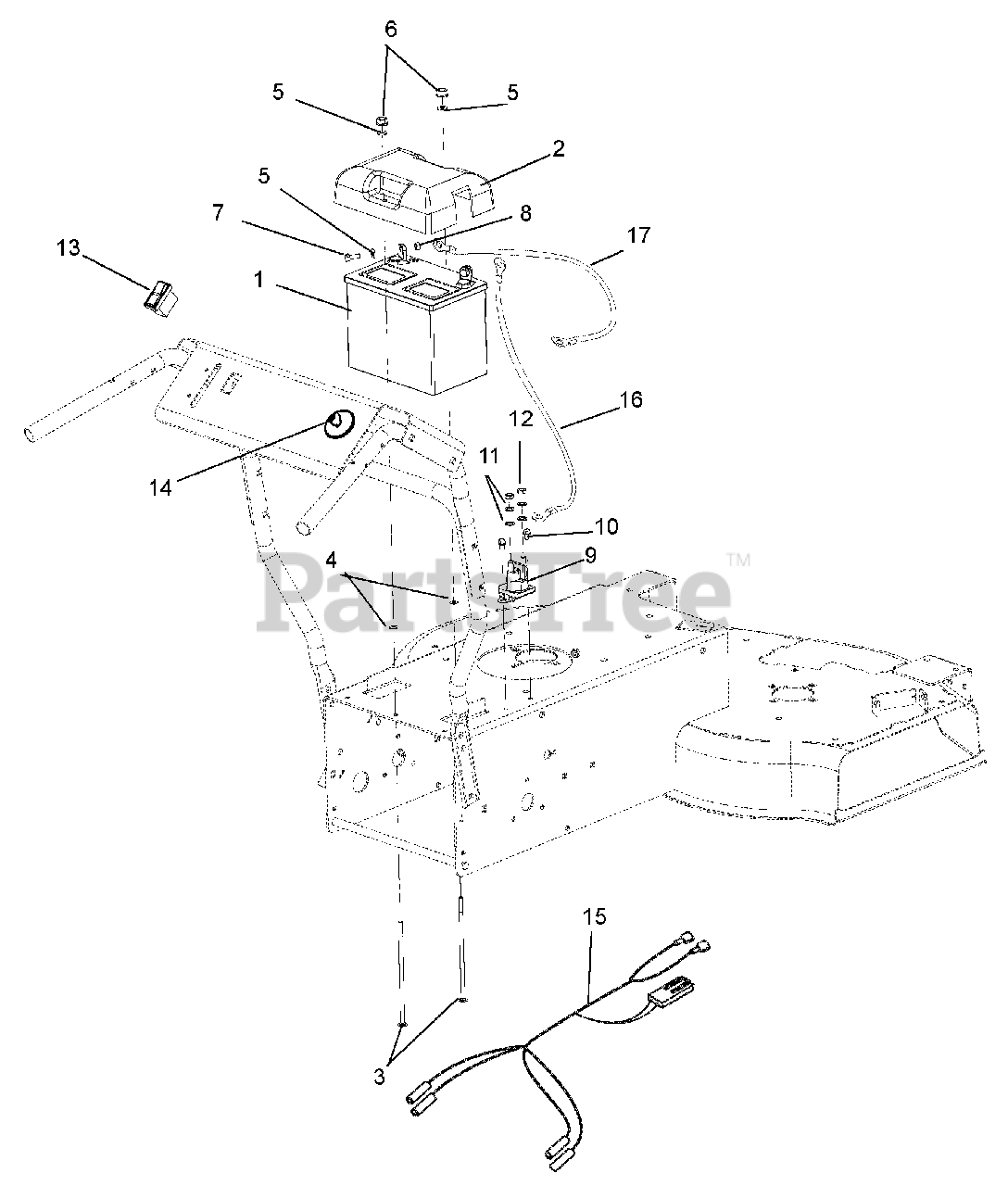

911408 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB (SN: 002001 & Above) Electrical Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB

Electrical Parts Diagram

  • Title

1

Gravely 03292500

BATTERY-SLI U1B-165

$

$

Not available

2

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

3

Gravely 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$5.49

$

In Stock, Qty 20+

0

4

Gravely 07027600

NUT-PUSH .25X.50 O.D.

$2.49

$

In Stock, Qty 10

0

5

Gravely 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

7

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

9

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

10

Gravely 07411600

@SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

12

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

13

Gravely 03272600

SWITCH-ROCKER, MOMENTARY
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

14

Gravely 03927000

KEY, 03290500 KEYSWITCH

$10.99

$

In Stock, Qty 12

0

14

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

15

Gravely 03263001

HARNESS - WAW WIRING

$67.99

$

Usually ships in 4-12 days

0

16

Gravely 00145900

STARTER CABLE 6.75"

$

$

Not available

17

Gravely 02974600

GROUND CABLE

$22.99

$

Usually ships in 4-12 days

0
