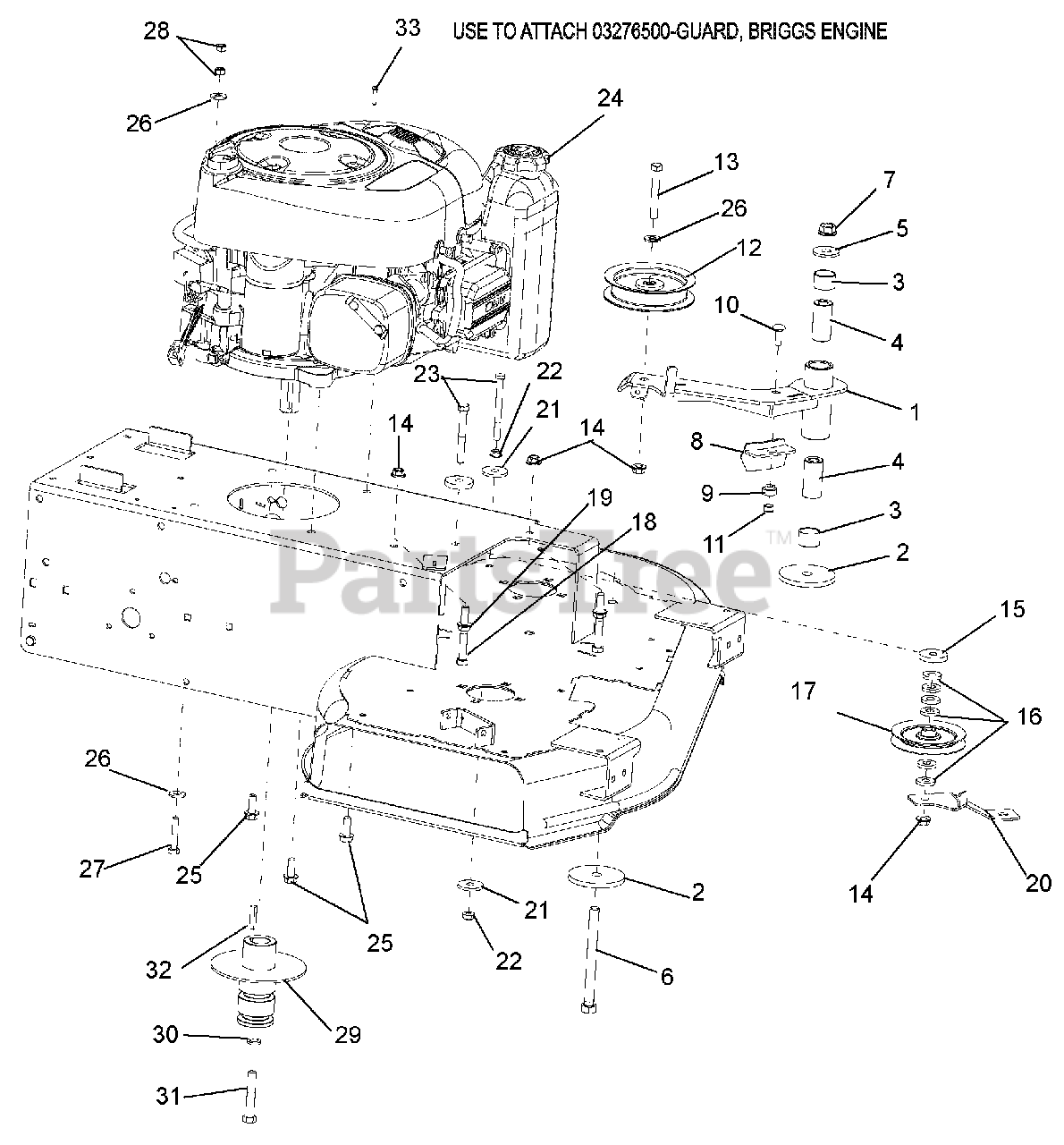

911408 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB (SN: 002001 & Above) Engine Clutch and Idler Parts Diagram

34" Wide-Area Walk-Behind Mower, 10.5hp Briggs & Stratton, CARB

Engine Clutch and Idler Parts Diagram

  • Title

1

Gravely 01286551

Weldment Arm, PTO Idler

$

$

Not available

2

Gravely 06400011

Washer, Flat .531 x 3.00 x .25

$17.99

$

Usually ships in 4-12 days

0

3

Gravely 05435800

Bearing 1.00 x 1.12 x .75

$9.49

$

In Stock, Qty 20+

0

4

Gravely 01581700

Bushing, Spacer .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06436400

Washer, Flat Steel .511 x 1.44 x .125
(Superseded to 06401022)

$2.99

$

In Stock, Qty 19

0

6

Gravely 05964100

Bolt, Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 01291200

Assembly, Brake Pad
(Superseded to 01291250)

$86.99

$

Usually ships in 4-12 days

0

9

Gravely 05500833

Bushing, Flange

$

$

Not available

10

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

11

Gravely 06530200

Nut, Locking Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

12

Gravely 07300039

Idler, Flat .38 x 4.00 x 1.06
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

13

Gravely 05961400

Bolt, Hex .38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, Qty 20+

0

14

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

16

Gravely 06443800

Washer, Flat Steel .43 x 1.00 x .160

$3.99

$

Usually ships in 4-12 days

0

17

Gravely 07311400

Idler, 4.00 x .38
(Superseded to 07300528)

$39.99

$

In Stock, only 3 left!

0

18

Gravely 05957800

Bolt, Hex .38-16 x 3.00
(Superseded to 05901814)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 01286751

Bracket, Idler Brace

$64.99

$

Usually ships in 4-12 days

0

21

Gravely 06442400

Washer, Flat Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, Qty 5

0

22

Gravely 06530400

Nut, Spin-Lock Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, only 3 left!

0

23

Gravely 05948000

Bolt, Hex .31-18 x 3.50

$2.49

$

Usually ships in 4-12 days

0

24

Gravely 08200337

Engine, 10.5 h.p. 49-State (404)

Note: (404)

$

$

Not available

Gravely 08200336

Engine, 10.5 h.p. (408)

Note: (408)

$

$

Not available

25

Gravely 07414100

Screw, Hex Washer Head Tapping .38-16 x 1.00
(Superseded to 07417500)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

27

Gravely 05957400

Bolt, Hex .31-18 x 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

28

Gravely 06529800

Nut, Locking Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 01247600

Pulley, Deck Drive
(Superseded to 07332500)

$168.99

$

Usually ships in 4-12 days

0

30

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

31

Gravely 05900036

Bolt, Hex .44-20 x 2.50

$13.99

$

In Stock, only 1 left!

0

32

Gravely 06603400

Key, Square .25 x 1.25 x .25

$3.99

$

In Stock, only 1 left!

0

33

Gravely 06100206

Screw, 8-16 x .87 Pan Head 3-Lobe

$3.99

$

Usually ships in 4-12 days

0
