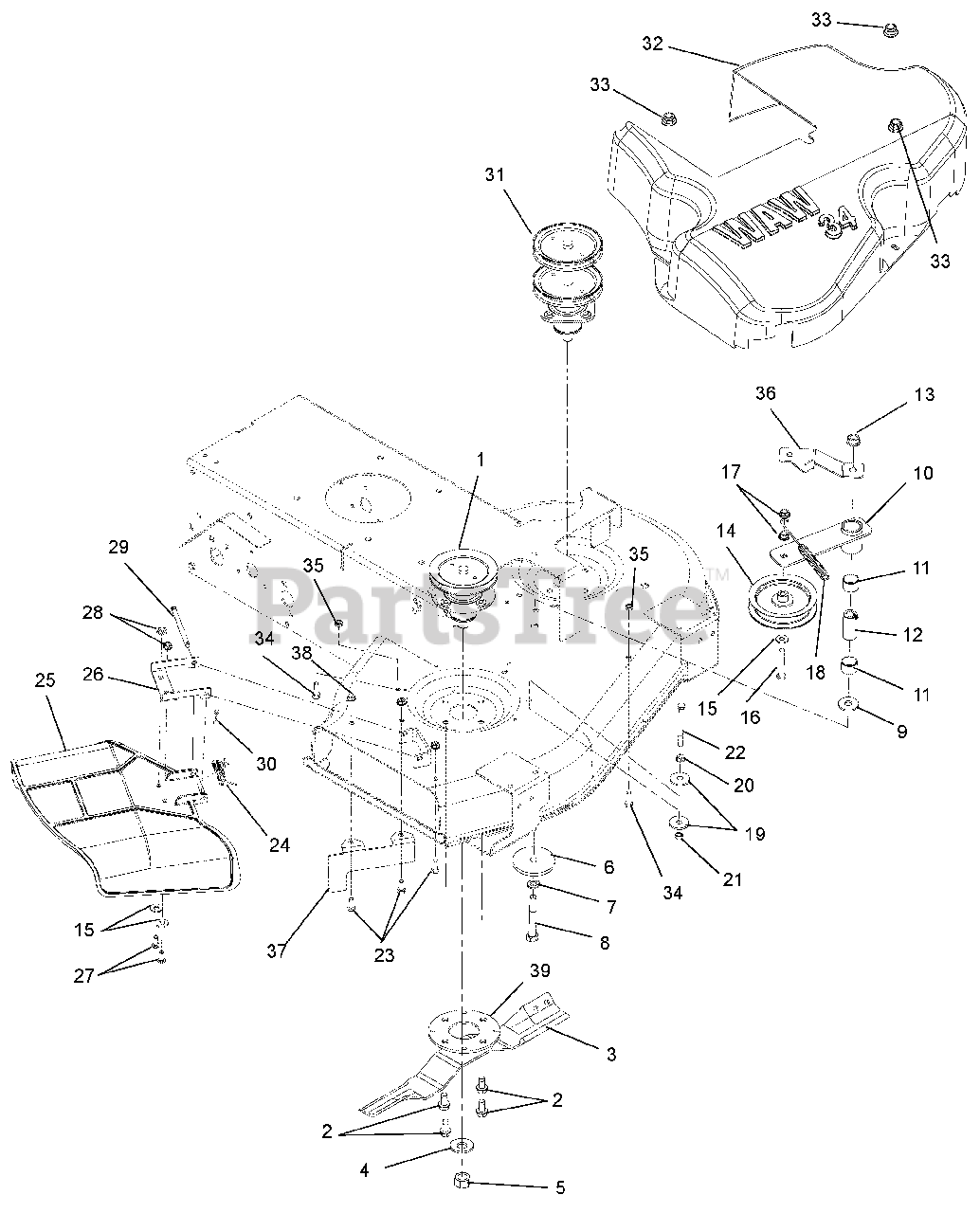

911411 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Deck Parts Diagram

34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton

Deck Parts Diagram

  • Title

1

Gravely 51519500

KIT, DECK SPINDLE ASM (34/50)

Note: (34/50)

$166.99

$

In Stock, Qty 10

0

2

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

Note: (Torque = 324 - 420 lbf-in (36.61 - 47.45 Nm))

$2.49

$

In Stock, Qty 20+

0

3

Gravely 03746500

BLADE-17.2" X .156
(Superseded to 03971900)

$25.99

$

In Stock, Qty 20+

0

4

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.99

$

In Stock, Qty 20+

0

5

Gravely 06500630

NUT-HEX .62-18 YWZC
(Superseded to 06500920)

Note: (Torque = 100-120 lbf-ft (135.6-162.7 Nm))

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06400011

WASHER, FLAT .531X3.000X.25

$19.99

$

Usually ships in 4-12 days

0

7

Gravely 06307300

WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.99

$

In Stock, only 3 left!

0

9

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 01248251

ARM, WAW DECK IDLER (WLDMNT)

$

$

Not available

11

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$11.99

$

In Stock, Qty 20+

0

12

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$7.49

$

In Stock, Qty 20+

0

13

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$52.99

$

In Stock, Qty 20+

0

15

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$5.49

$

In Stock, Qty 20+

0

17

Gravely 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 08334900

SPRING - ENGINE - TRANS.

$42.99

$

In Stock, only 4 left!

0

19

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.99

$

In Stock, Qty 17

0

20

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$2.49

$

In Stock, Qty 20+

0

21

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

22

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$3.49

$

In Stock, only 2 left!

0

23

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$2.49

$

In Stock, Qty 20+

0

24

Gravely 01258100

SPRING, TORSION

$10.99

$

In Stock, Qty 6

0

25

Gravely 03994300

CHUTE, SIDE DISCHARGE

$60.99

$

In Stock, Qty 7

0

26

Gravely 00662651

CHUTE REINFORCEMENT

$23.99

$

In Stock, only 2 left!

0

27

Gravely 05920900

SCR-SKH .31-18X.75 BTNHD YWZC

$5.49

$

In Stock, Qty 10

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

29

Gravely 06800002

PIN, 5/16 X 3.88"

$10.99

$

In Stock, only 2 left!

0

30

Gravely 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 51112300

KIT, WAW DECK INPUT PULLEY

$145.99

$

Usually ships in 4-12 days

0

32

Gravely 01246900

COVER, WAW BELT

$217.99

$

Usually ships in 4-12 days

0

33

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

34

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

35

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.99

$

In Stock, Qty 11

0

36

Gravely 01286751

BRKT-IDLER BRACE

$68.99

$

Usually ships in 4-12 days

0

37

Gravely 03779200

BRKT-BAFFLE, DISCHARGE 34"

$

$

Not available

38

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

39

Gravely 03839051

PLATE-REINF, SPINDLE

$29.99

$

Usually ships in 4-12 days
