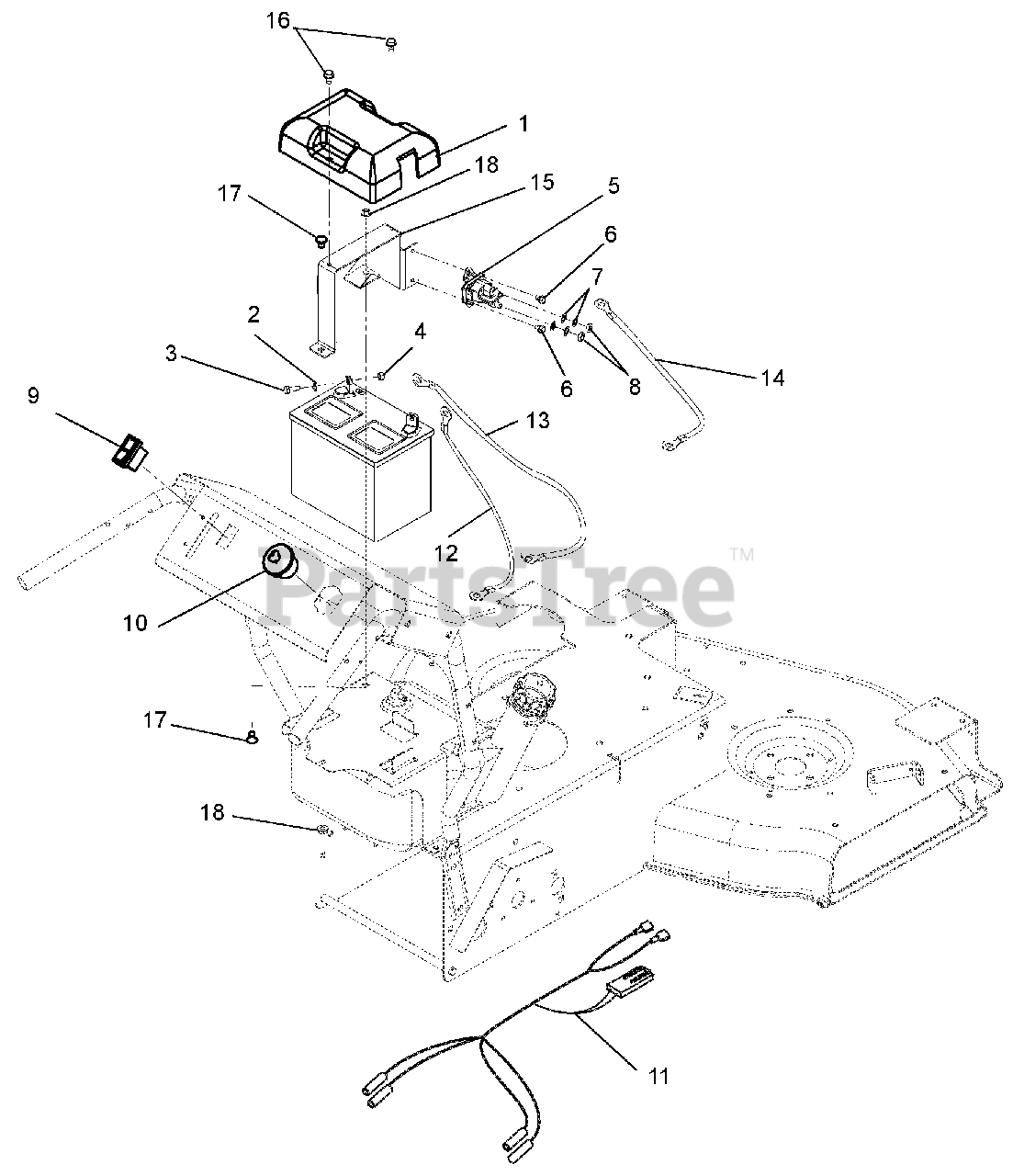

911411 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton

Electrical Parts Diagram

  • Title

1

Gravely 04912900

Cover, Battery

$11.99

$

In Stock, Qty 8

0

2

Gravely 06437300

Washer, Flast Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05946800

Bolt, Hex .25-20 x .75
(Superseded to 05901716)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06509200

Nut, KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 03679000

Solenoid
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 07411600

Screw, Tapping Hex Washer Head .250-20 x .37
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06310500

Washer, Internal Lock .31

$0.99

$

In Stock, Qty 10

0

8

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$1.49

$

In Stock, Qty 5

0

9

Gravely 03272600

Switch, Rocker
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

10

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

10

Gravely 04986400

Key, Ignition

Note: Not Shown

$9.49

$

In Stock, Qty 7

0

Gravely 03927000

Replacement Key

$10.99

$

In Stock, only 2 left!

0

11

Gravely 03372600

Harness, Wiring

$

$

Not available

12

Gravely 00187500

Cable, Positive Battery 18.50"

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 00187200

Cable, Ground 22.0"

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 00187400

Cable 6.75"

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 03986051

Bracket, Battery Mount
(Superseded to 04270851)

$85.99

$

In Stock, only 1 left!

0

16

Gravely 07411500

Screw, Tapping .31-18 x .50 Hex Washer Head
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06222000

Bolt, Round Head Square Neck .31-18 x .50 Grade 5
(Superseded to 06200406)

$3.49

$

In Stock, Qty 20+

0

18

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
