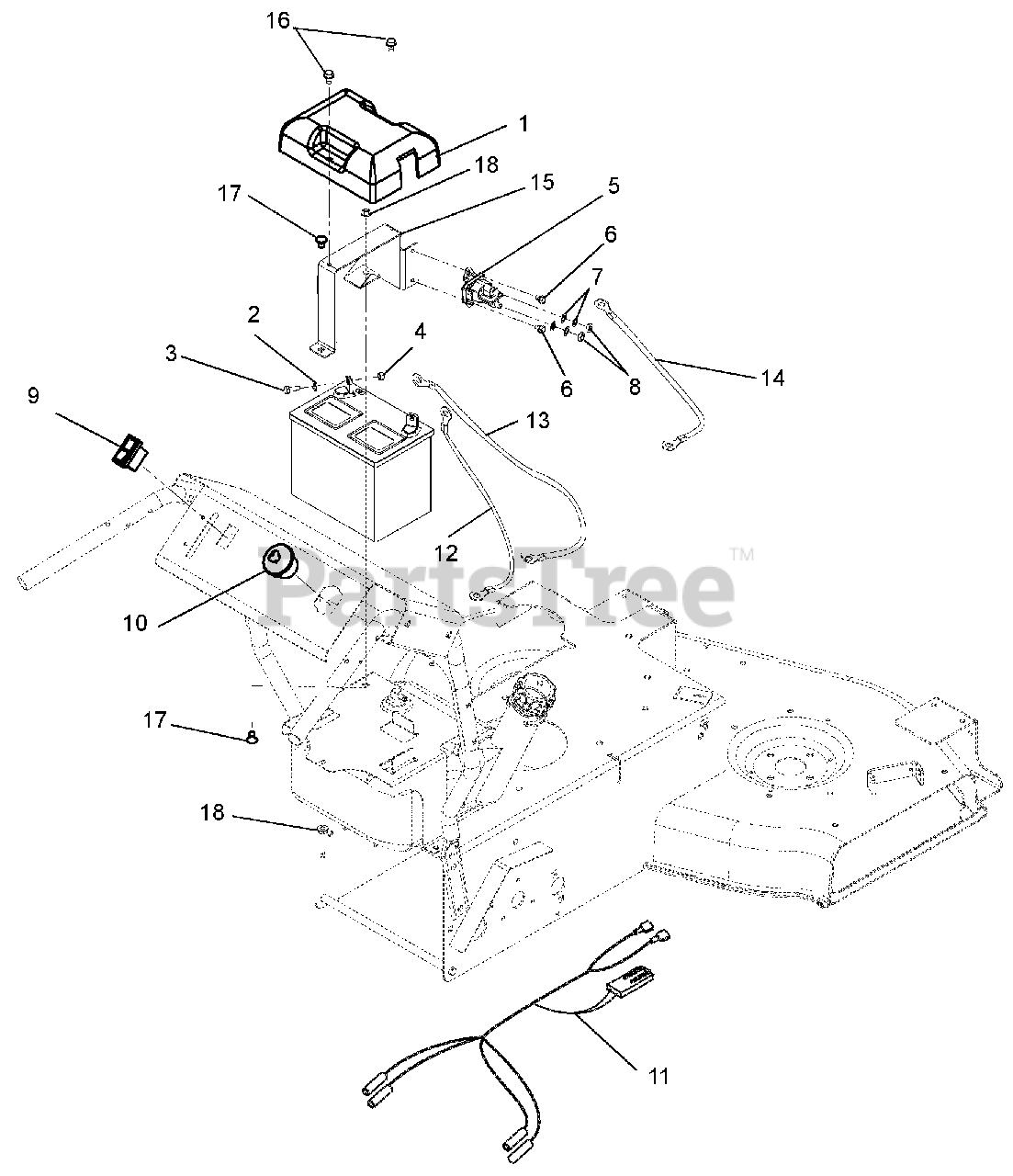

911411 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Electrical Parts Diagram

34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton

Electrical Parts Diagram

  • Title

1

Gravely 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

2

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

4

Gravely 06509200

NUT-KEPS .250-20
(Superseded to 06500921)

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$63.99

$

In Stock, Qty 20+

0

6

Gravely 07411600

SCR-TAP .25-20X.37 HWH YWZ TR
(Superseded to 07400125)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, Qty 8

0

8

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

9

Gravely 03272600

SWITCH-ROCKER, MOMENTARY
(Superseded to 03374200)

$19.99

$

Usually ships in 4-12 days

0

10

Gravely 03290500

KEYSWITCH-IGNITION 3 POS

$18.99

$

In Stock, Qty 20+

0

10

Gravely 04986400

KEY, IGNITION

Note: Not Shown

$9.49

$

In Stock, Qty 20+

0

Gravely 03927000

KEY, 03290500 KEYSWITCH

$10.99

$

In Stock, Qty 12

0

11

Gravely 03372600

HARNESS, WAW WIRING

$

$

Not available

12

Gravely 00187500

CABLE, POS. BAT 18.50"

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 00187200

CABLE, GROUND 22.0"

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 00187400

CABLE, POS. BAT 6.75"

$6.49

$

Usually ships in 4-12 days

0

15

Gravely 03986051

BRKT, BATTERY MOUNT
(Superseded to 04270851)

$85.99

$

Usually ships in 4-12 days

0

16

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$3.49

$

In Stock, only 4 left!

0

18

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0
