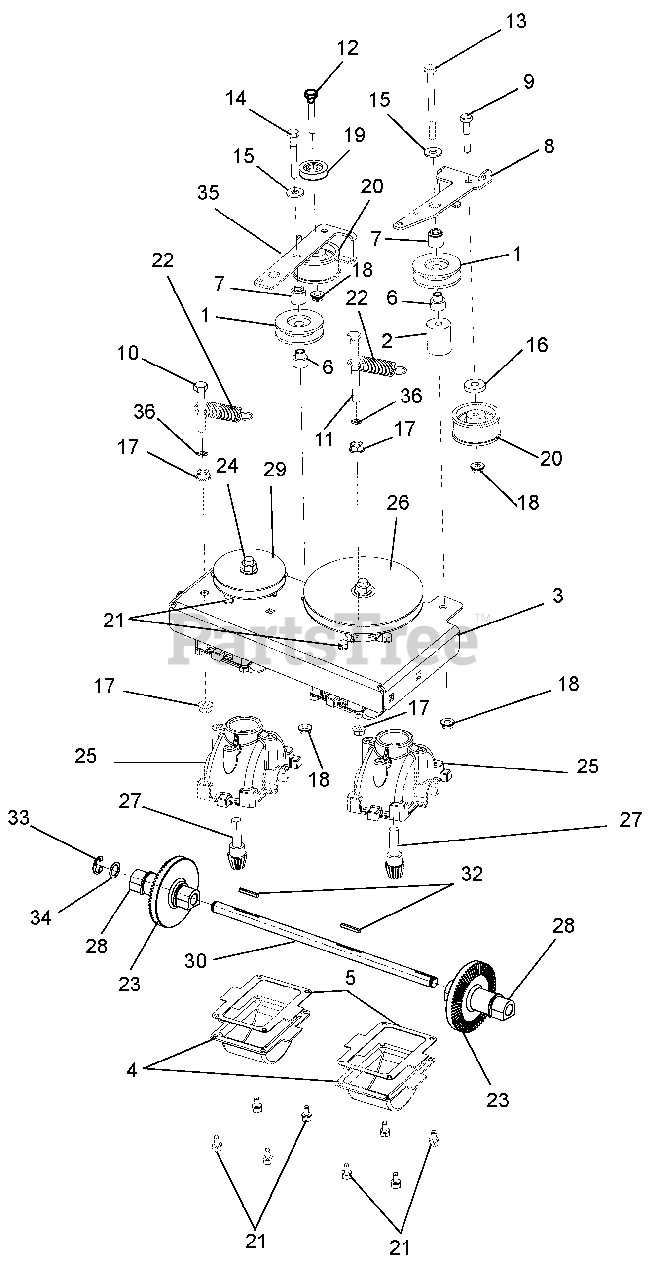

911411 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton (SN: 000101 & Above) Transmission Parts Diagram

34" Wide-Area Walk-Behind Mower, 13.5hp Briggs & Stratton

Transmission Parts Diagram

  • Title

1

Gravely 00444400

Idler, 3L Front Side .38 x 1.875

$23.99

$

In Stock, only 1 left!

0

2

Gravely 01247300

Spacer, Reverse Idler

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 03948351

Plate, Transmission Mount

$

$

Not available

4

Gravely 01255251

Sump, Gearbox

$40.99

$

Usually ships in 4-12 days

0

5

Gravely 01256400

Gasket, Transmission

$15.99

$

Usually ships in 4-12 days

0

6

Gravely 01258900

Spacer, Idler Pulley

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 01259000

Spacer .390 x .75 x .189

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 03279300

Bracket, Transmission Idler Arm

$23.99

$

Usually ships in 4-12 days

0

9

Gravely 05952500

Bolt, Hex .25-20 x 1.50
(Superseded to 05901739)

$1.99

$

In Stock, only 4 left!

0

10

Gravely 05957200

Bolt, Hex .31-18 x 2.00
(Superseded to 05901805)

$1.99

$

In Stock, Qty 12

0

11

Gravely 05948000

Bolt, Hex .31-18 x 3.50 Grade 5

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 05964700

Bolt, Hex .25-20 x 1.75
(Superseded to 05901935)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 05965300

Bolt, Hex .25-20 x 3.25

$2.49

$

In Stock, only 4 left!

0

14

Gravely 05967100

Bolt, Hex .25-20 x 2.00
(Superseded to 05901740)

$2.99

$

Usually ships in 4-12 days

0

15

Gravely 06435800

Washer, Flat Steel .312 x .734 x .065
(Superseded to 06401124)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, Qty 20+

0

17

Gravely 06530400

Nut, Spin Lock Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 06543500

Nut, Locking Top Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 07300012

Pulley, Cable

$5.49

$

In Stock, only 2 left!

0

20

Gravely 07300435

Pulley, Idler .25 x 1.87 x .97

$21.99

$

In Stock, only 3 left!

0

21

Gravely 07400033

Screw, Tapping 10-24 x .375 Pre-Coat
(Superseded to 07400137)

$3.99

$

In Stock, Qty 17

0

22

Gravely 08300435

Spring, Tension .063 x .625 x 2.50

$9.99

$

Usually ships in 4-12 days

0

23

Gravely 01290400

Gear, Bevel

$56.99

$

Usually ships in 4-12 days

0

24

Gravely 06542000

Nut, Top-Locking Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 01255000

Housing, WAW Gearbox

$68.99

$

Usually ships in 4-12 days

0

26

Gravely 01247500

Pulley, Reverse Input

$70.99

$

In Stock, only 1 left!

0

27

Gravely 01255500

Pinion, Gearbox Input

$65.99

$

Usually ships in 4-12 days

0

28

Gravely 01255300

Bushing, Transmission Output Shaft

$6.49

$

Usually ships in 4-12 days

0

29

Gravely 01326500

Pulley, Transmission Input

$239.99

$

Usually ships in 4-12 days

0

30

Gravely 03294200

Shaft, Transmission Output

$

$

Not available

31

Gravely 51113600

Kit, WAW Transmission Shaft (includes 30, 32, 33 and 34)

Note: (includes 30, 32, 33 and 34)

$180.99

$

Usually ships in 4-12 days

0

32

Gravely 06600211

Key, 1/8 x 1/8 x 1.0

$2.49

$

Usually ships in 4-12 days

0

33

Gravely 05710200

Ring, Retaining - External .500 x .042

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06400015

Washer, .500 x .750 x .020 Thrust

$1.49

$

In Stock, Qty 20+

0

35

Gravely 01326600

Arm, Forward Idler

$

$

Not available

36

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0
