911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Controls Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

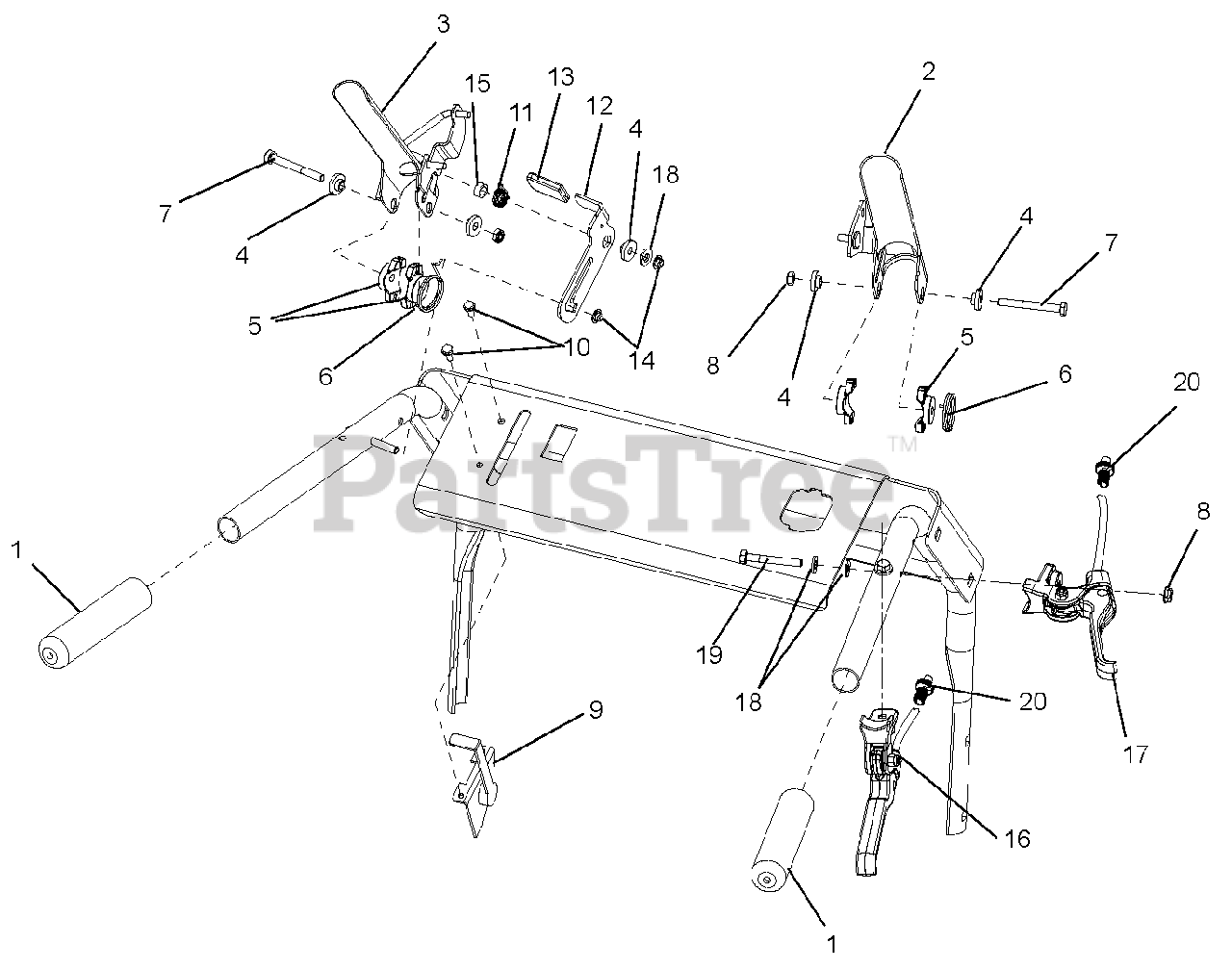

Controls Parts Diagram

  • Title

1

Gravely 07518700

Grip, Handle
(Superseded to 07500239)

$3.99

$

In Stock, Qty 16

0

2

Gravely 01249251

Paddle, Pillow Brake
(Superseded to 01288751)

$47.99

$

In Stock, only 1 left!

0

3

Gravely 01288851

Weldment, Paddle Left Hand

$34.99

$

In Stock, only 1 left!

0

4

Gravely 00399300

Bushing, Flange .266 x .42 x .150 x .750

$4.49

$

Usually ships in 4-12 days

0

5

Gravely 05500040

Spacer, Handlebar

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 08300026

Spring, Torsion

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 05956700

Bolt, Hex .25-20 x 2.25
(Superseded to 05901636)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06530900

Nut, Nylon Jam .250-20

$0.99

$

In Stock, only 4 left!

0

9

Gravely 06900415

Cable, Throttle

$25.99

$

In Stock, only 2 left!

0

10

Gravely 07415800

Screw, Tapping 10-24 x .50 Hex Washer Head
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

11

Gravely 08300014

Spring, Torsion

$1.49

$

In Stock, Qty 7

0

12

Gravely 03283000

Bracket - Lever, Interlock

$17.99

$

Usually ships in 4-12 days

0

13

Gravely 04928700

Grip, Thumb Latch

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 02215300

Nut, Push .25

$2.49

$

In Stock, Qty 6

0

15

Gravely 01252600

Tube, Spacer .33 x .50

$

$

Not available

16

Gravely 06900329

Lever, Control With Cable Forward

$43.99

$

In Stock, only 2 left!

0

17

Gravely 06900330

Lever, Control With Cable Reverse

$43.99

$

In Stock, only 3 left!

0

18

Gravely 06437300

Washer, Flat Steel .281 x .62 x 0.65
(Superseded to 06401001)

$0.99

$

In Stock, Qty 10

0

19

Gravely 05967100

Bolt, Hex .25-20 x 2.00
(Superseded to 05901740)

$2.99

$

In Stock, only 1 left!

0

20

Gravely 06900401

Cable Adjuster, Steel (Service Only)

Note: (Service Only)

$6.49

$

Usually ships in 4-12 days

0
