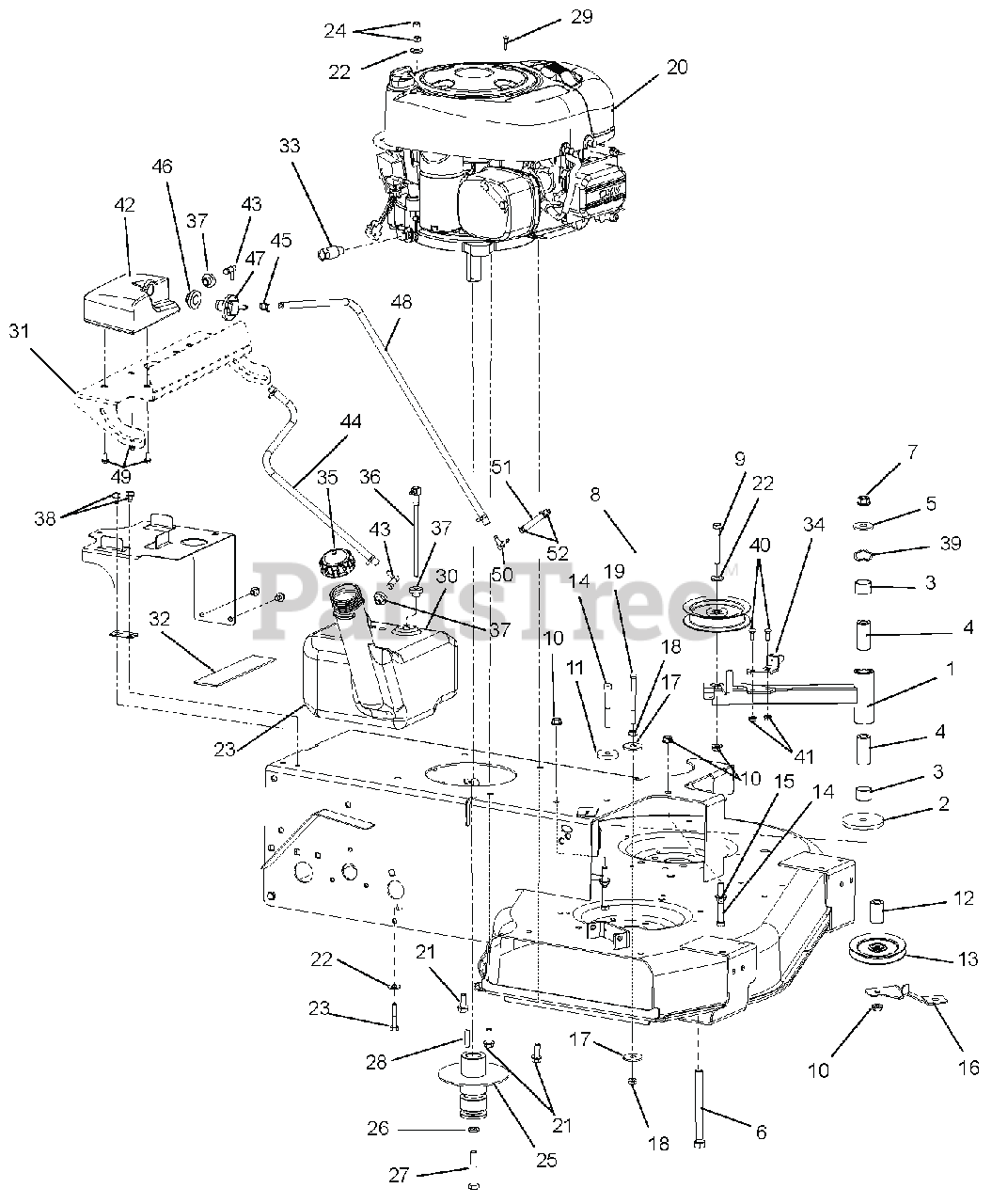

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Engine, Clutch and Idler Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

Engine, Clutch and Idler Parts Diagram

  • Title

1

Gravely 03938951

WLDMT, PTO IDLER ARM

$

$

Not available

2

Gravely 06400011

WASHER, FLAT .531X3.000X.25

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

4

Gravely 01581700

BSHG, SPCR .502X.997X2.03 PM

$6.99

$

In Stock, Qty 20+

0

5

Gravely 06436400

WSHR-FL-STL.511X1.441X.125 YWZ
(Superseded to 06401022)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$7.49

$

In Stock, Qty 12

0

7

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

9

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

12

Gravely 05501003

SPACER, .437X1.0X1.23

$33.99

$

Usually ships in 4-12 days

0

13

Gravely 07300528

SHV, .38"ID X 4.00"OD V-IDLER

$40.99

$

In Stock, only 2 left!

0

14

Gravely 05957800

BLT-HEX .38-16X3.00 GR5 YWZC
(Superseded to 05901814)

$2.99

$

In Stock, Qty 13

0

15

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

16

Gravely 01286751

BRKT-IDLER BRACE

$65.99

$

Usually ships in 4-12 days

0

17

Gravely 06442400

WSHR-FL-STL .406X1.375X.135 YZ
(Superseded to 06401121)

$6.49

$

In Stock, Qty 20+

0

18

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 05948000

BLT-HEX .31-18X3.50 GR5 YWZC

$2.99

$

In Stock, only 2 left!

0

20

Gravely 08200620

ENGINE, B&S 14.5 POWERBUILT

$

$

Not available

21

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (Torque = 374 - 562 lbf-in (42.26 - 63.5 Nm))

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 07332500

PULLEY, PRO-GROUND DRIVE

$197.99

$

Usually ships in 4-12 days

0

26

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 05900036

BLT-HEX .44-20X2.50 G5 YZ EP80

Note: (Torque = 394 - 590 lbf-in (44.52 - 66.66 Nm))

$14.99

$

In Stock, only 1 left!

0

28

Gravely 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

29

Gravely 06100206

SCREW, 8-16X.87 PHPAN 3 LOBE

Note: (Use to attach 03276500 Engine Guard - Not Shown)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 03965100

TANK, FUEL (BLACK)

Note: (Serials 101 - 2499)

$

$

Not available

Gravely 04191900

TANK, ZOOM/WAW NON-PERM. FUEL
(Superseded to 05244700)

Note: (Serials 2500 and up)

$166.99

$

In Stock, only 2 left!

0

31

Gravely 03985851

BRKT, GAS TANK MOUNT

Note: (Serials 2500 and up)

$92.99

$

Usually ships in 4-12 days

0

32

Gravely 03988500

PAD, GAS TANK

$

$

Not available

33

Gravely 03943600

DRAIN, OIL

$15.99

$

In Stock, Qty 7

0

34

Gravely 03943700

ASSY, WAW WEDGE BRAKE

Note: (Serials 000101 - 011195)

$

$

Not available

Gravely 04457700

BRAKE PAD ASSY WAW
(Superseded to 51115700)

Note: (Serials 011196 - 999999)

$57.99

$

Usually ships in 4-12 days

0

35

Gravely 01538400

FUEL CAP

Note: (Serials 101 - 2499)

$16.99

$

In Stock, Qty 19

0

36

Gravely 03798300

ASSY-PICKUP, FUEL 6.5L
(Superseded to 04333600)

$16.99

$

In Stock, Qty 19

0

37

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Serials 101 - 2499)

$3.99

$

In Stock, Qty 20+

0

Gravely 07511400

BSHG-FLG .375 X 1.062 X .625 R

Note: (Serials 2500 and up)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 07411500

SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.99

$

In Stock, Qty 20+

0

39

Gravely 09250700

WASHER - WAVE 1.09X1.37X.016

$3.99

$

In Stock, only 1 left!

0

40

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

42

Gravely 04215900

TANK, ZOOM/WAW FUEL EXP.
(Superseded to 04400000)

$50.99

$

Usually ships in 4-12 days

0

43

Gravely 04219300

FITTING, 90 DEG FUEL (PLASTIC)

Note: (Serials 2500 and up)

$6.49

$

In Stock, only 2 left!

0

44

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (Serials 2500 and up)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

Note: (Serials 2500 and up)

$3.99

$

In Stock, Qty 20+

0

46

Gravely 04082700

GROMMET, REMOTE VENT NITRILE

Note: (Serials 2500 and up)

$3.99

$

In Stock, Qty 20+

0

47

Gravely 04246000

VENT, ROLL-OVER (.25"ID HOSE)

Note: (Serials 2500 and up)

$21.99

$

In Stock, only 4 left!

0

48

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (Serials 2500 and up)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 07049500

BLT-SERHFWH .312-18X.50 YWZC

Note: (Serials 2500 and up)

$2.99

$

Usually ships in 4-12 days

0

50

Gravely 04097000

FITTING-3/16X1/4 90DEGREE VAC

Note: (Serials 2500 and up)

$15.99

$

Usually ships in 4-12 days

0

51

Gravely 03375900

HOSE, .188 LOW-PERM BULK GAS

Note: (Serials 2500 and up)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 04097700

CLAMP-HOSE, SPRING .188

Note: (Serials 2500 and up)

$1.99

$

In Stock, Qty 5

0
