911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) Handlebars Parts Diagram

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

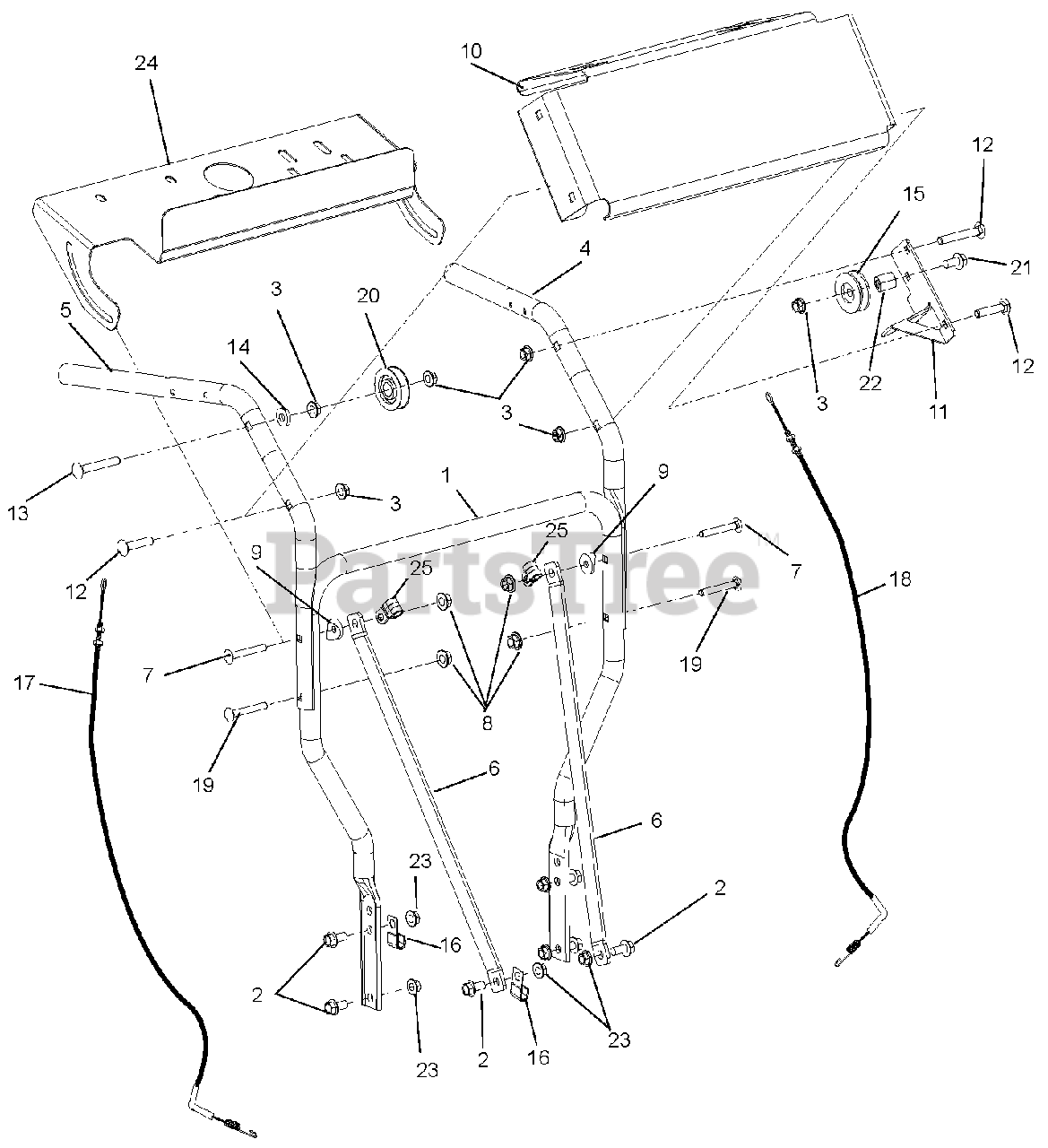

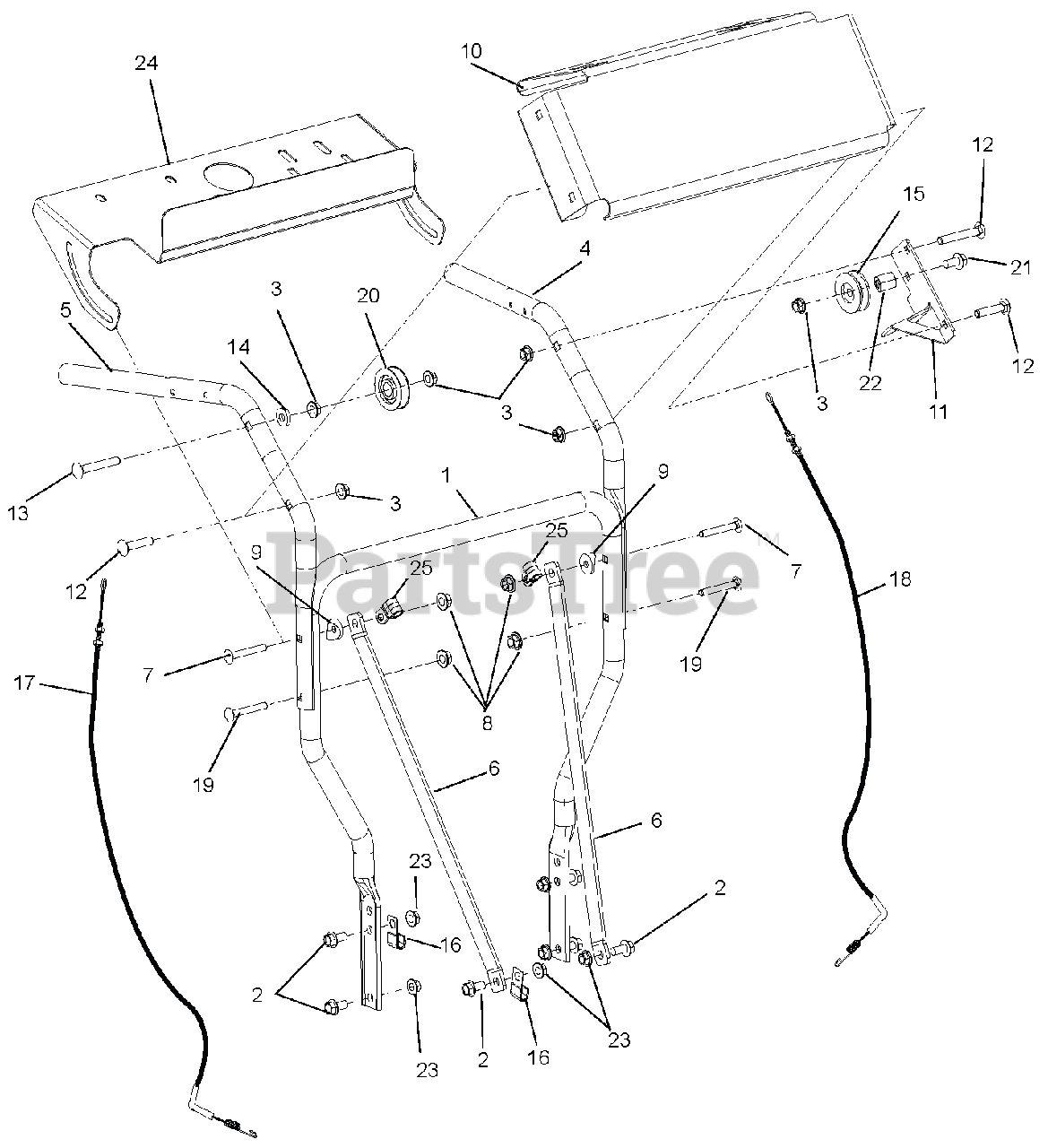

Handlebars Parts Diagram

  • Title

1

Gravely 00373251

Handlebar, Lower

$100.99

$

Usually ships in 4-12 days

0

2

Gravely 07028500

Bolt, Screw Hex Flanged Whiz Lock Head .38-16 x .75
(Superseded to 07001824)

$1.49

$

In Stock, only 1 left!

0

3

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 01252851

Handlebar, Upper Left Hand

$180.99

$

Usually ships in 4-12 days

0

5

Gravely 01246451

Handlebar, Upper Right Hand

$142.99

$

Usually ships in 4-12 days

0

6

Gravely 03264351

Bracket, Handlebar Brace

$34.99

$

Usually ships in 4-12 days

0

7

Gravely 06221600

Bolt, Round Head Square Neck .31-18 x 2.25
(Superseded to 06200408)

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 19

0

9

Gravely 07500005

Spacer, Handlebar

$1.49

$

Usually ships in 4-12 days

0

10

Gravely 03986151

Dash, WAW

$60.99

$

Usually ships in 4-12 days

0

11

Gravely 01288951

Mount, PTO Cable

$

$

Not available

12

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 06224400

Bolt, Round Head Square Neck .38-16 x 2.50
(Superseded to 06200234)

$3.99

$

In Stock, only 2 left!

0

14

Gravely 06444000

Washer, Flat Steel .406 x 1.0 x .18
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 00444400

Idle, 3L Front Side .38 x 1.875

$22.99

$

In Stock, only 1 left!

0

16

Gravely 06909400

J-Clamp

$3.49

$

In Stock, Qty 11

0

17

Gravely 06900414

Cable, P-Brake

$68.99

$

In Stock, only 2 left!

0

18

Gravely 06900413

Cable, PTO

$60.99

$

Usually ships in 4-12 days

0

19

Gravely 06220200

Bolt, Round Head Square Neck .312-18 x 1.75
(Superseded to 06200324)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 07300012

Pulley, Cable

$4.99

$

In Stock, only 4 left!

0

21

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 05501003

Spacer, .437 x 1.00 x 1.23

$31.99

$

Usually ships in 4-12 days

0

23

Gravely 06534800

Nut, Locking Center Flange .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 04218651

Bracket, Emission Component Mount (Serials 2500 and up)

Note: (Serials 2500 and up)

$49.99

$

Usually ships in 4-12 days

0

25

Gravely 06908200

Clamp, Cushioned Steel (Serials 2500 and up)

Note: (Serials 2500 and up)

$5.99

$

Usually ships in 4-12 days

0
