911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999)

34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton

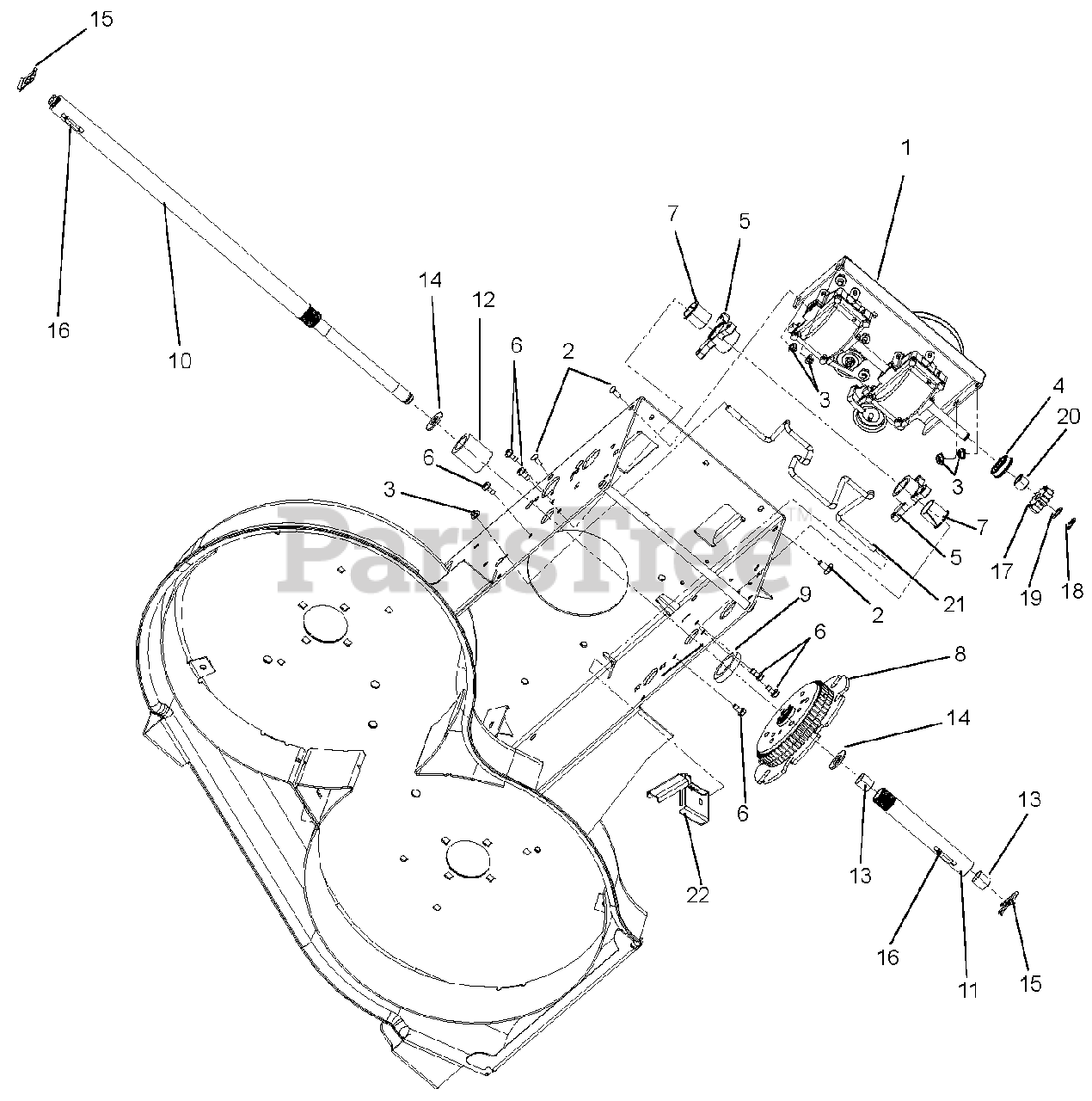

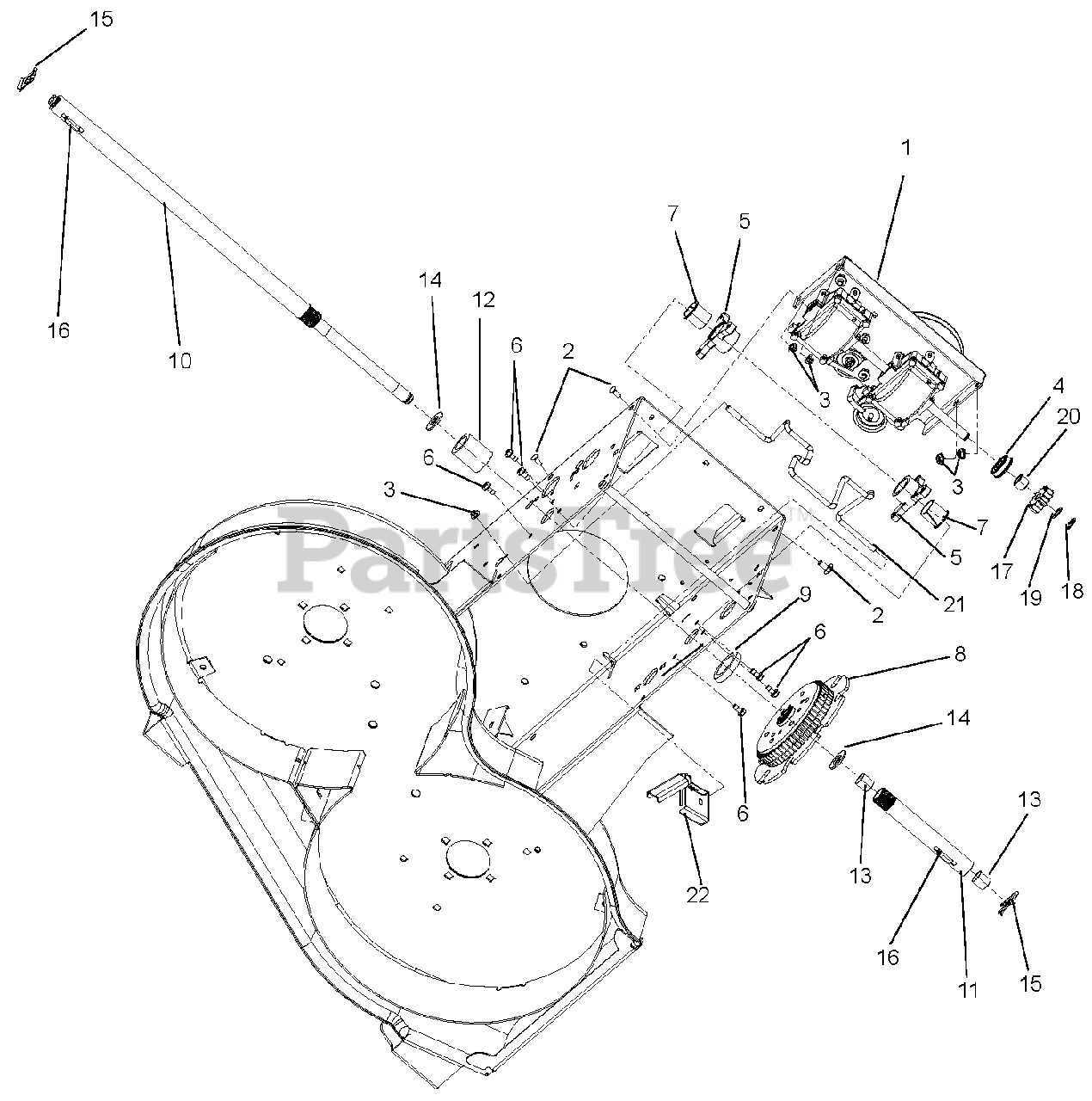

911412 (WAW 34) - Gravely 34" Wide-Area Walk-Behind Mower, 14.5hp Briggs & Stratton (SN: 000101 - 012999) > Parts Diagrams (12) > Transmission and Drive

  • Title
51115300

1

Kit, WAW Transmission

Part# 51115300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $532.19

06215700

2

Bolt, Round Head, Square Neck .31-18 x .75

Part# 06215700 (Superseded to 06200232)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06543100

3

Nut, Locking Top Flange .31-18

Part# 06543100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.62

05480000

4

Bearing, Sealed Ball .50 1.38 x .438

Part# 05480000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $16.71

00275100

5

Bushing, Rake Shaft 1"

Part# 00275100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

07412000

6

Screw, Tapping Hex Washer Head .25-20 x .50

Part# 07412000 (Superseded to 07400034)

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05500030

7

Bushing, Flange Split 1.0"

Part# 05500030

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $5.53

51113100

8

Kit, Differential

Part# 51113100

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $223.54

06400827

9

Washer, Flat Nylon 1.42 x 2.03 x .35

Part# 06400827

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

03264700

10

Shaft, Axle Long

Part# 03264700

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $111.47

03264800

11

Shaft, Axle Short

Part# 03264800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $44.61

05500827

12

Spacer 1.0 x 1.5 x 1.57

Part# 05500827

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $14.48

05500023

13

Bushing, Sleeve .706 x .764 x .75

Part# 05500023

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $3.30

06436300

14

Washer, Flat Steel 1.0 x 1.50 x .062

Part# 06436300

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

05700001

15

Clip, Snap .625 Diameter

Part# 05700001

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $8.89

06600002

16

Key, Rectifier .25 x .188 x 1.00

Part# 06600002

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.40

01247400

17

Pinion, Transmission Drive

Part# 01247400

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $22.30

05710200

18

Ring, External Retaining .500 x .042

Part# 05710200

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400015

19

Washer, Thrust .500 x .020

Part# 06400015

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 1 business day

Your price: $1.85

01254800

20

Retainer, Bearing

Part# 01254800

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.94

01288000

21

Belt Finger

Part# 01288000

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.13

04273551

22

Guide, Vertical Belt

Part# 04273551

OEM Warranty Repair Part for Gravely

Usually leaves our warehouse in 5 to 11 business days

Your price: $23.76
